• Sucker Punch is a part of PlayStation Studios (formerly Sony Interactive Entertainment Worldwide Studios)
• Peak size: 160 people (including 25 QA)
• Previous games include:
  • Sly Cooper (1, 2, & 3)
  • Infamous (1, 2, Festival of Blood, Second Son, First Light)

• Ghost of Tsushima released in July 2020 for the PlayStation 4

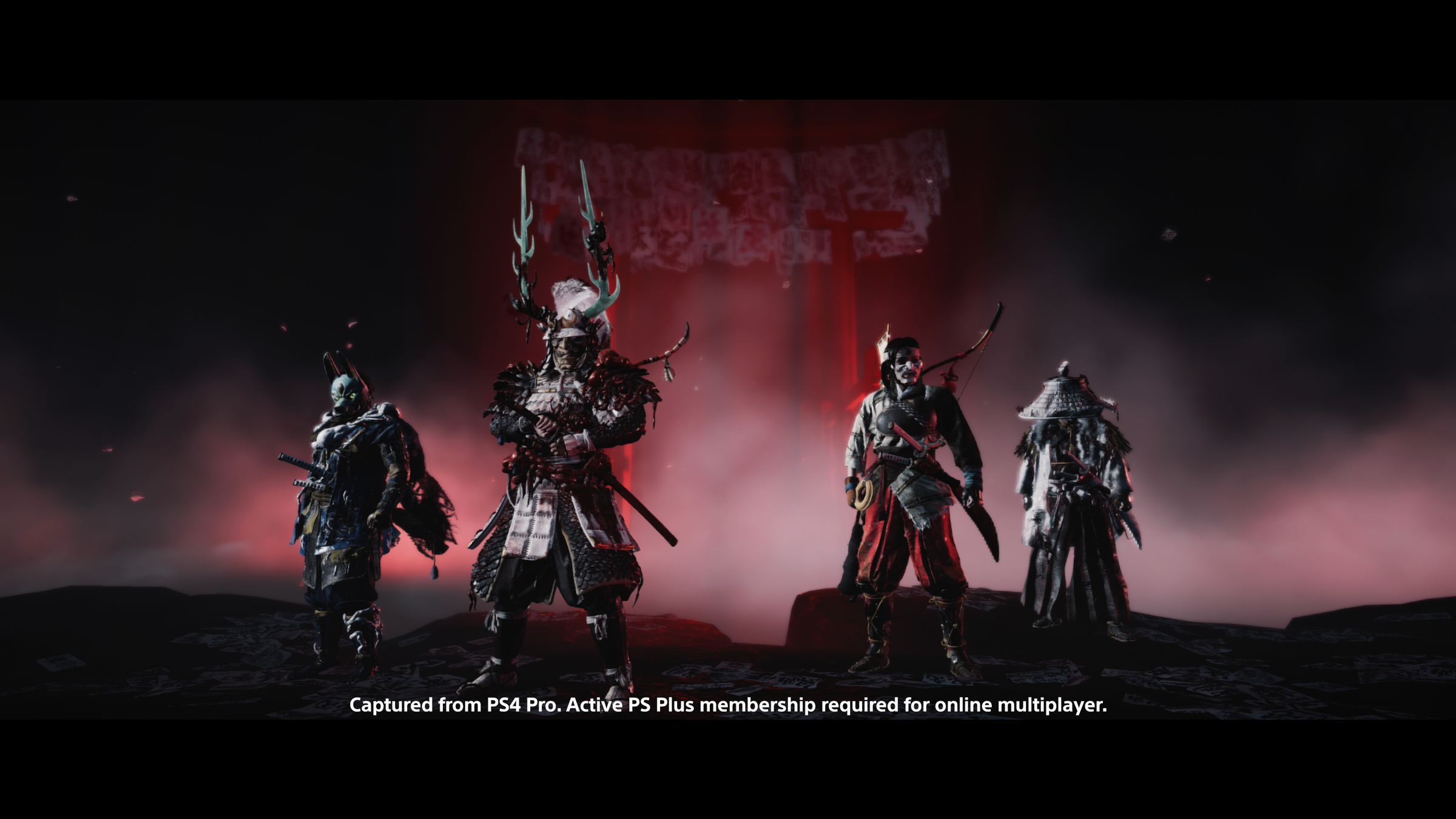

• Legends multiplayer expansion released in October 2020
  • Also added 60 FPS support for PS5

• Transport players to 1274 Japan
  • Huge open world
    • Beautiful, living, breathing
  • Continuous time of day with dynamic weather

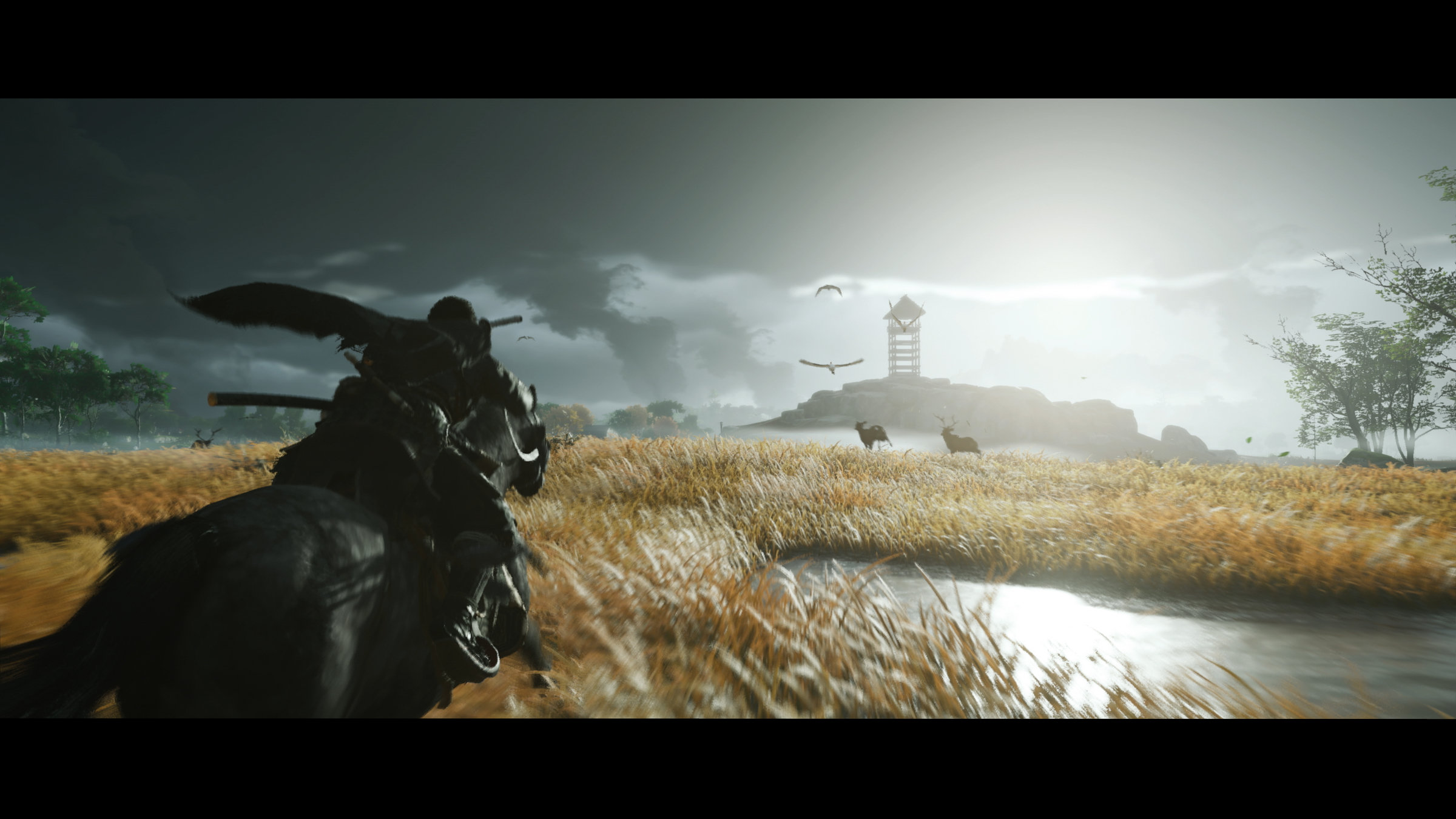

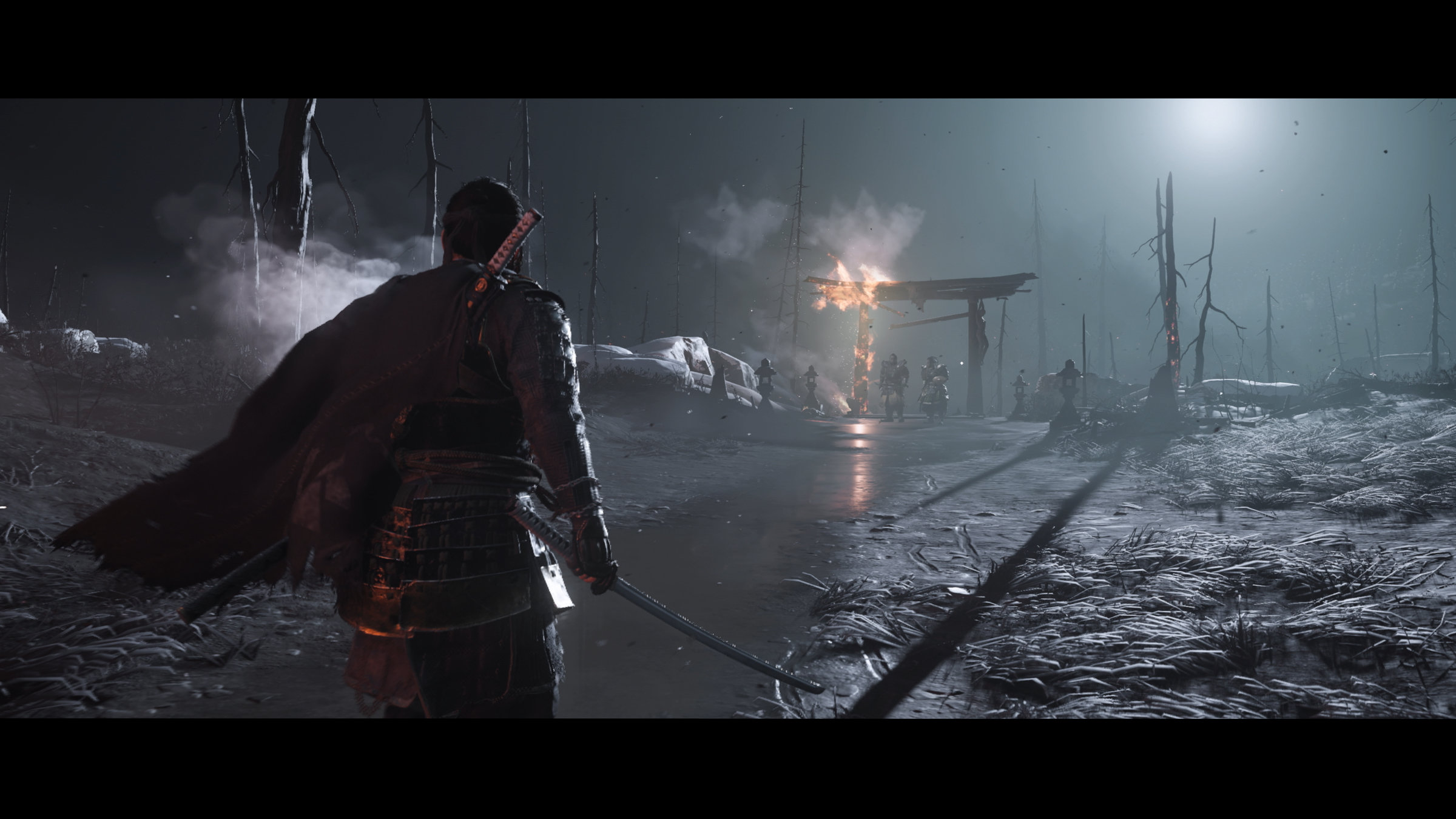

• Recreate the style of classic samurai cinema

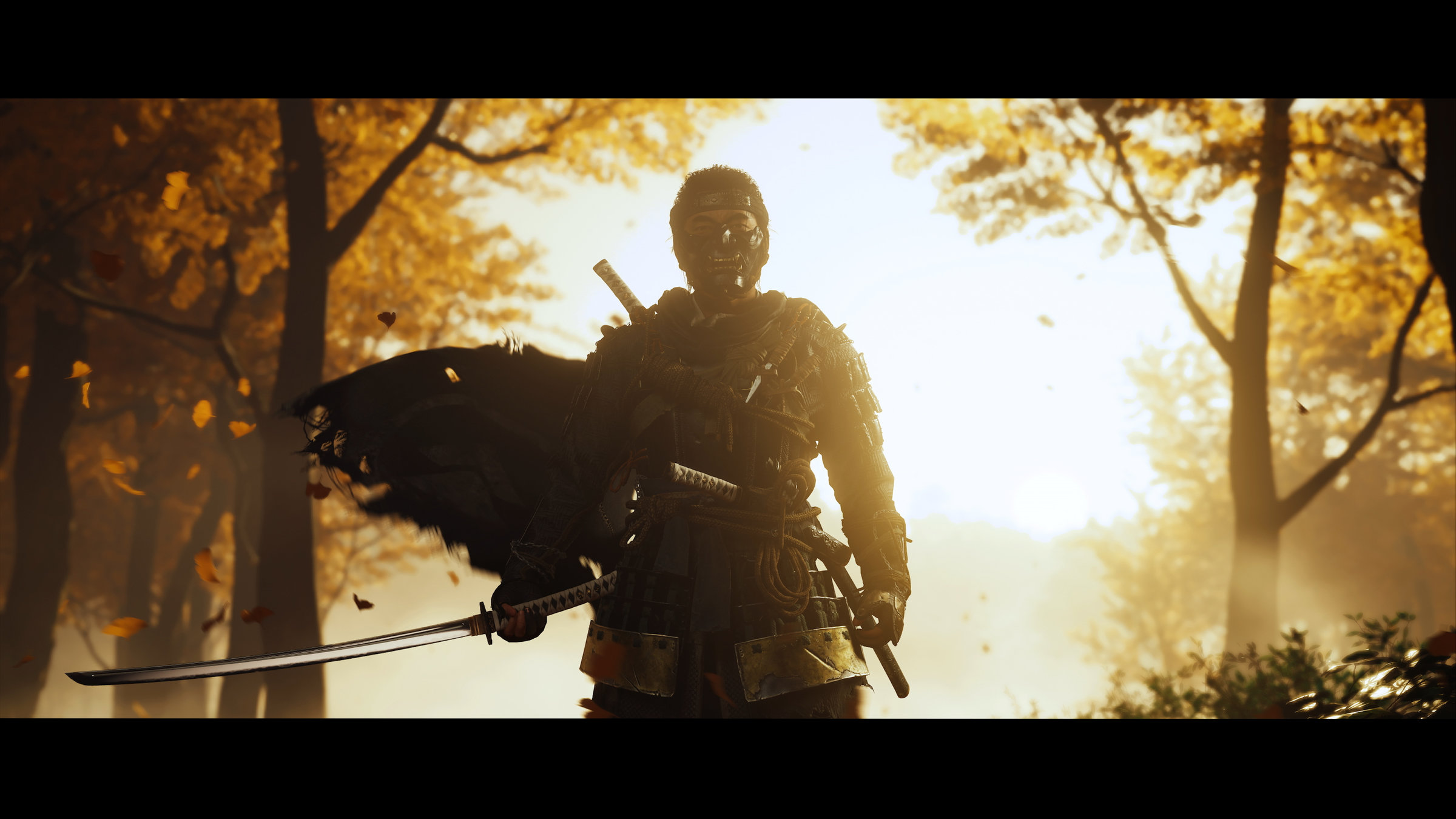

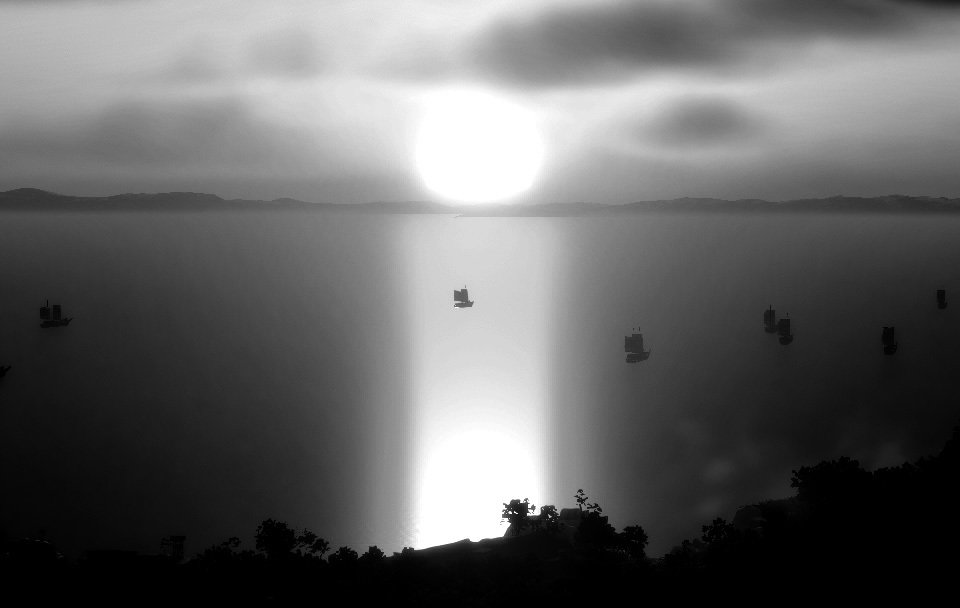

  • “Kurosawa Mode”

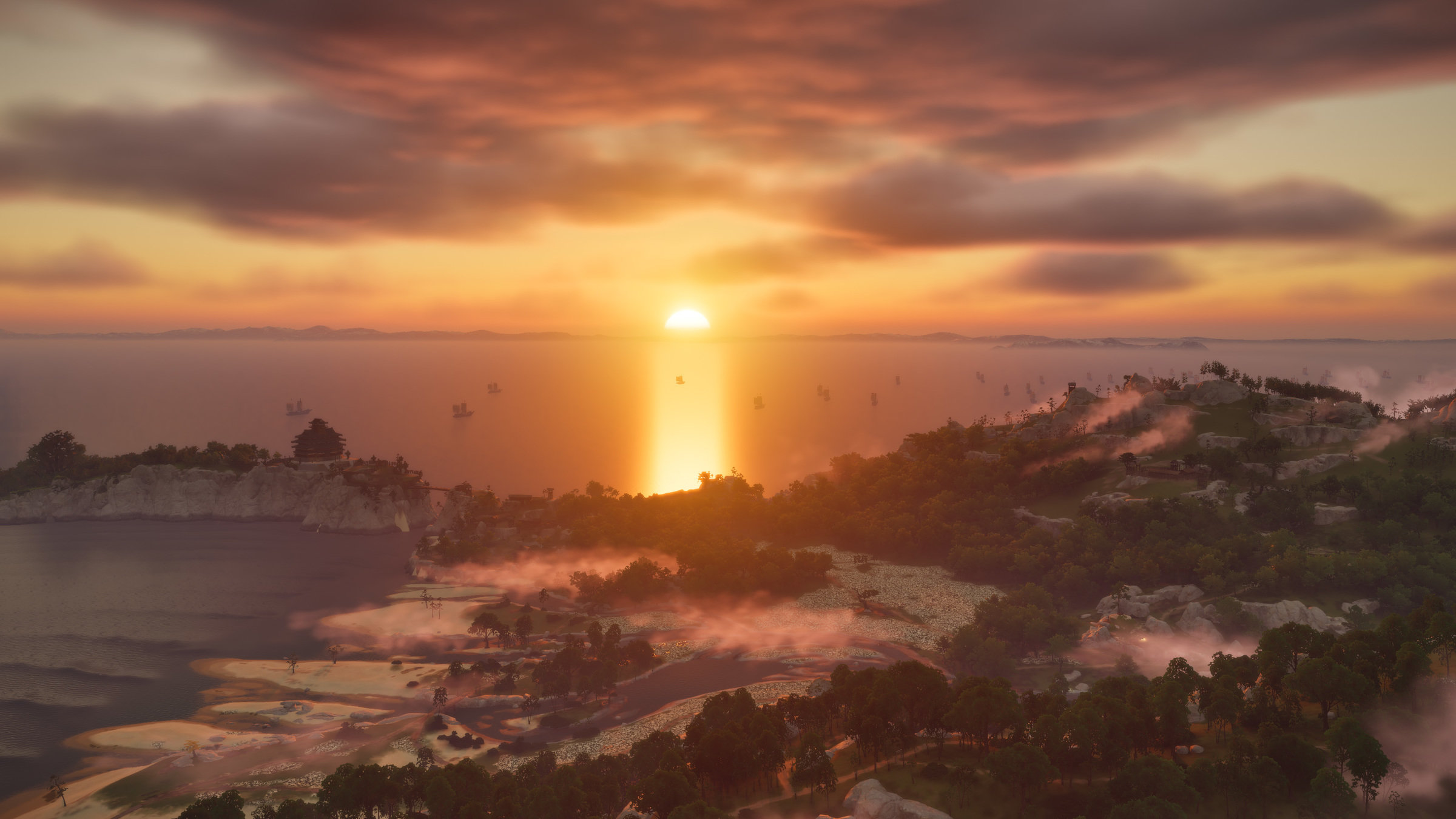

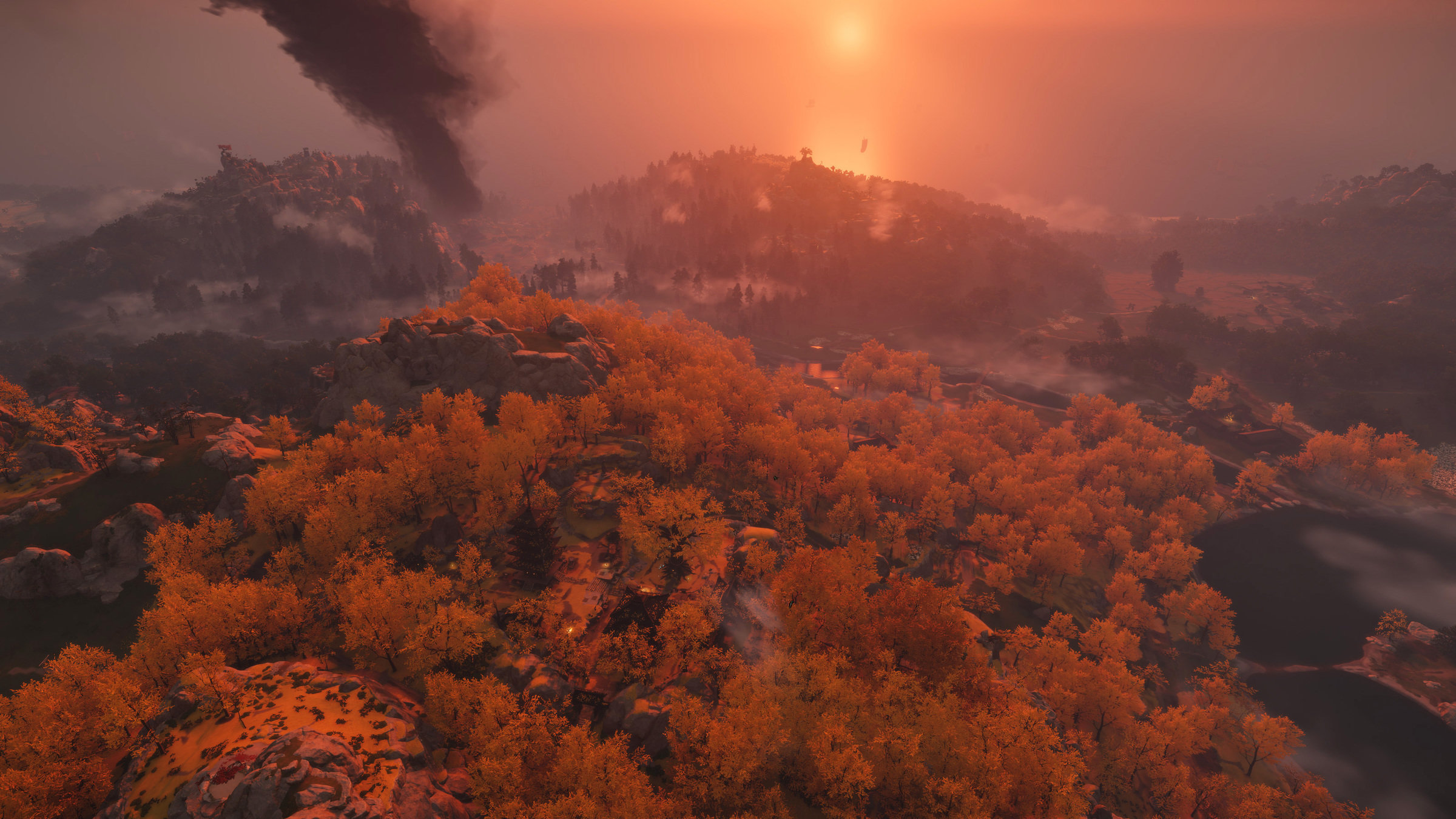

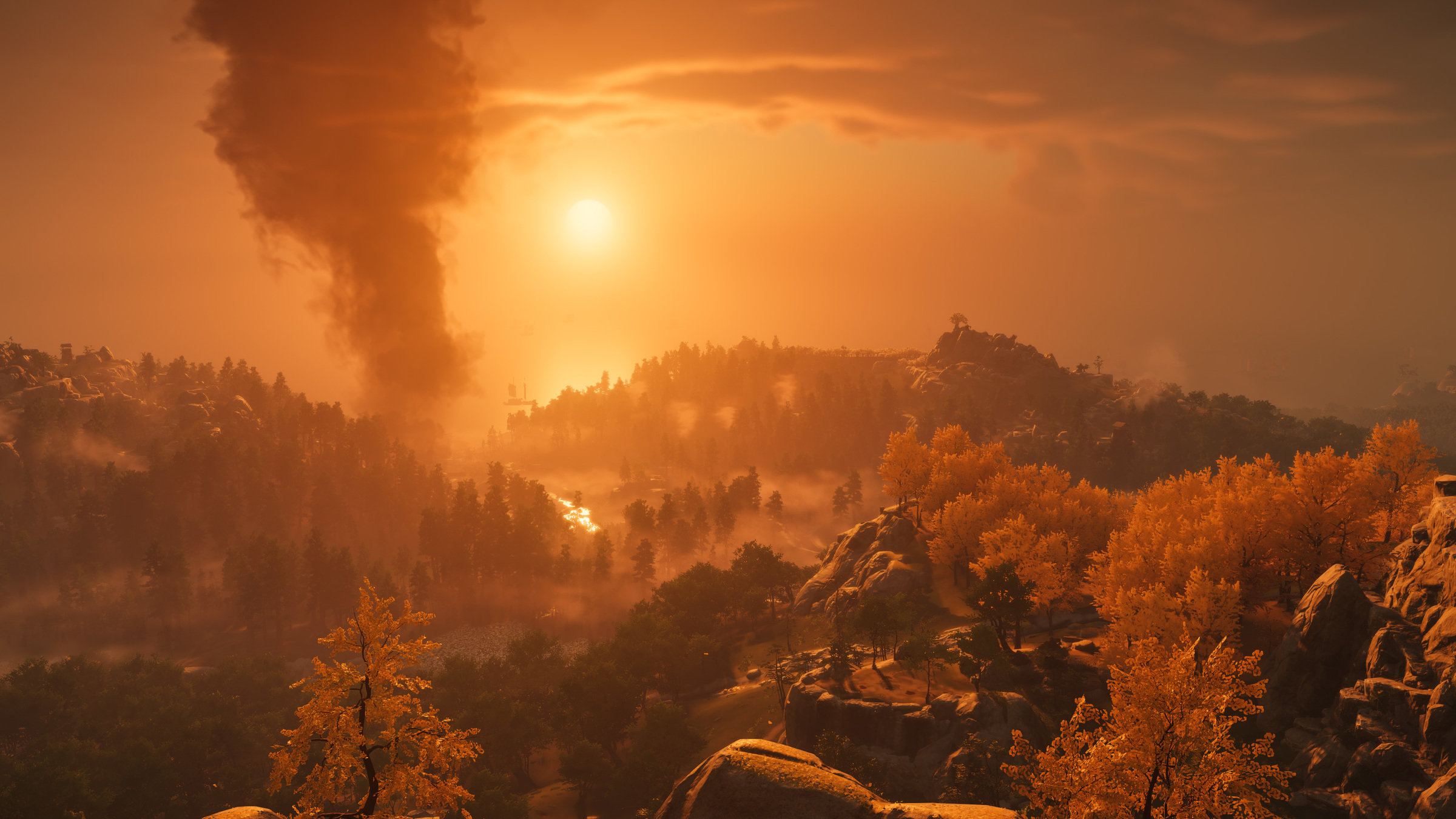

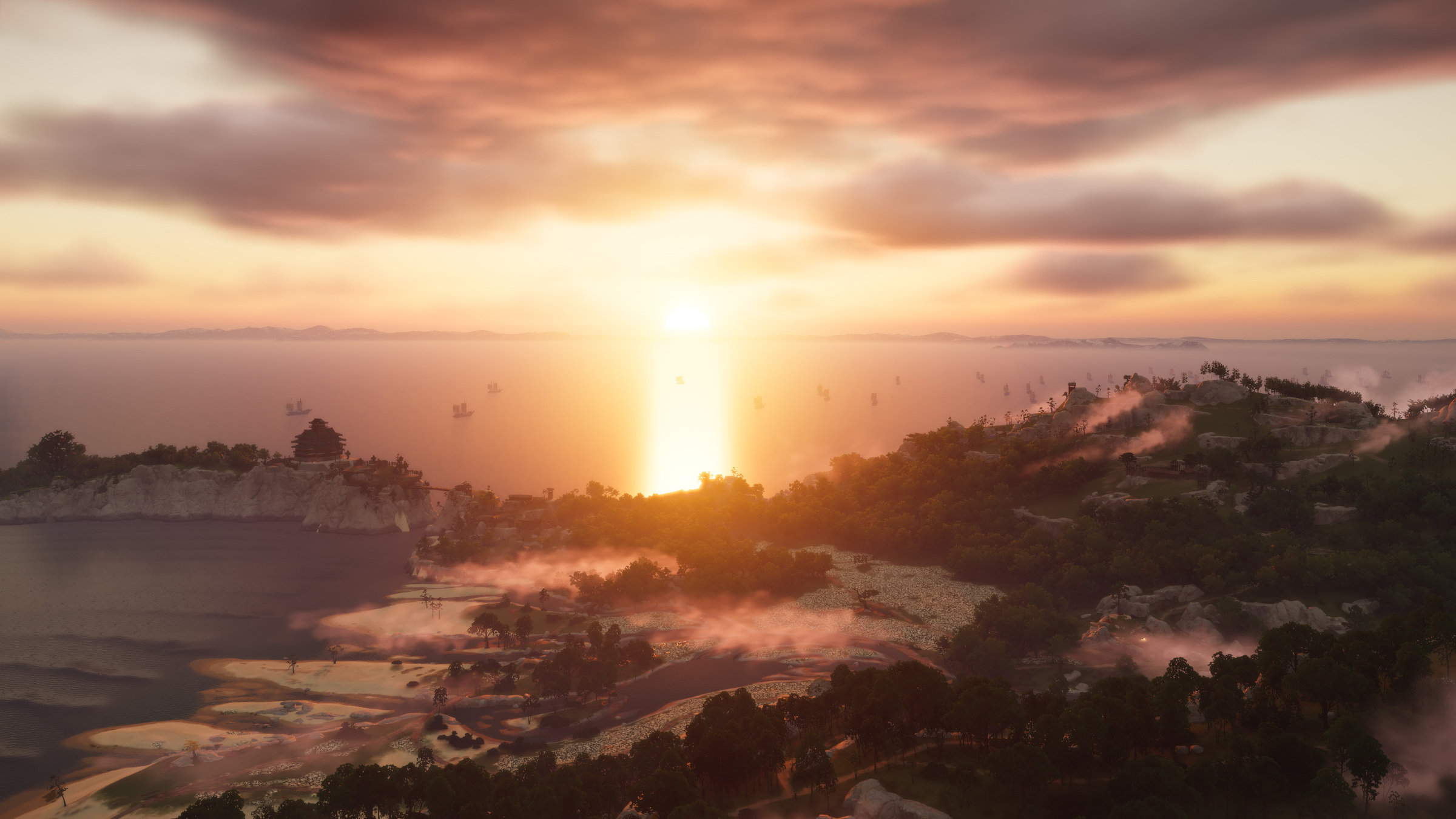

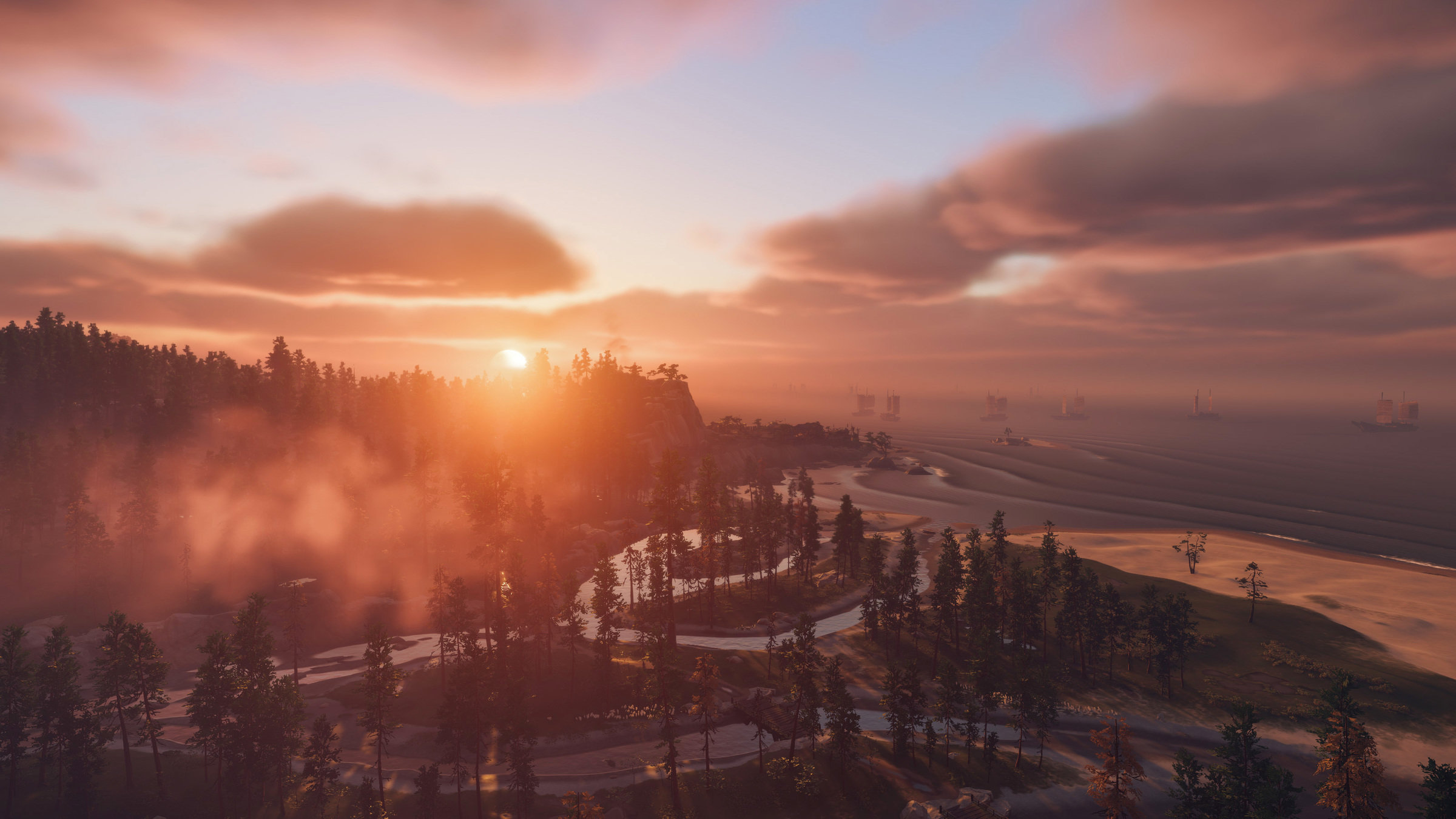

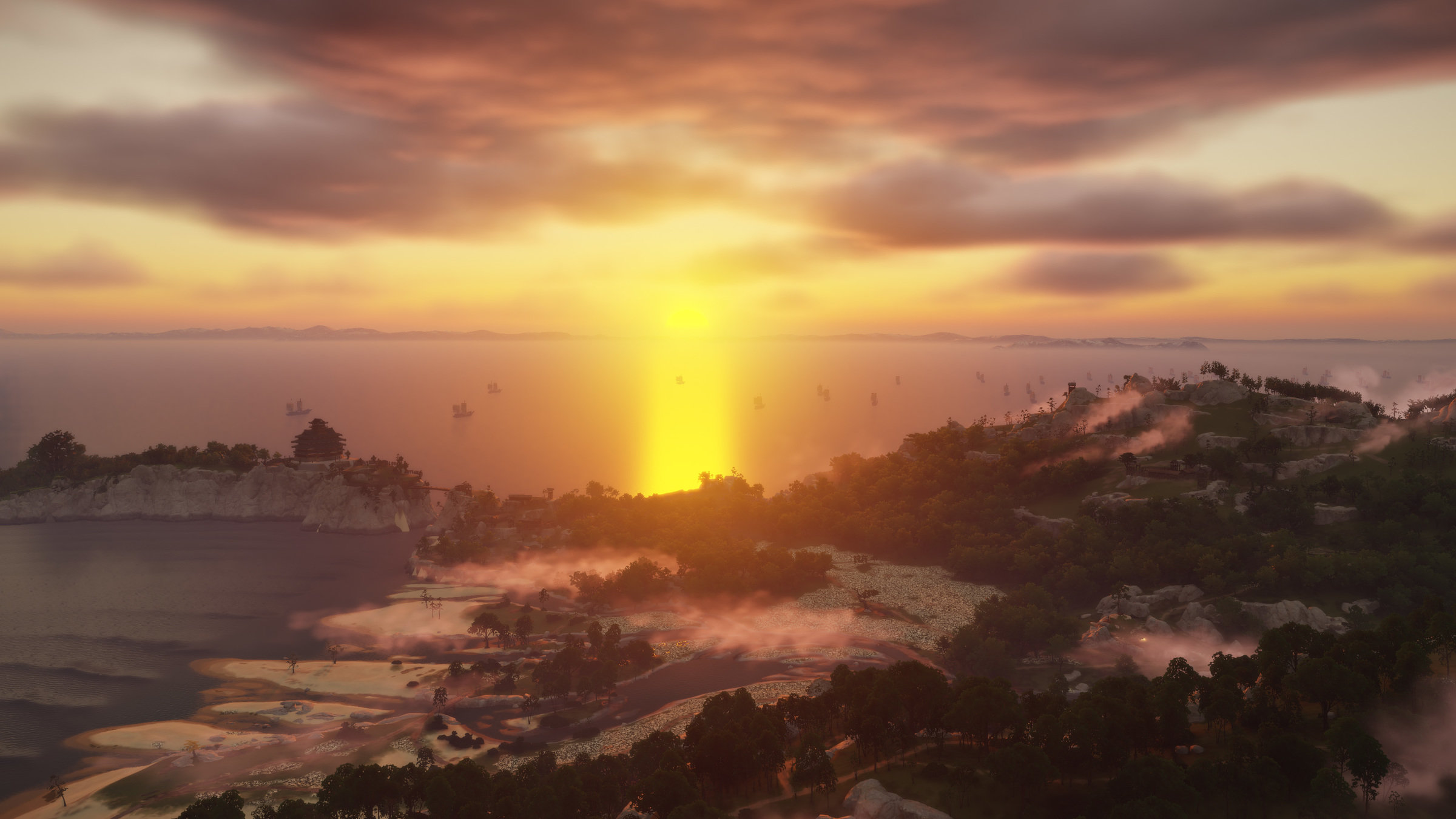

  • Dramatic lighting, wind, clouds, haze, and fog

• Art direction called for “stylized realism”

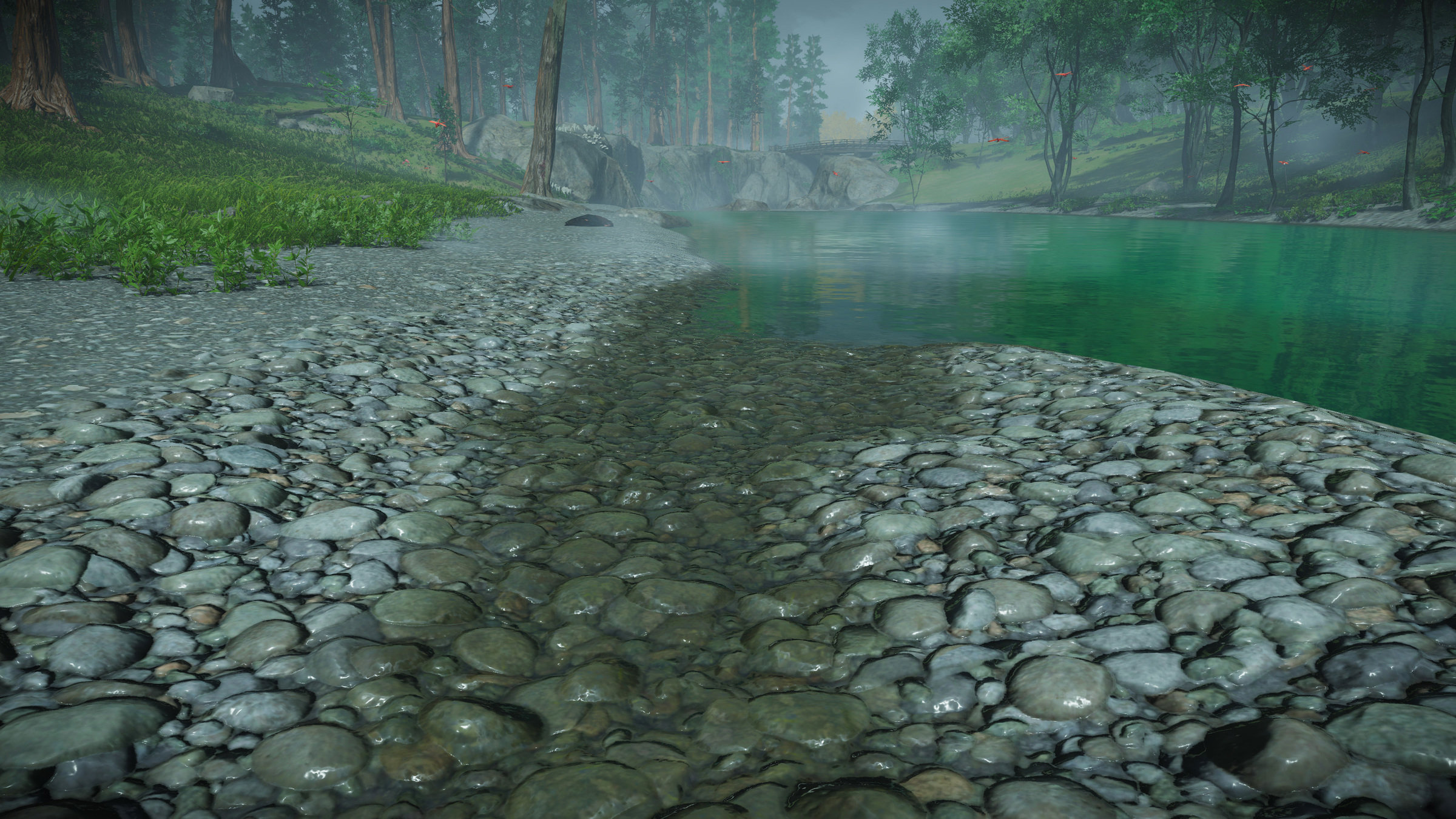

• Lighting models are physically based

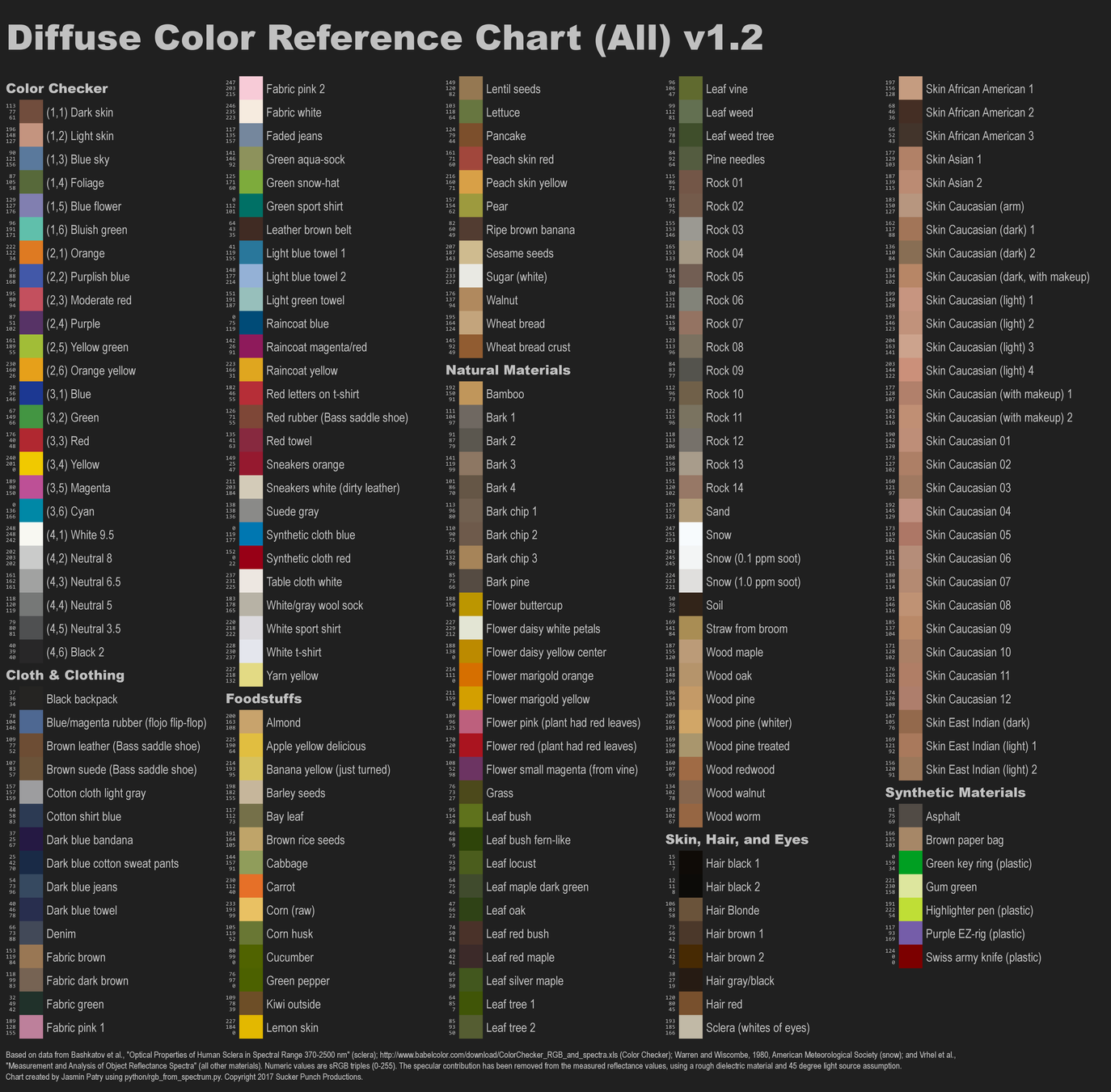

• Materials authored with physically plausible values, some photogrammetry
• Indirect lighting computed at runtime from dynamic sky and local light transfer data
• Physically based sky model, used for sky, clouds, haze, and fog particles
• Rendered in HDR and tonemapped with custom techniques
• Lighting can deviate from physical correctness
  • Artists can globally adjust to achieve desired look

• Indirect lighting
  • Diffuse
  • Specular

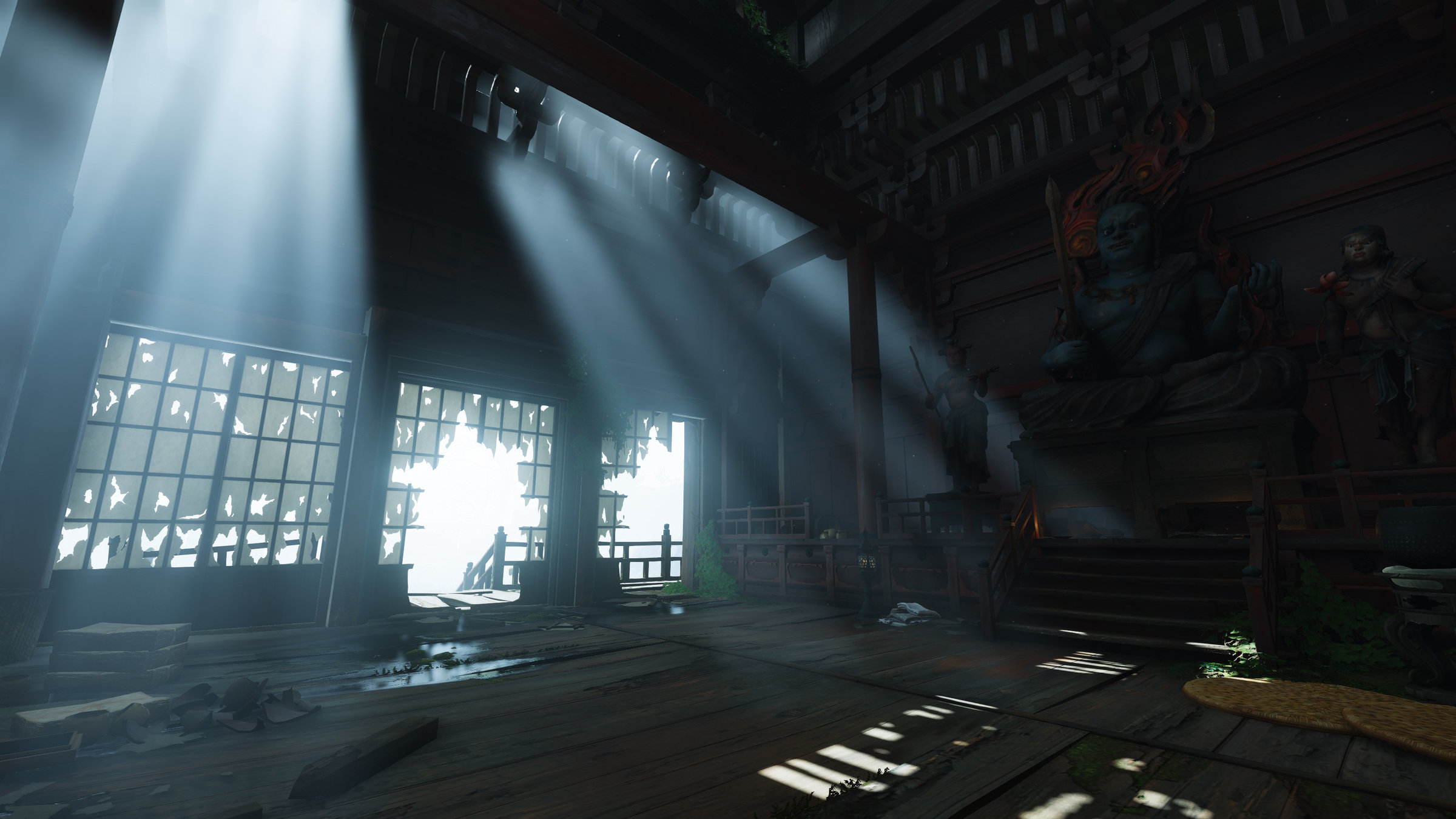

• Atmospheric volumetric lighting

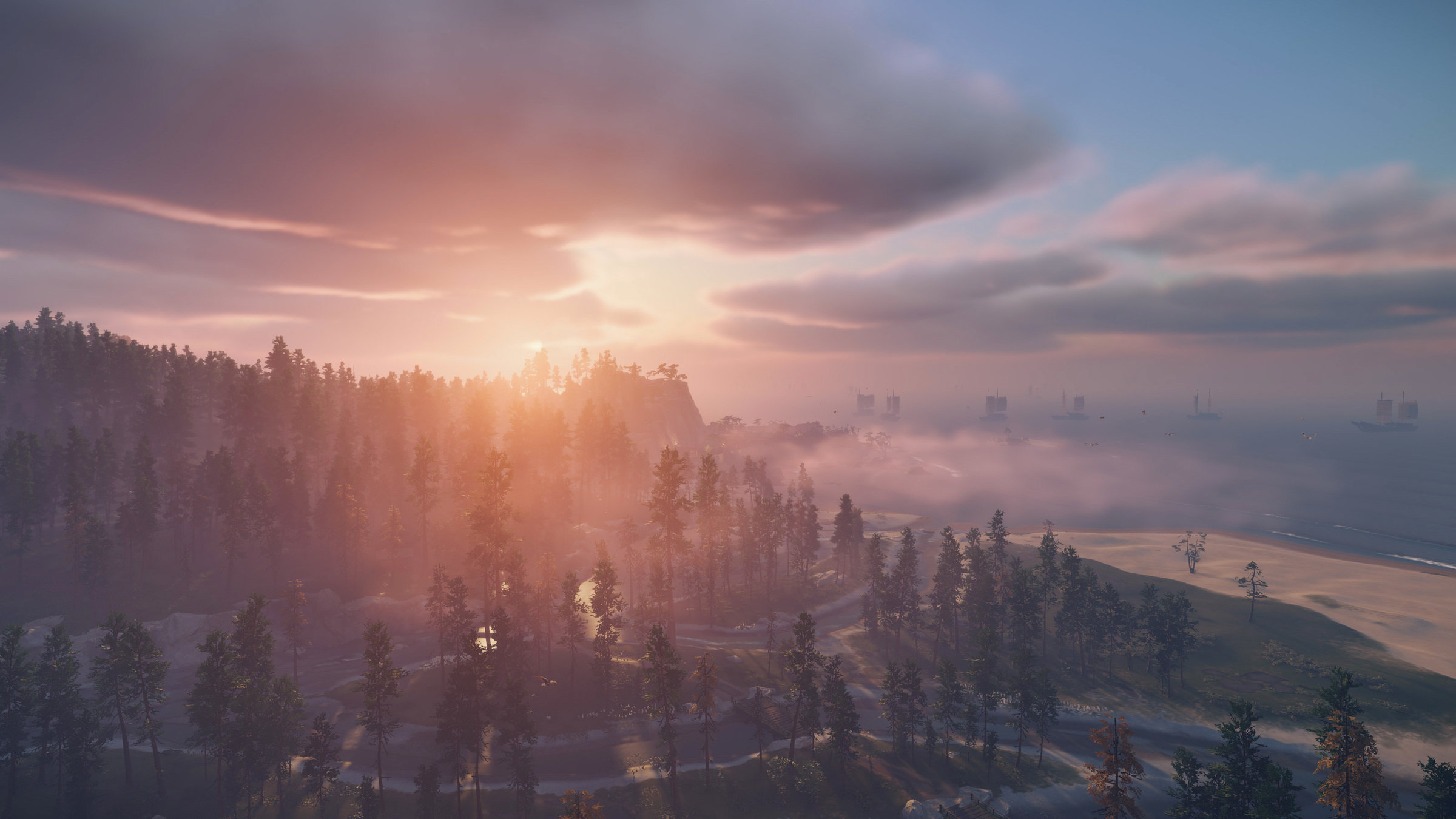

  • Skies & clouds

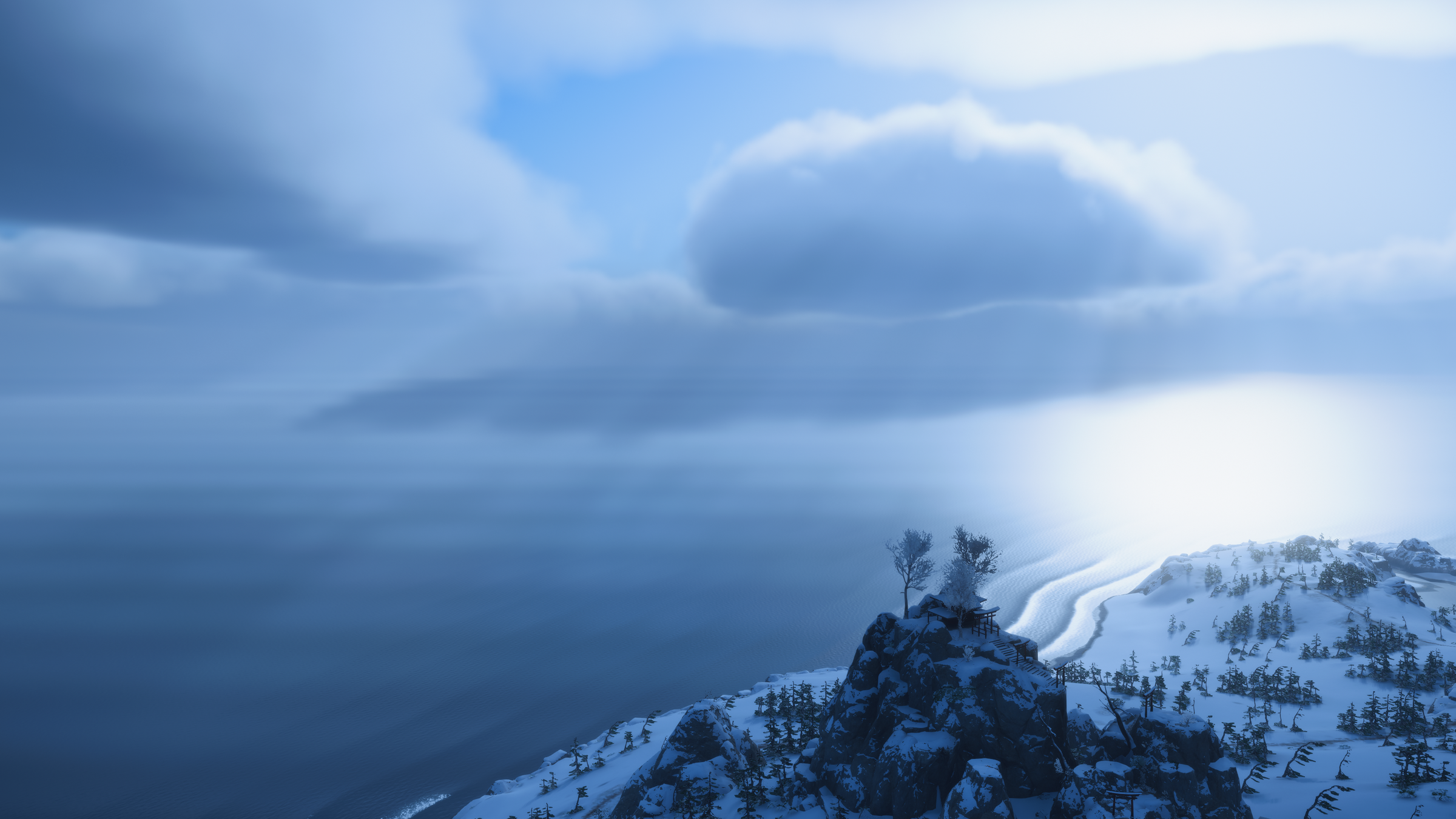

  • Haze
  • Particles

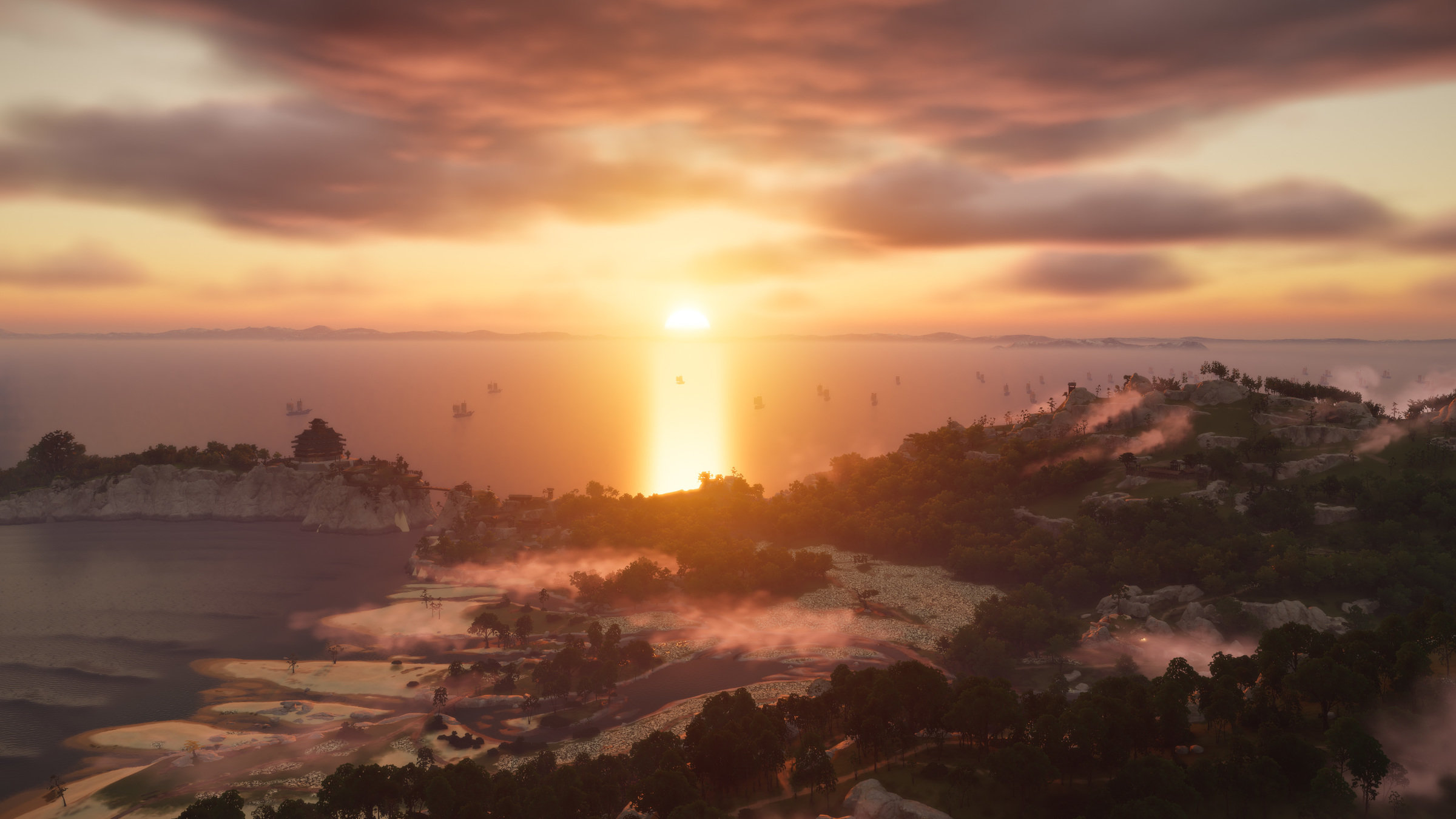

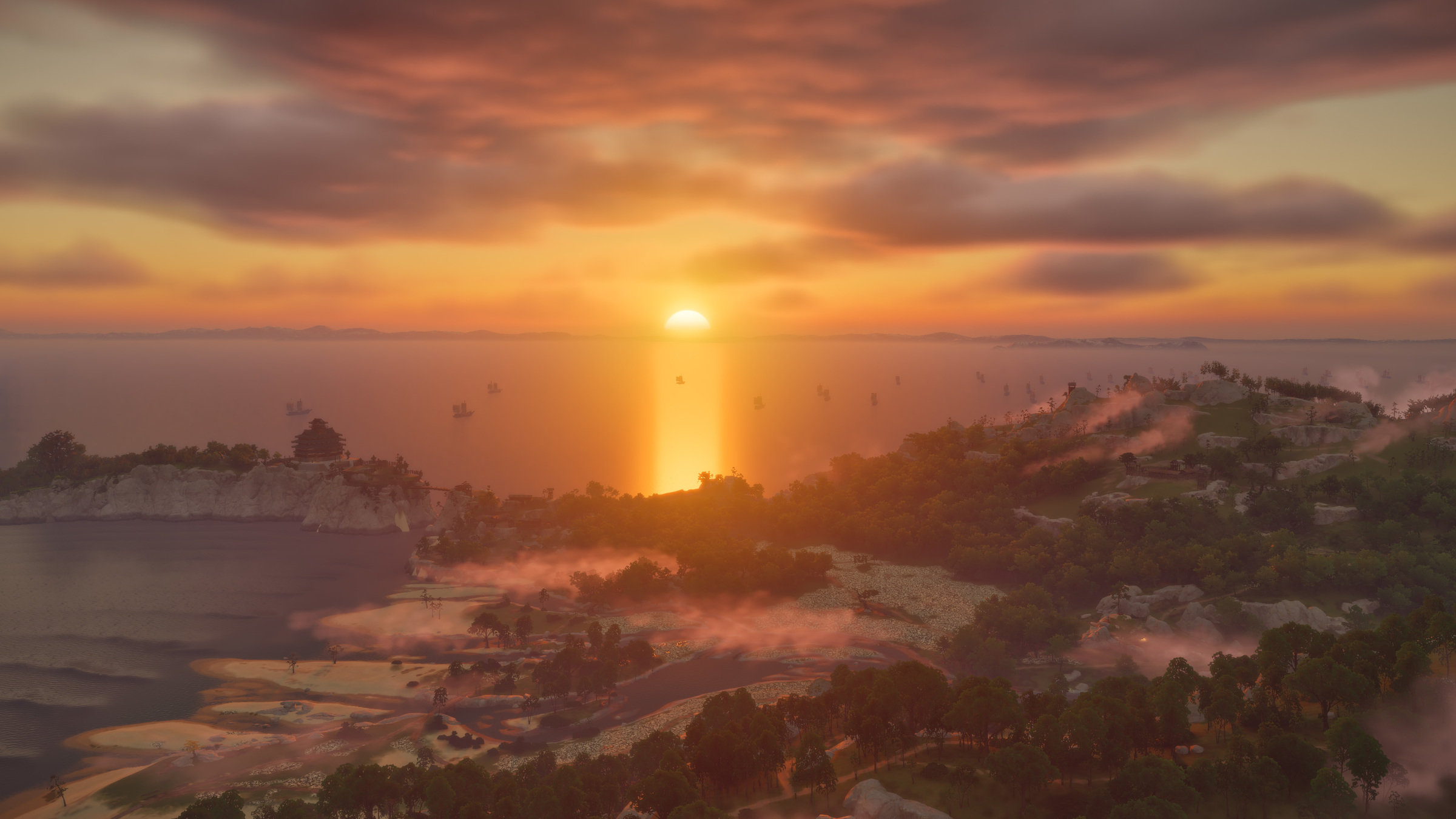

• Tonemapping
  • Local tonemapping operator
  • Custom tonemapping color space and white balance

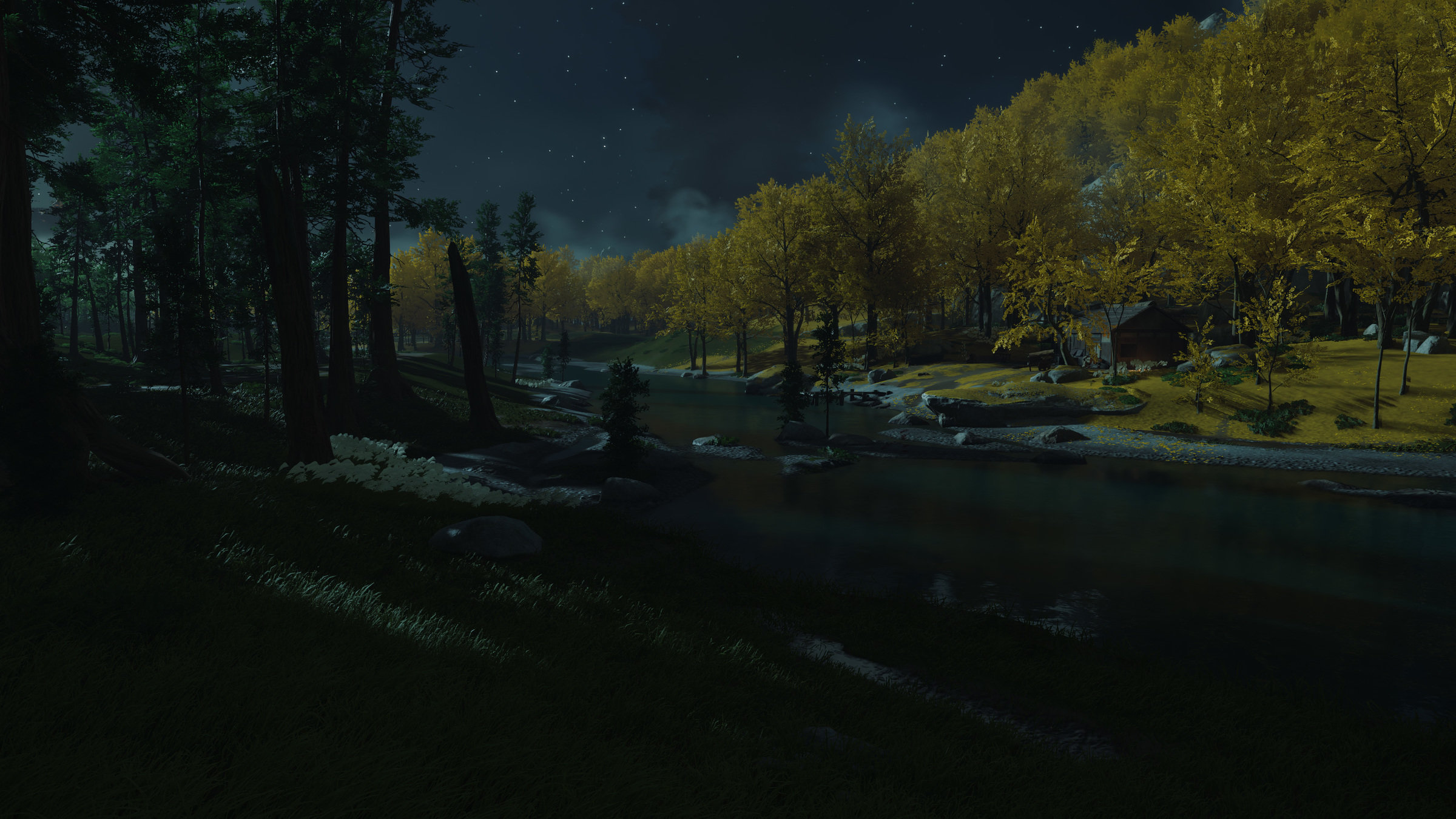

  • Purkinje shift (low-light vision simulation)

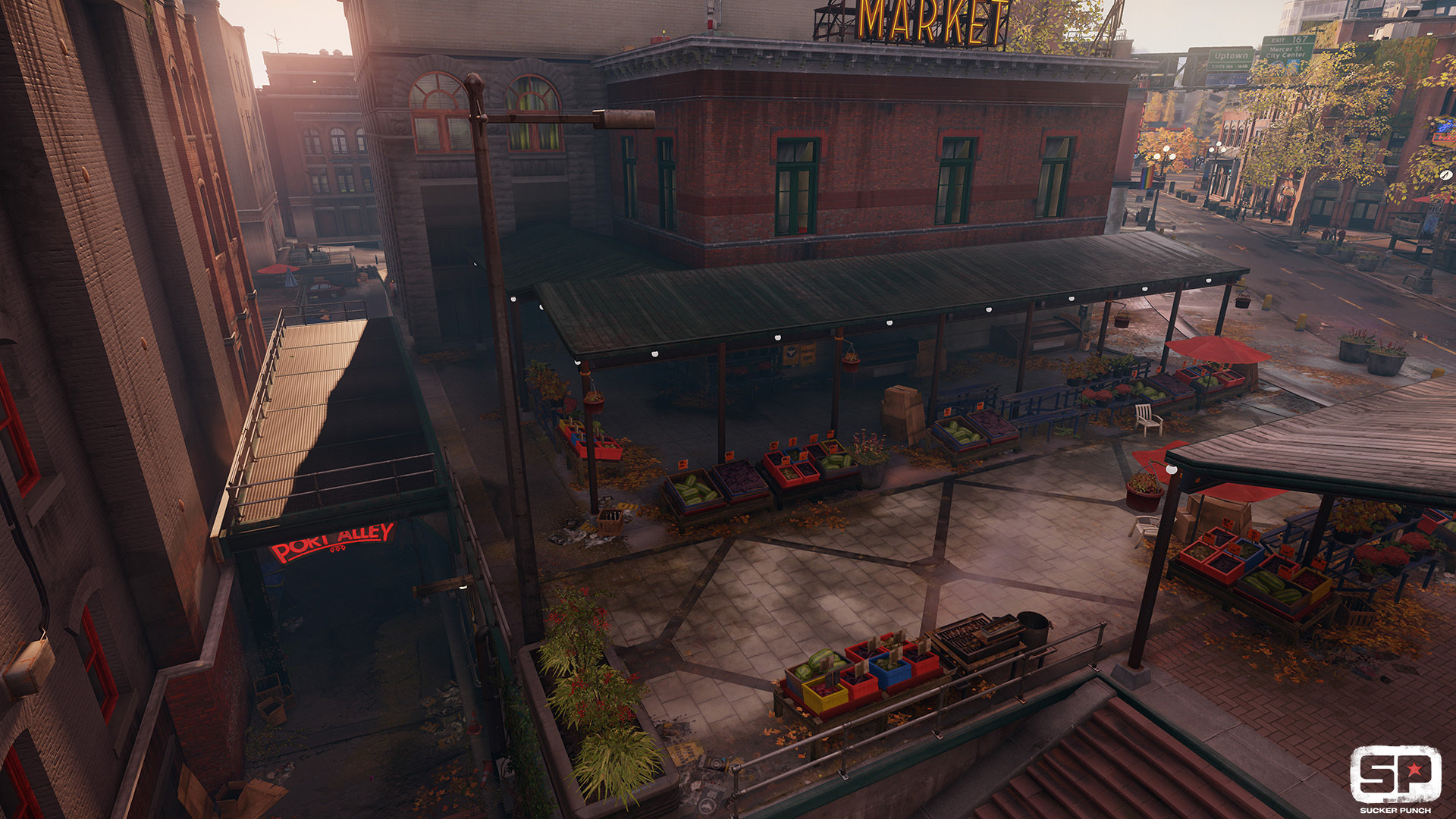

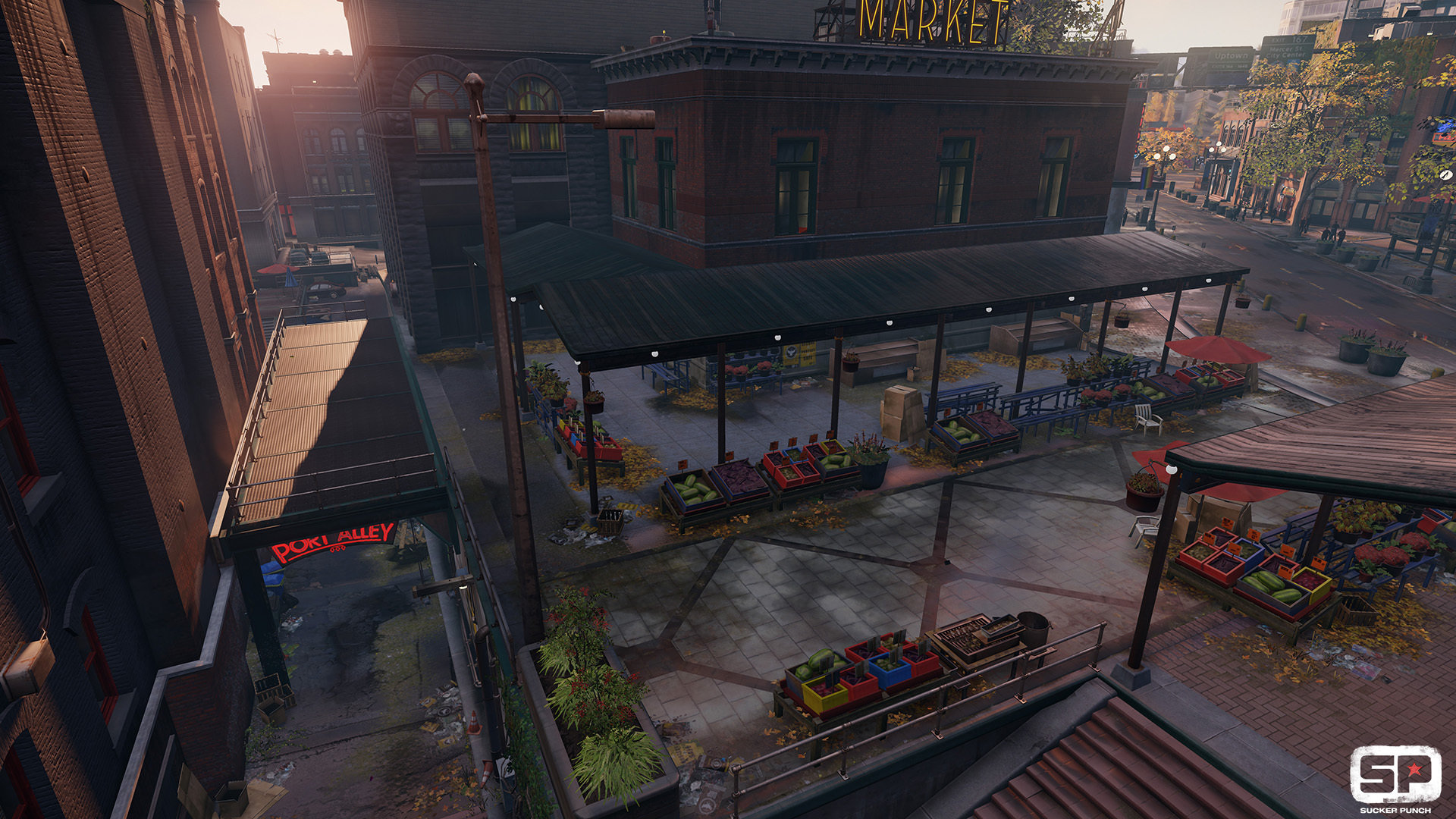

• Infamous: Second Son used static degree 2 SH irradiance probes in tetrahedral meshes
  • See Adrian Bentley's GDC 2014 Talk, “Engine Postmortem of inFAMOUS: Second Son”

• Tsushima’s size and dynamic time of day and weather required a new approach
• Regular grid of quadratic SH probes
  • 16x16x3 per 200m square tile, 20x80 tiles

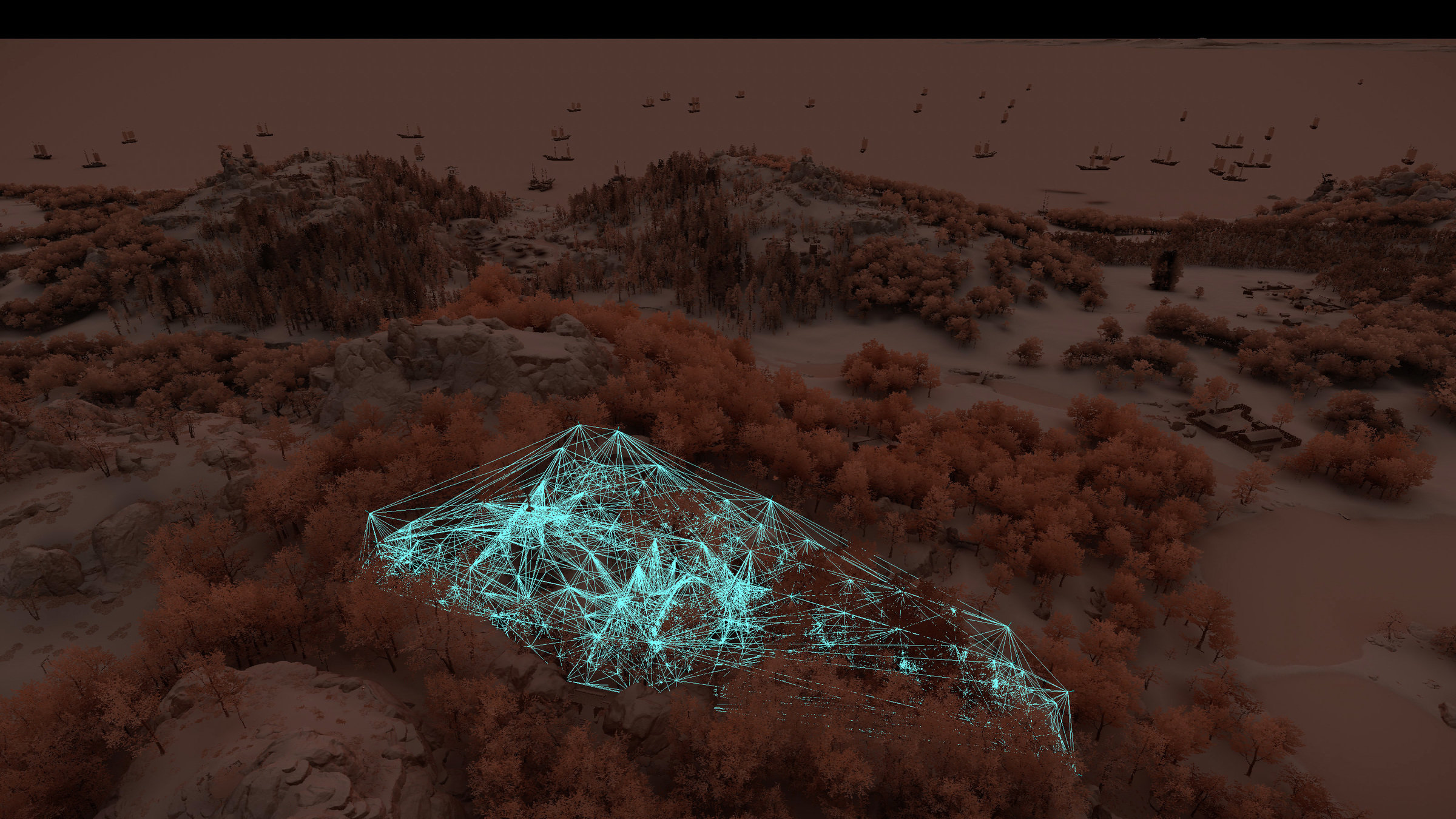

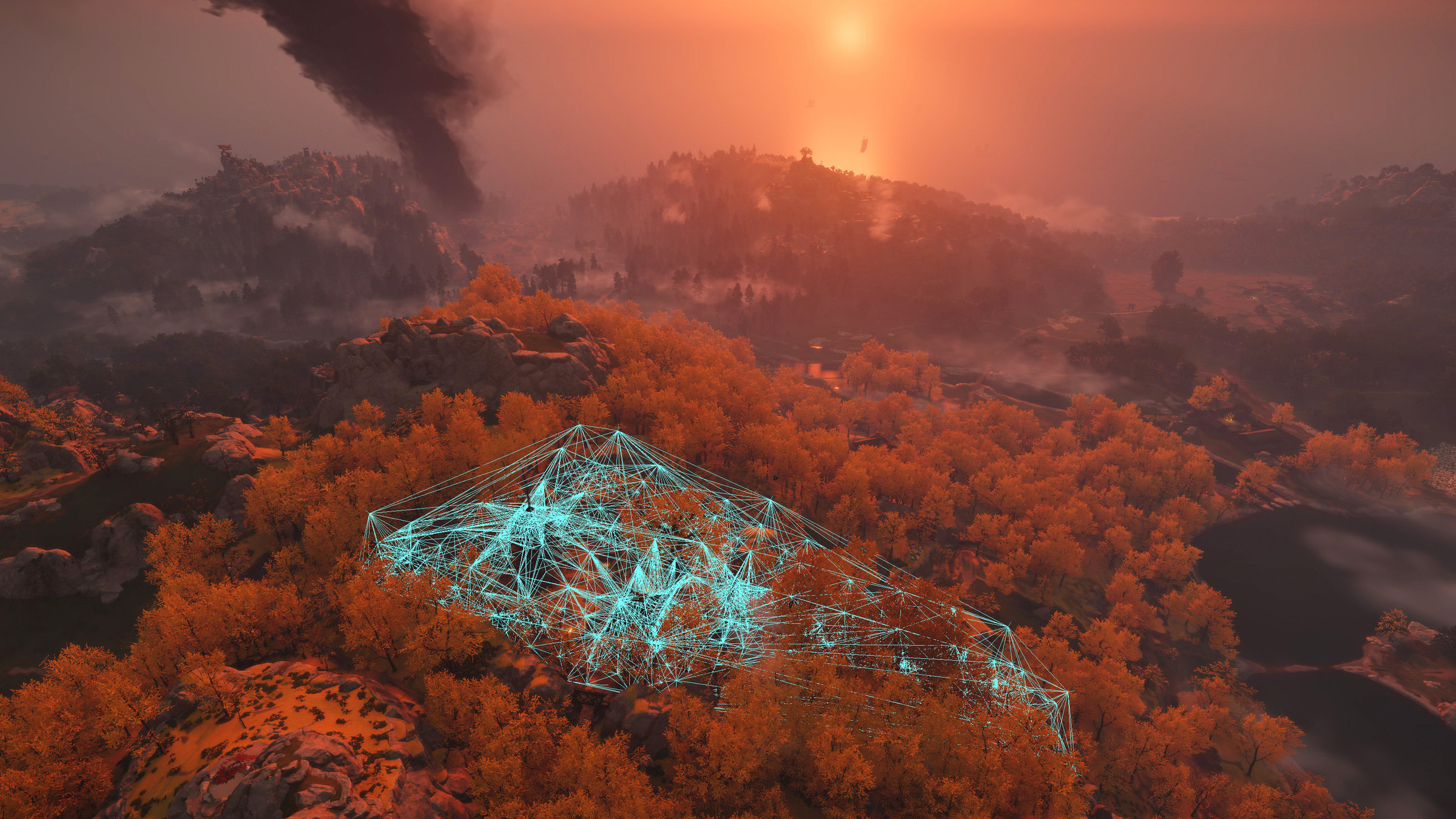

• Tetrahedral meshes used in for more complex cases
  • Towns, villages, farmsteads, castles, etc.
  • Streamed in with location
  • Overrides regular grid, blends at interface

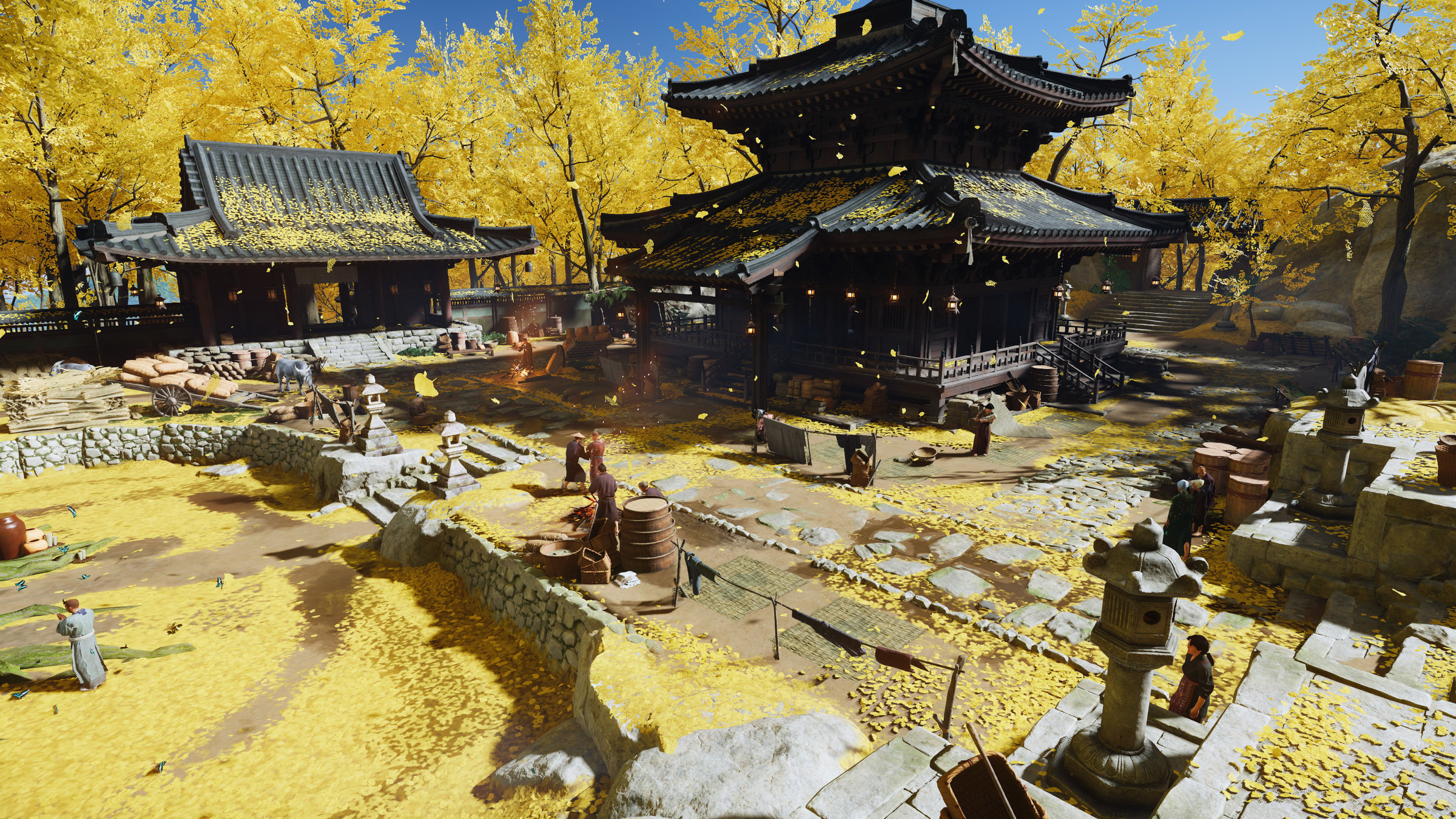

• Tetrahedral meshes used in “locations”
  • Towns, villages, castles, etc.
  • Streamed in with location
  • Overrides regular grid, blends at interface

• Tetrahedral meshes used in “locations”
  • Towns, villages, castles, etc.
  • Streamed in with location
  • Overrides regular grid, blends at interface

• Tetrahedral meshes used in “locations”
  • Towns, villages, castles, etc.
  • Streamed in with location
  • Overrides regular grid, blends at interface

• Tetrahedral meshes used in “locations”
  • Towns, villages, castles, etc.
  • Streamed in with location
  • Overrides regular grid, blends at interface

Runtime Relighting

• Need to update our irradiance probes at runtime
• Offline, capture:
  • Irradiance

Runtime Relighting

• Need to update our irradiance probes at runtime
• Offline, capture:
  • Irradiance

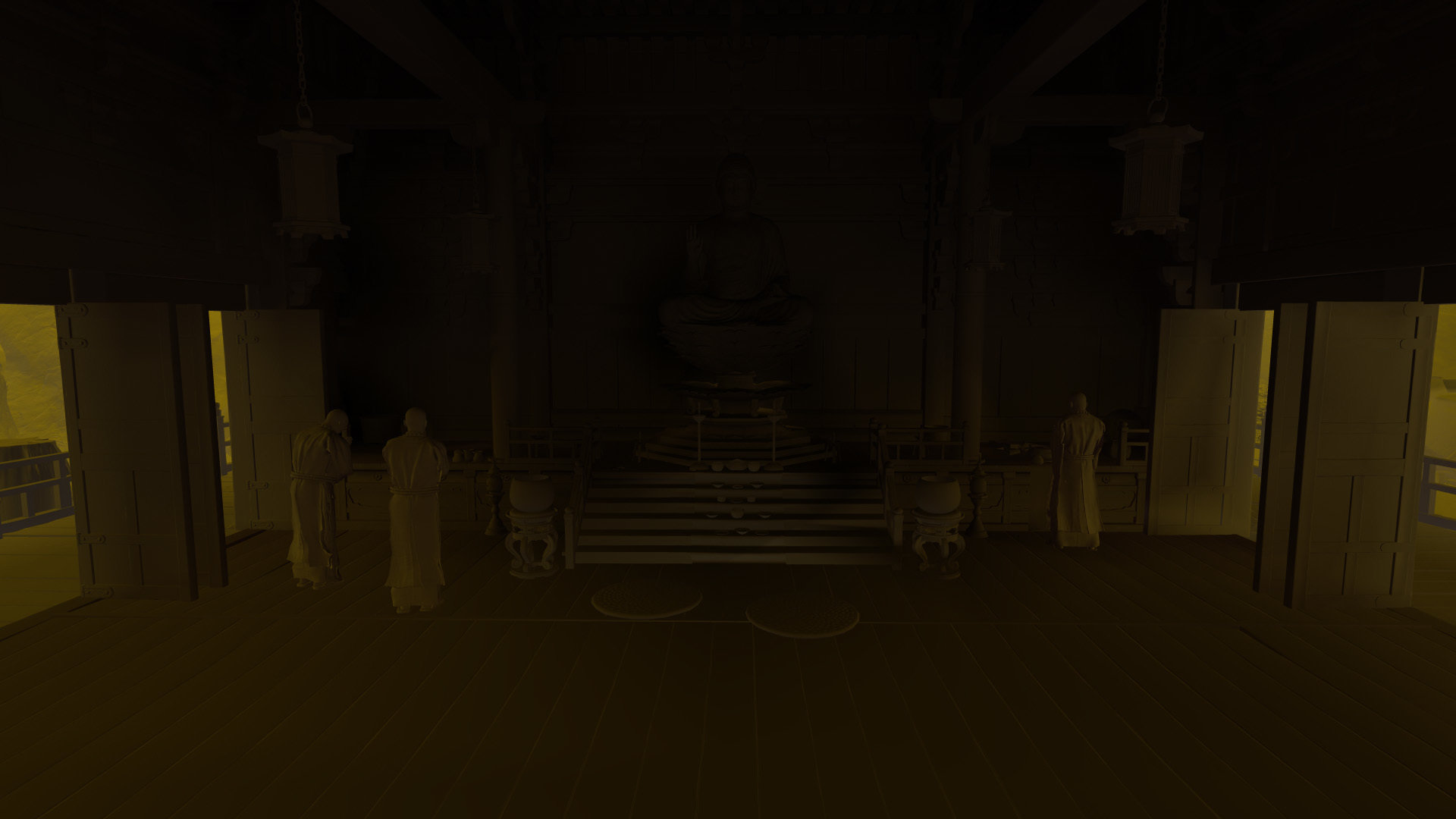

  • Sky visibility encoded in degree 2 SH (mono)
• At runtime:
  • Project sky to SH
  • Multiply sky SH by sky visibility
  • Convolve with Lambertian cosine lobe

Bounced Sky Light

• This works, but gives direct sky lighting only
  • No bounced light
• Full transfer matrix?
  • Too much memory (9X)
  • Takes too long to capture
• Approximate by assuming that sky light is ~constant over hemisphere

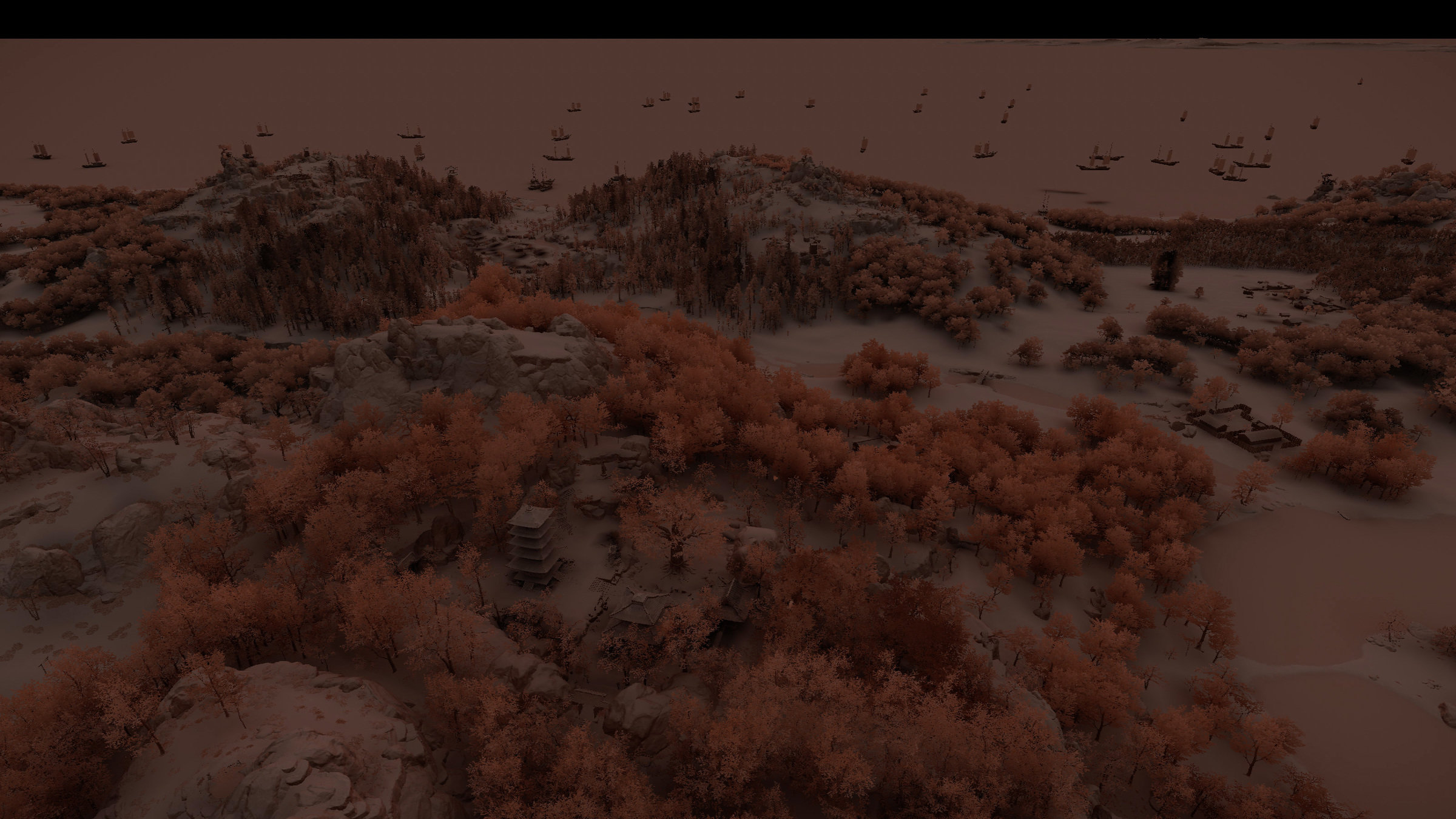

  • Light the world with a uniform white sky

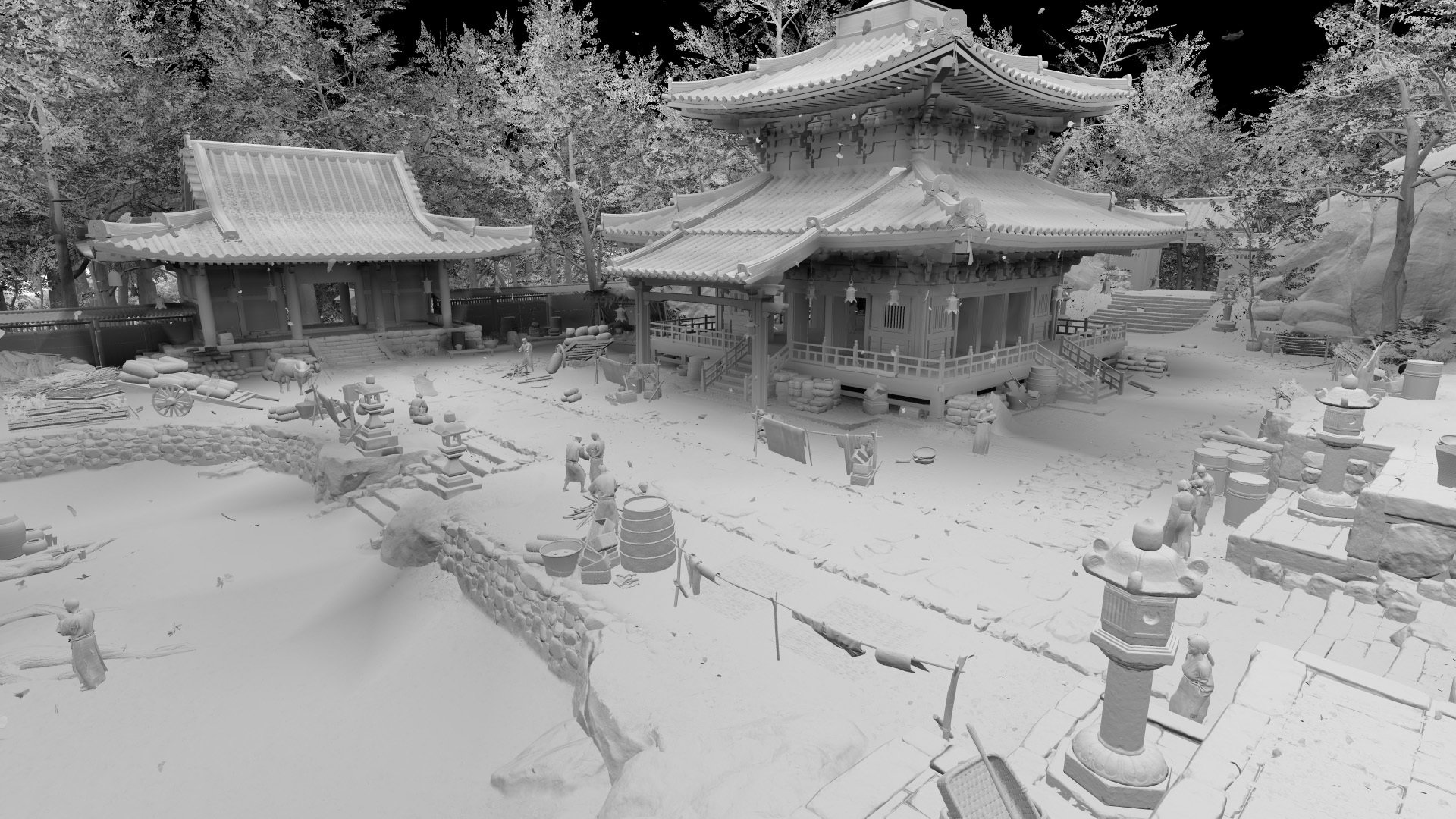

  • Capture “bounced sky visibility”
• Multiply by average sky color (from 0th SH band)

Adding Sun/Moon Bounce

• Bouncing sky light by itself not sufficient
• Can we use the bounced sky visibility data somehow?
• Idea: consider a fixed set of of bounce directions
  • (bounce directions SH) \(\times\)
    (bounced sky visibility SH) \(\times\)
    (sun/moon irradiance)
  • Assumes that the cosine-weighted average sky visibility of the surfaces is a good estimate of shadowing
    • Close enough for our purposes

Adding Sun/Moon Bounce

• Reflect light in imaginary ground and wall

• Project \(-\mathbf{\hat{r}}_g\) and \(-\mathbf{\hat{r}}_w\) to SH; window to avoid negative lobes
• Scale by RGB light intensity (modulated by dynamic cloud shadow)
• Multiply by bounced sky SH and add to previous result

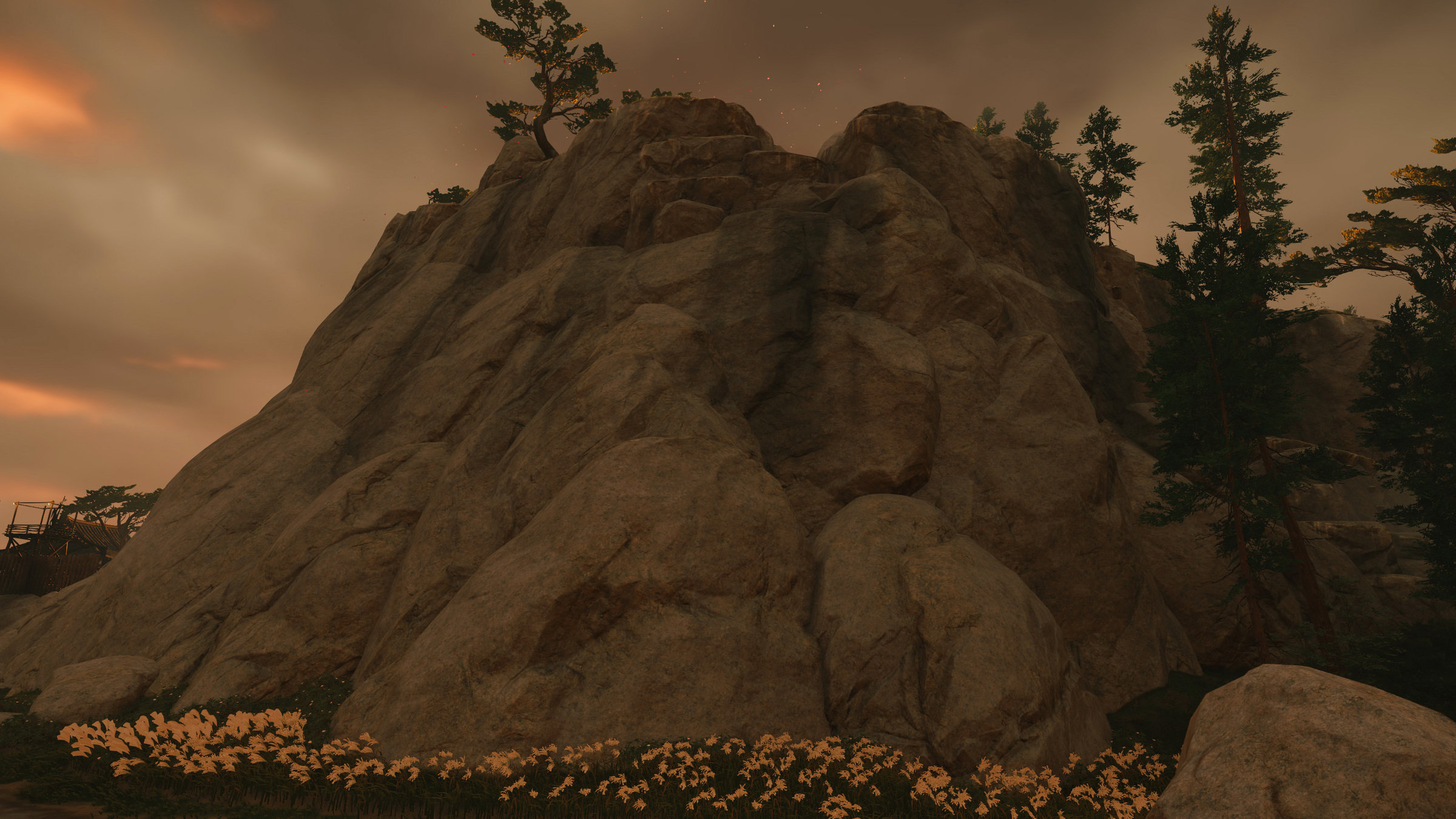

Directionality Boost

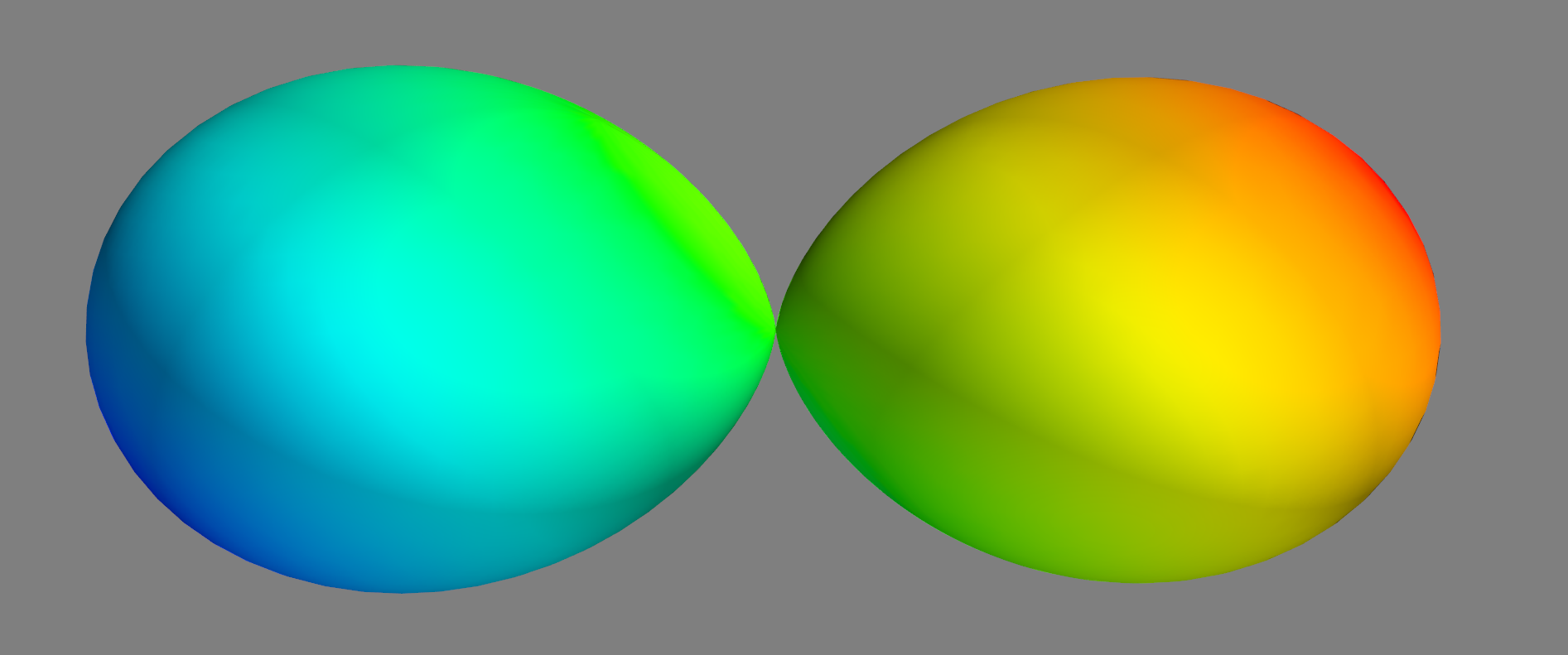

• Degree 2 SH is relatively low frequency
• Indirect lighting looked flat in many areas
• Lerp towards delta in direction of linear SH maximum
  • Inexpensive to compute
• Separately computed for direct and bounced portions
• Used 25% boost in all weather states

Deringing

• No guarantee that final irradiance will be positive everywhere
• Apply fixed extra deringing to sky visibility?
  • Reduces directionality and fidelity
• Instead dering sky luminance and final irradiance at runtime
  • Peter-Pike Sloan, “Deringing Spherical Harmonics”, SIGGRAPH Asia 2017
• One Newton step sufficient to find the minimum
• Used a depth 3 binary search tree computed on CPU

Performance (Base PS4)

• Sky luminance \(\Rightarrow\) SH: 60 μs (including deringing)

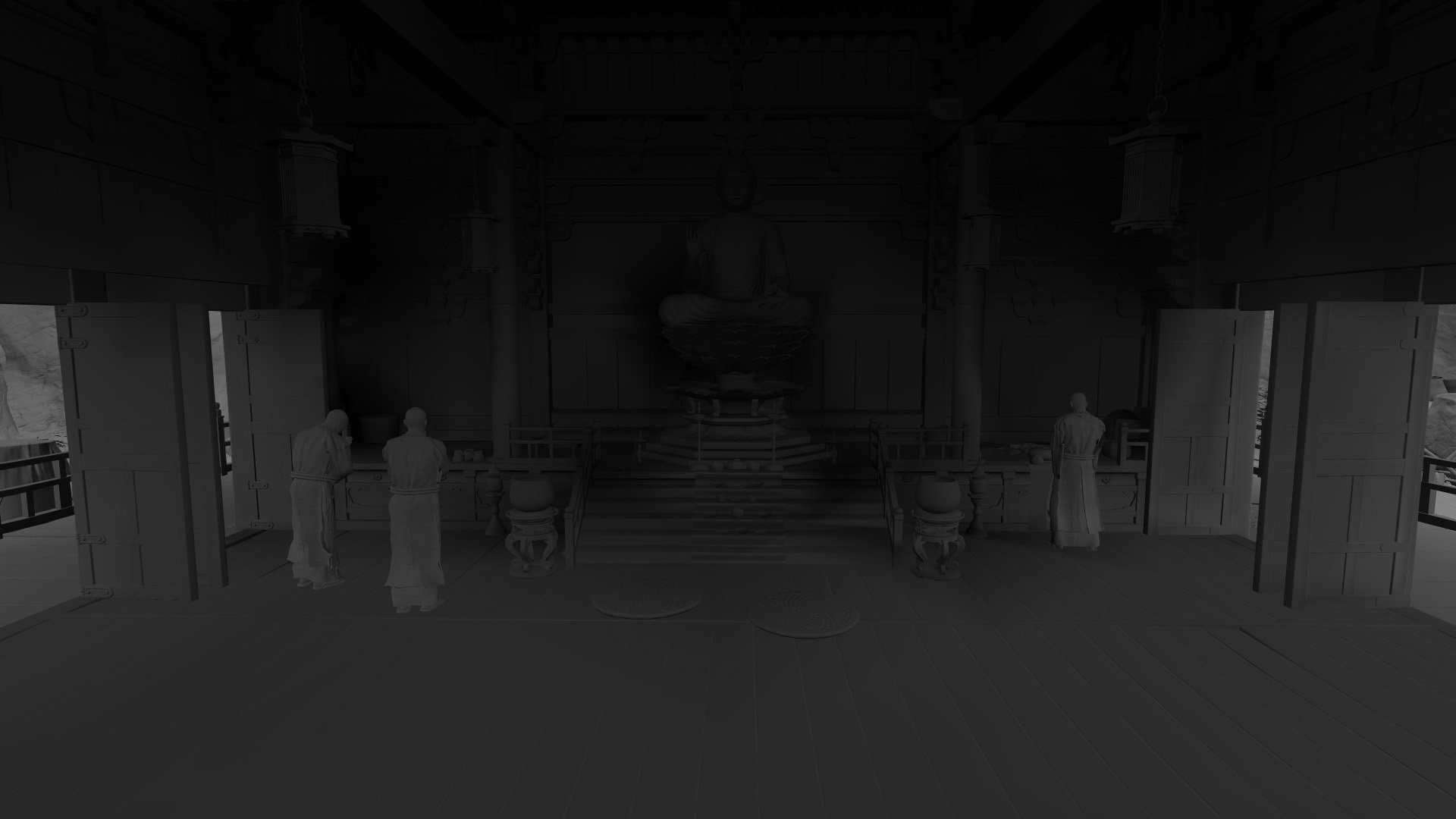

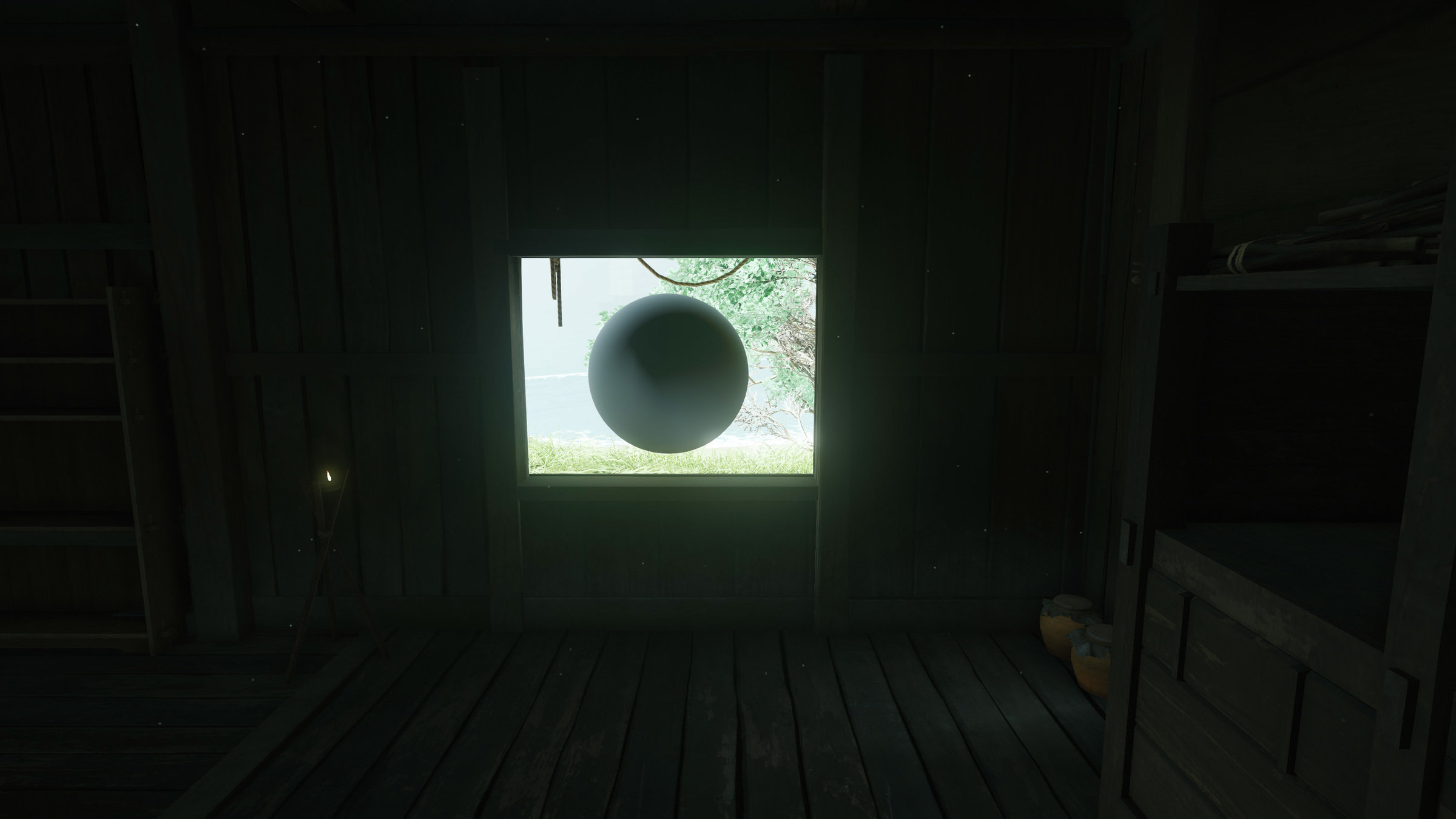

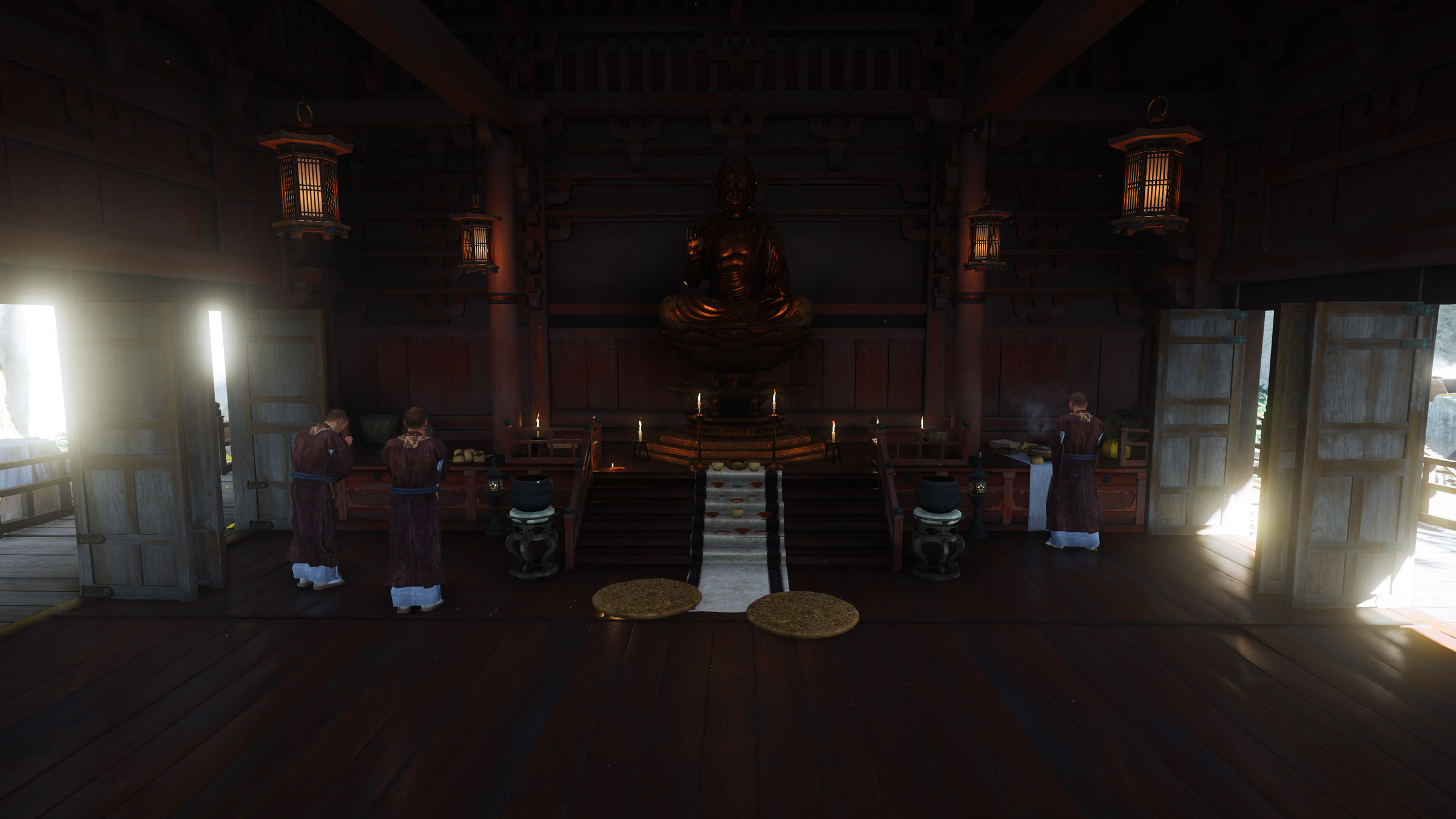

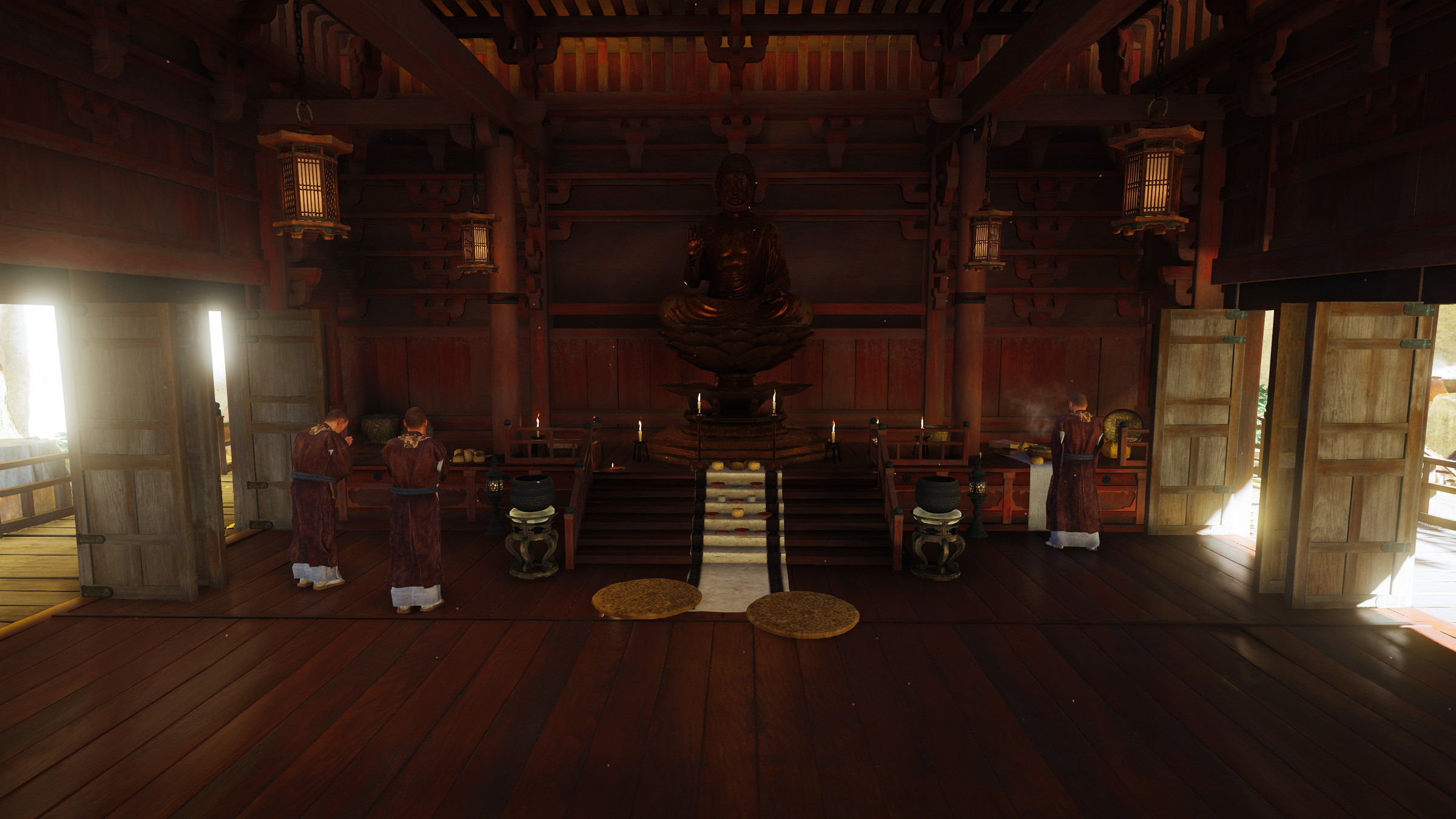

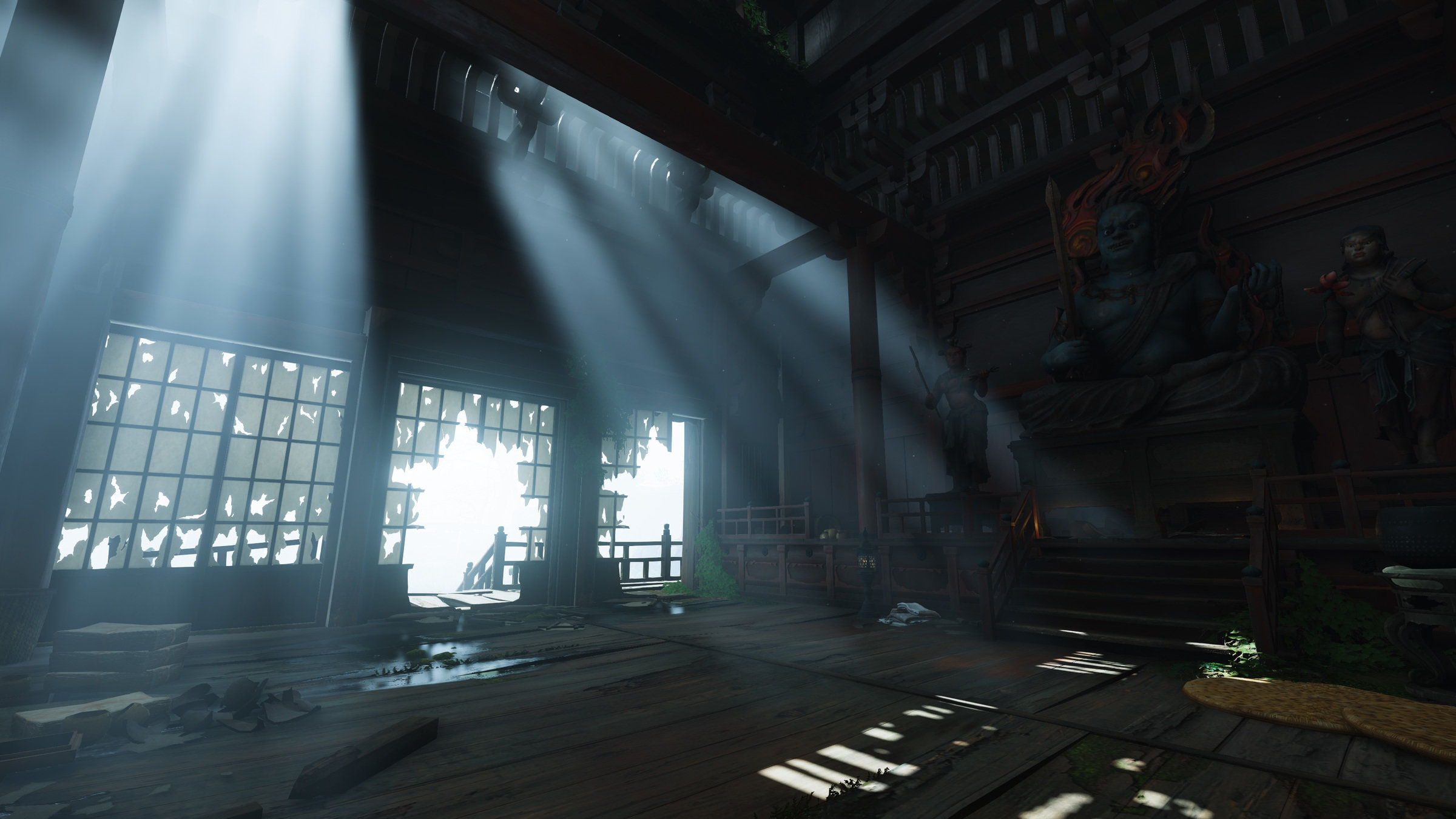

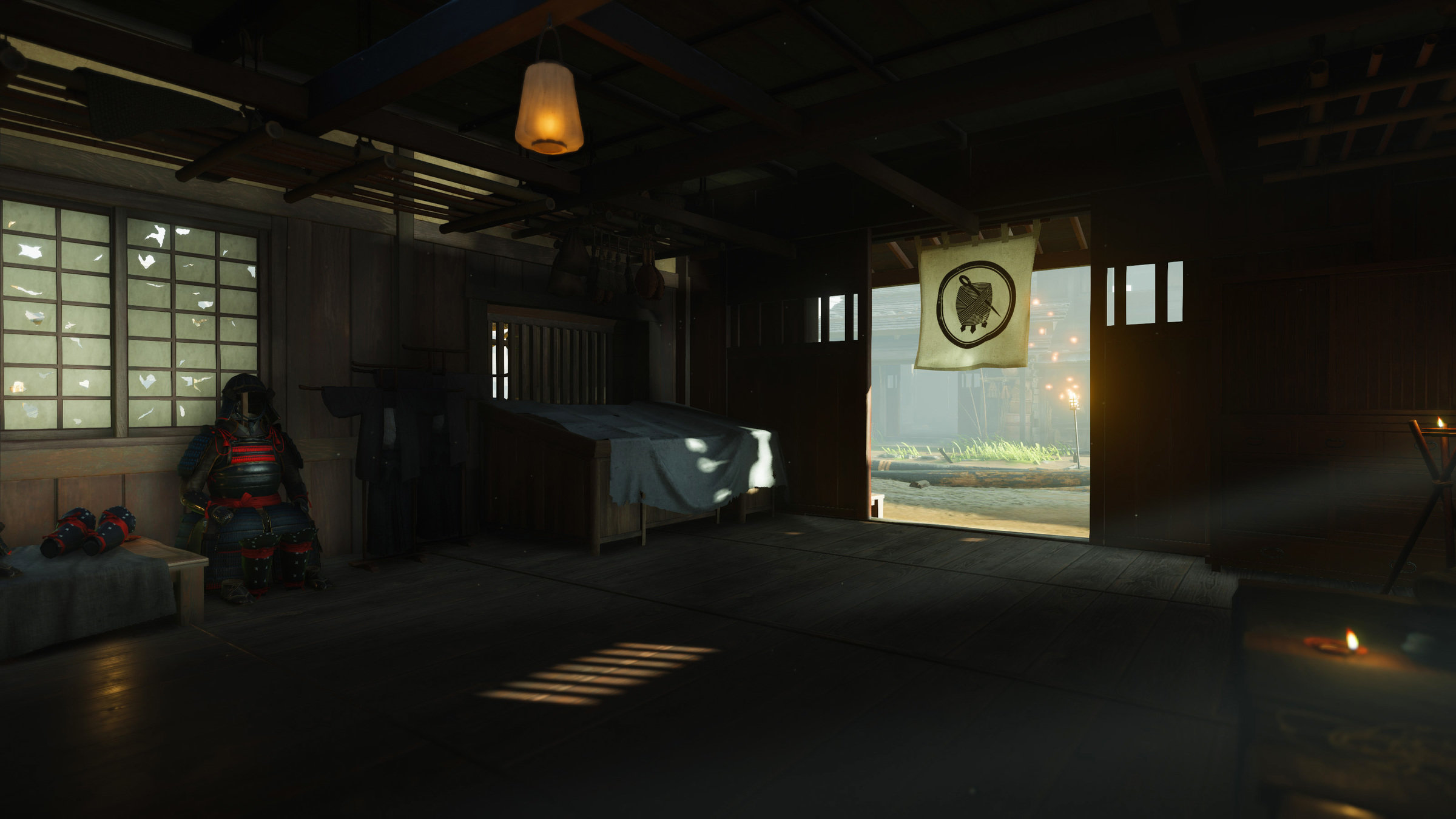

Light Leaking

• In Infamous, worked around light leaking issues
  • Few interiors, thick walls

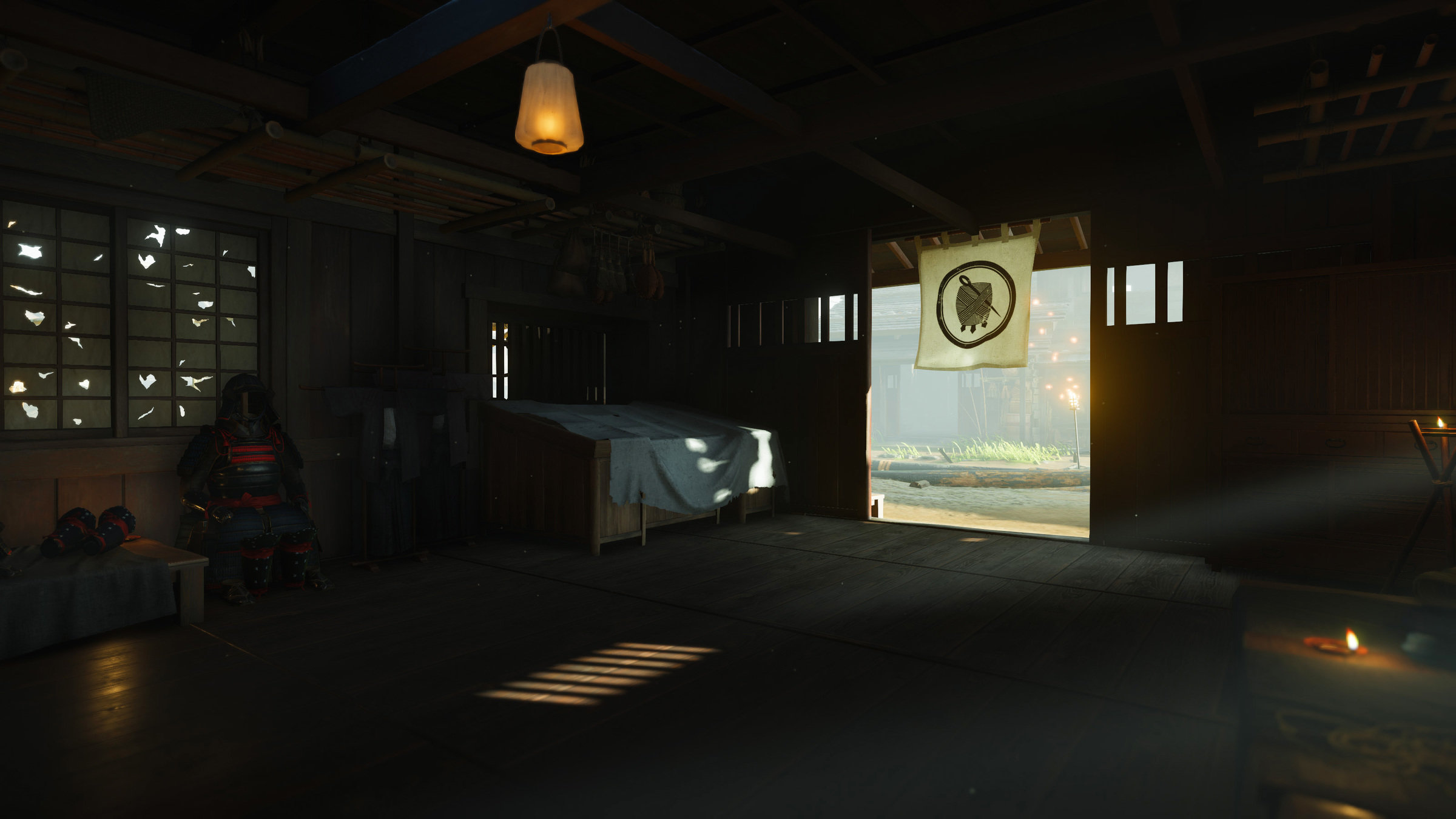

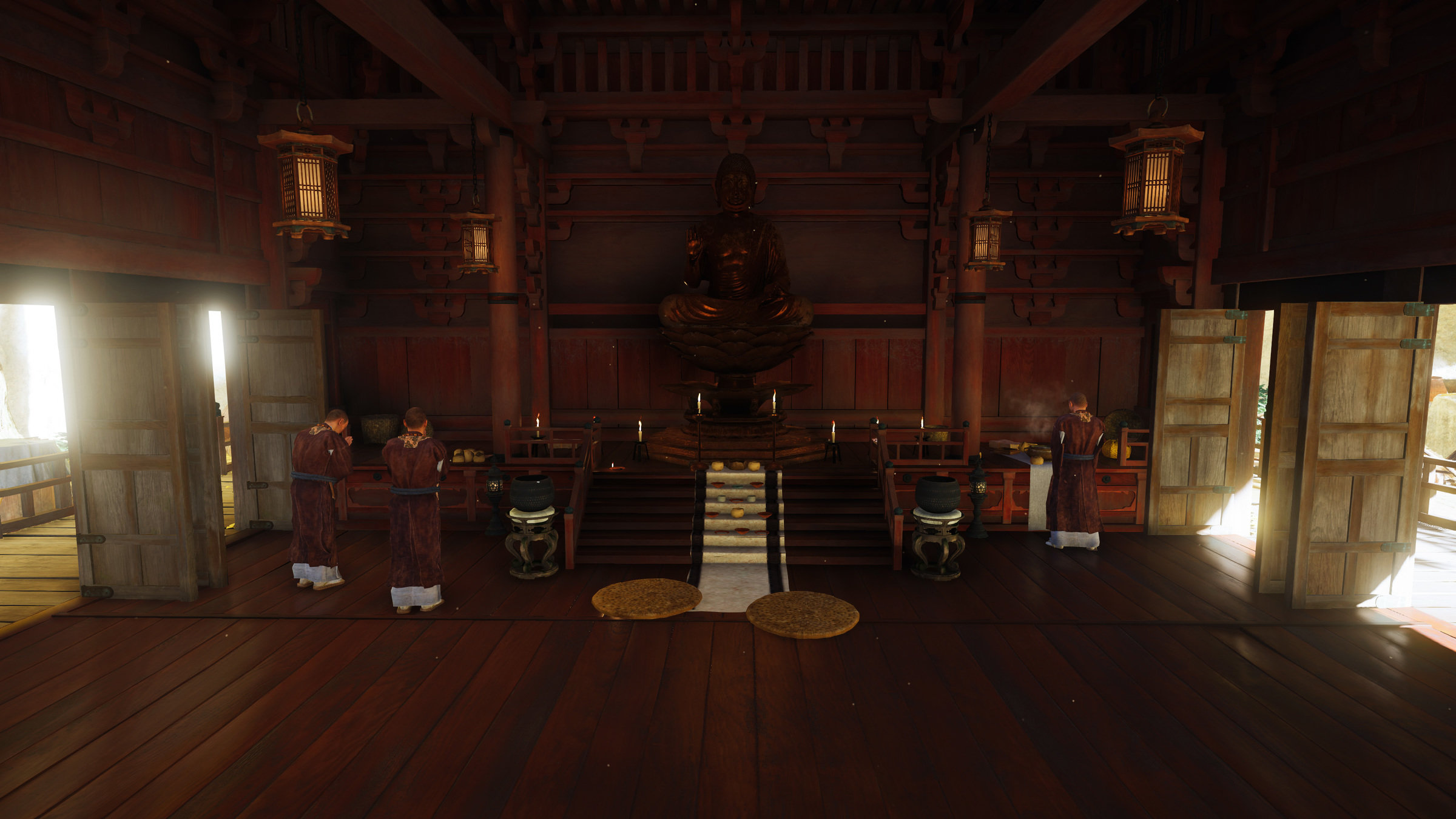

• Lots of interiors and thin walls in Ghost
• Tried augmenting probes with:
  • Cone occlusion
  • Occlusion planes
  • Occlusion maps
• None of these solved all our problems

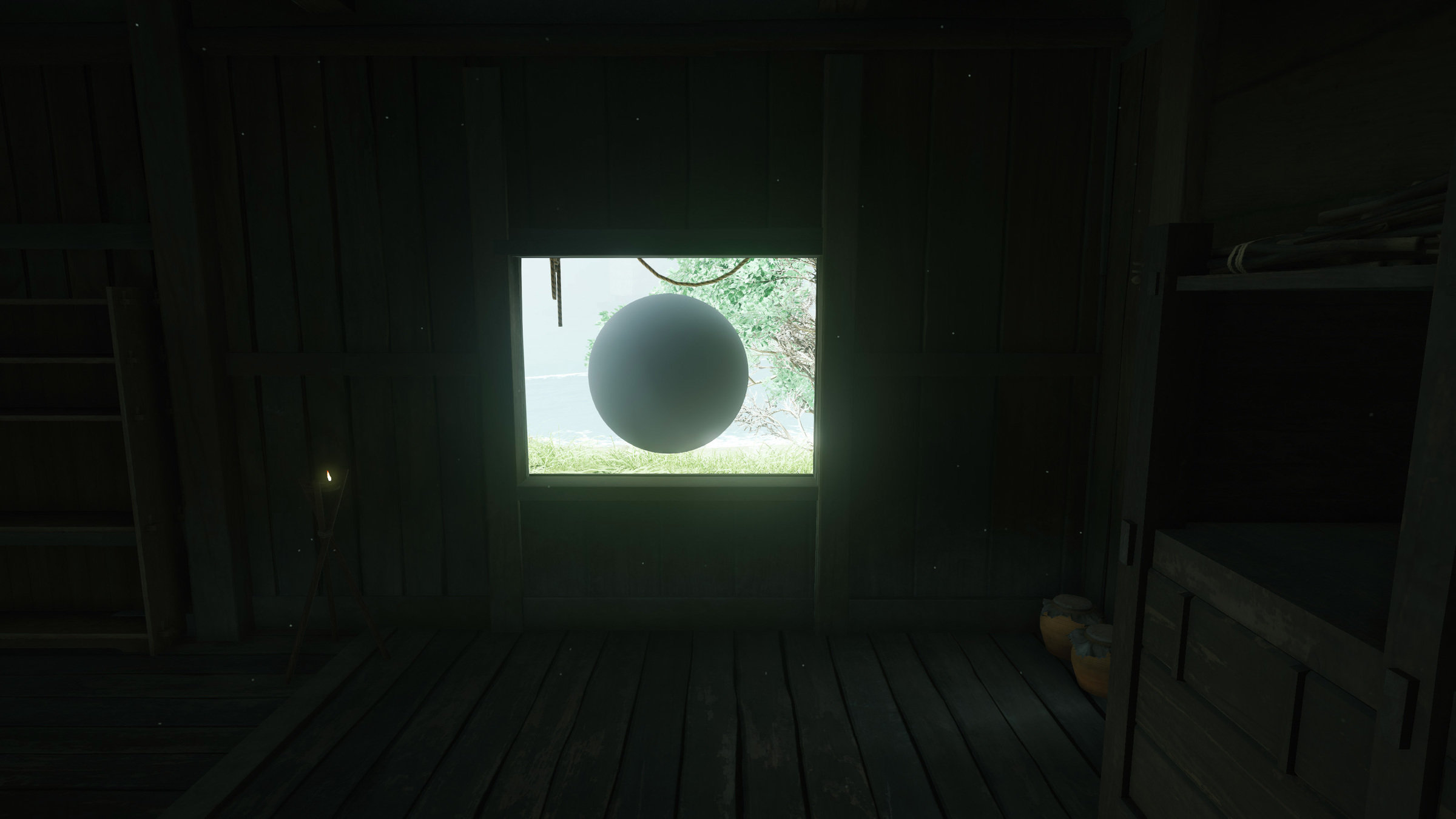

Light Leaking Solution

• Classify tetrahedral mesh probes as interior or exterior
• Assign surfaces a 0-1 interior mask \(w_\textrm{interior}\)
  • ​Geometry property or shader parameter
  • Vertex paint
  • Deferred decal
• Calculate barycentrics as normal, then multiply by weight:
  • \(w_\textrm{interior}\) for interior probes
  • \(1 - w_\textrm{interior}\) for exterior probes
• Renormalize barycentrics (use original if all 0)

Limitations

• Baked data is completely static
  • Objects that could move or be destroyed usually omitted from the bakes
• Bounced light assumption (shadowing \(\approx\) sky visibility) is often wrong
  • Bounced light either too strong or too dim
• No indirect light from local lights

• Seattle in Infamous used 230 static reflection probes
  • Already pushing memory limits
• Tsushima used 235
  • Extra data required for relighting
  • Streamed on demand
  • Per-biome default probes
  • Instanced interior probes
• Added support for nested probes
• Up to 128 relit probes at a time

• Offline captured data:

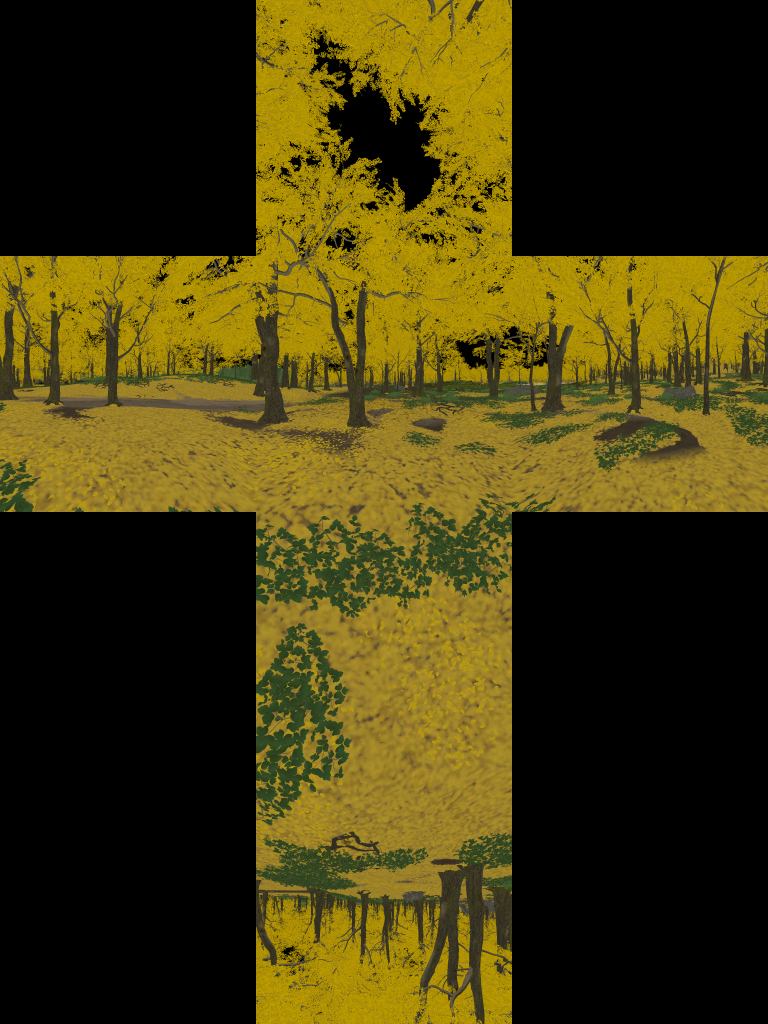

  • Albedo cube map (BC1 format)

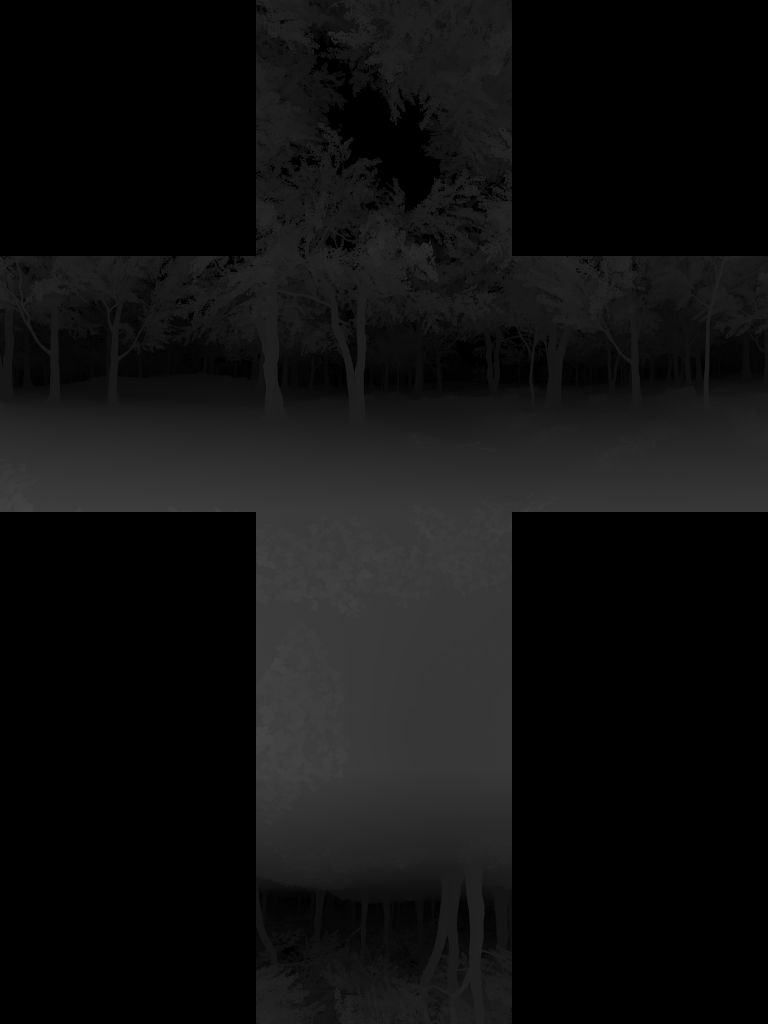

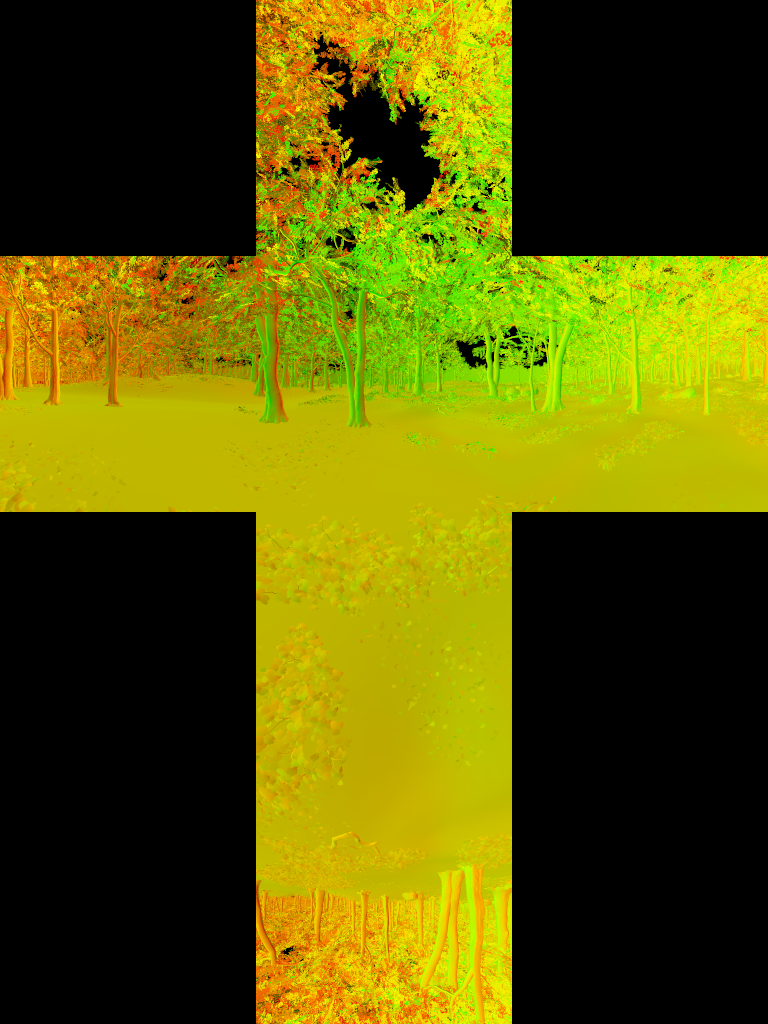

  • Normal + Depth cube map (BC6H format)
    • RG: Octahedral normal encoding
    • B: Depth (hyperbolic)
  • All cube maps 256x256x6

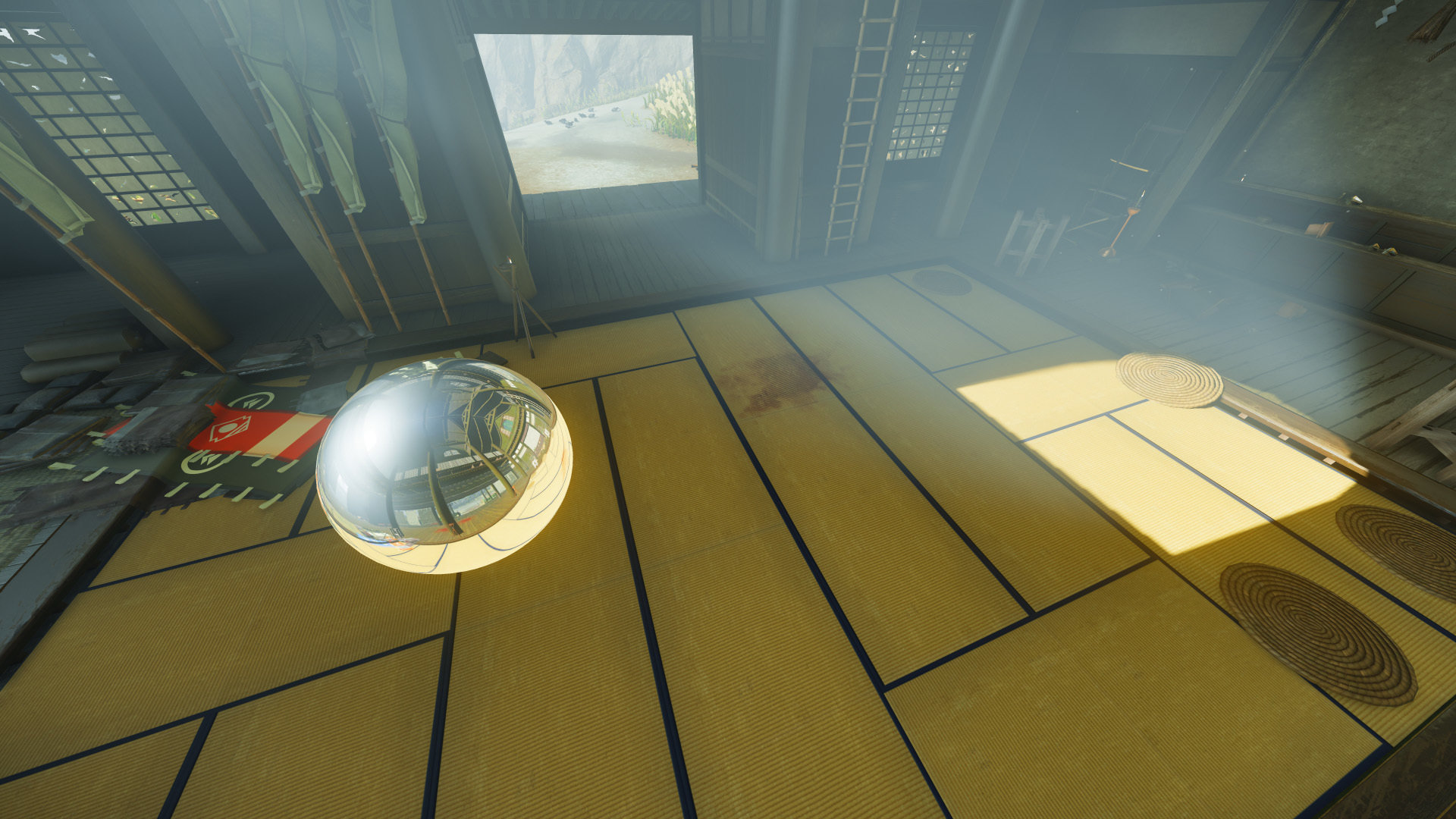

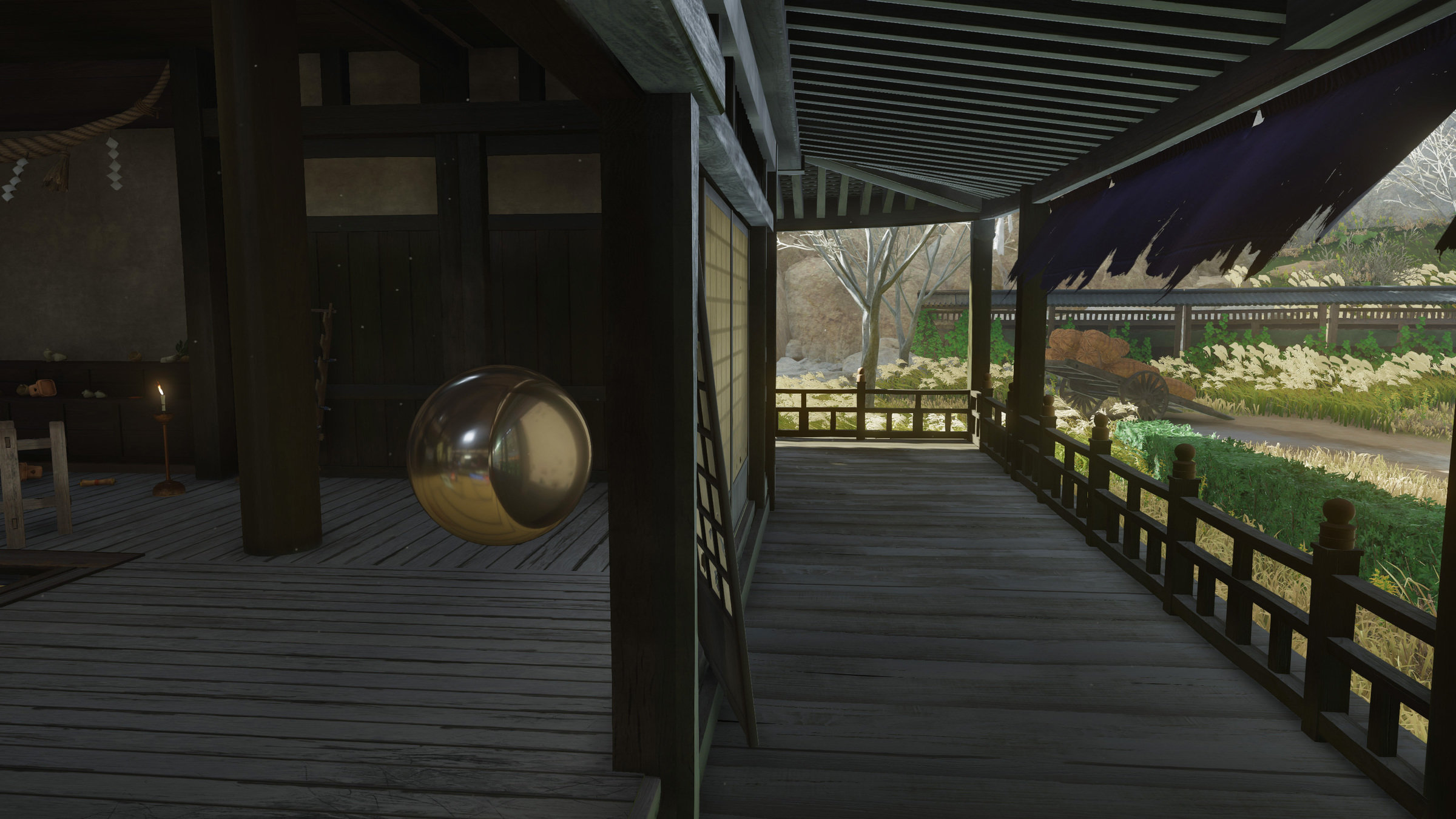

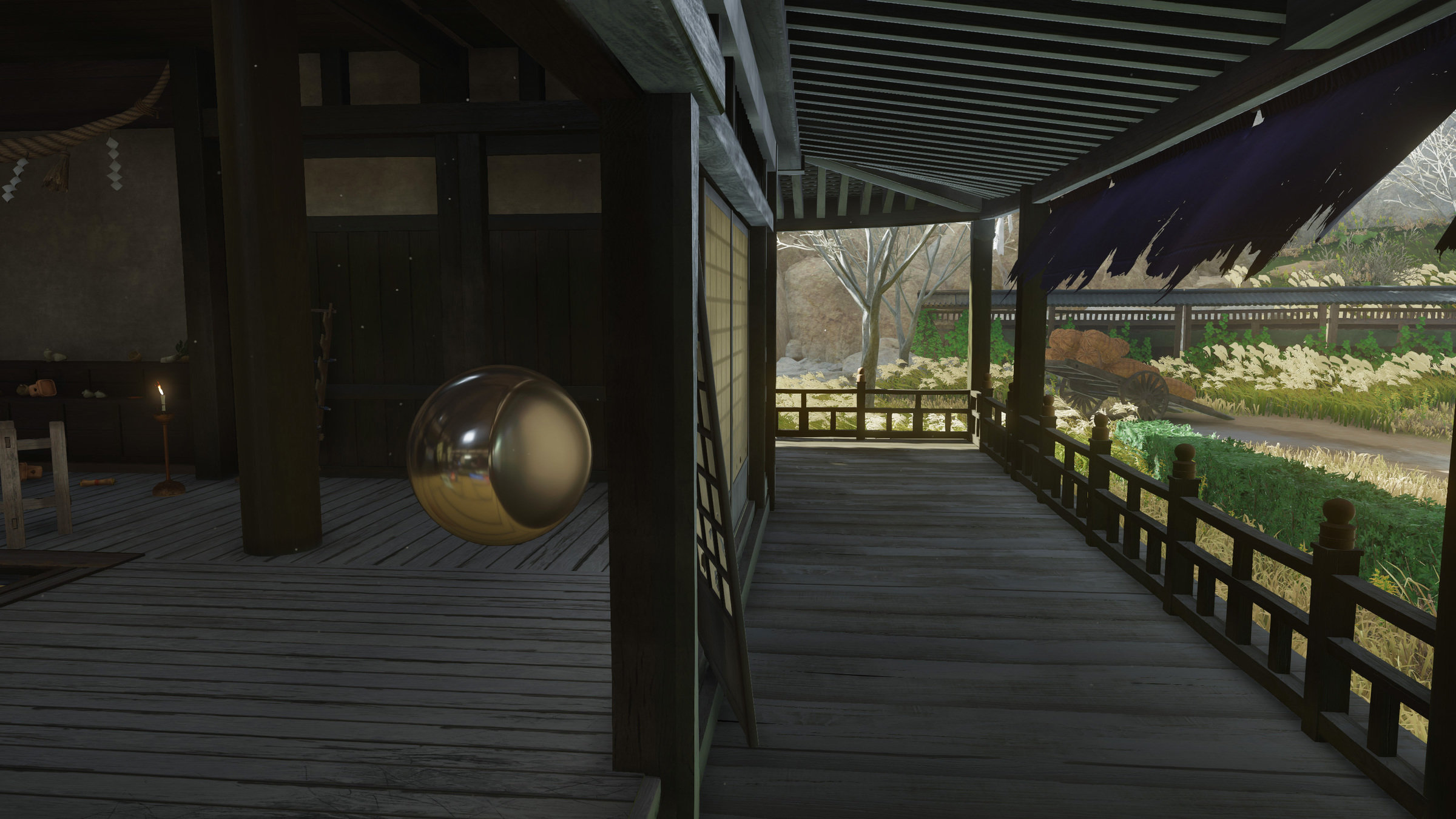

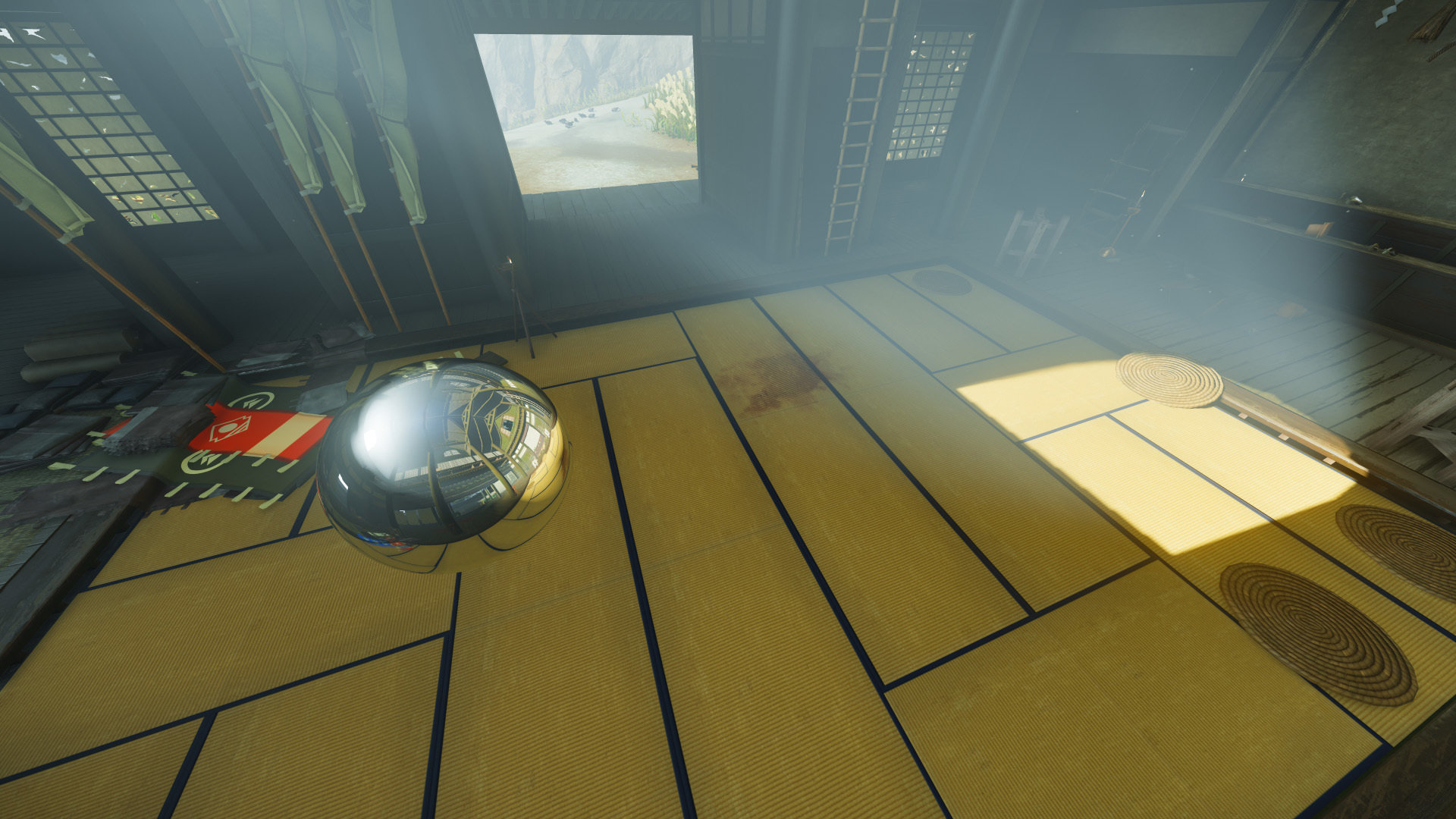

Reflection Probe Relighting

• Performed round-robin in async compute (one per frame)
• Shadowed with far shadow map atlas
  • Per-tile shadow map, 128x128 texels
• Single SH sample for indirect lighting
  • Also used as for reflection probe luminance for normalization
• Prefiltered using filtered importance sampling
• Compressed to BC6H using GPURealTimeBC6H
  • Reduced memory footprint and improved sampling performance

Cube Map Shadow Tracing

• Far shadow maps insufficient for shadowing interiors
  • Combination of low shadow resolution and LOD

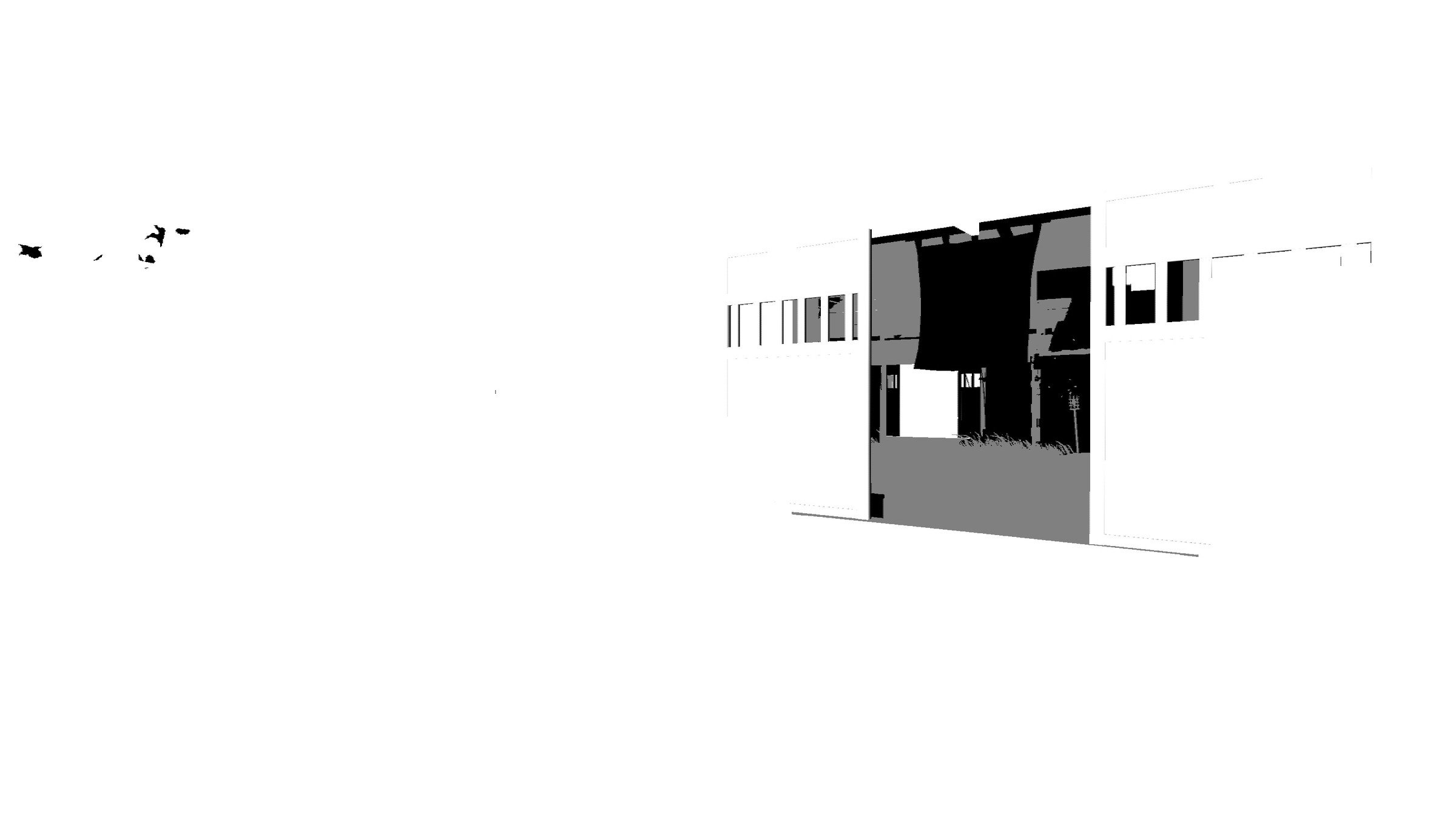

• Insight: depth cube maps have lots of occlusion information
• When relighting each cube map texel:
  • Find intersection of directional light ray
    with cube map volume
  • Sample depth at intersection
    • Sky depth \(\Rightarrow\) unoccluded
    • Used 4x4 PCF

Cube Map Shadow Tracing

• Fairly crude, but cheap and effective

Horizon Occlusion

• Account for occlusion of underlying geometry on reflection cone caused by tilt of normal-mapped normal \(\mathbf{\hat{n}}_\mathrm{m}\) relative to vertex normal \(\mathbf{\hat{n}}_\mathrm{v}\)
• Fast, approximate, plausible results
• For GGX roughness \(\alpha\), the cone half-
  angle \(\theta_{c}\) containing the fraction \(u_\mathrm{e}\) of the
  energy is given by

Horizon Occlusion

Horizon Occlusion

Horizon Occlusion

Horizon Occlusion

Horizon Occlusion

Roughness Parallax Compensation

• Parallax correction within reflection probe volumes
  distorts apparent roughness
• For current eye position \(d_e\) units from sample location,
  with cube map capture location \(d_c\) units away,
  we have


• So, when sampling the cube map we use

Performance (Base PS4)

• Shadow tracing accounts for ~16% of the relighting cost
• Horizon occlusion accounts for ~3% of deferred lighting cost
• Roughness parallax compensation has negligible cost

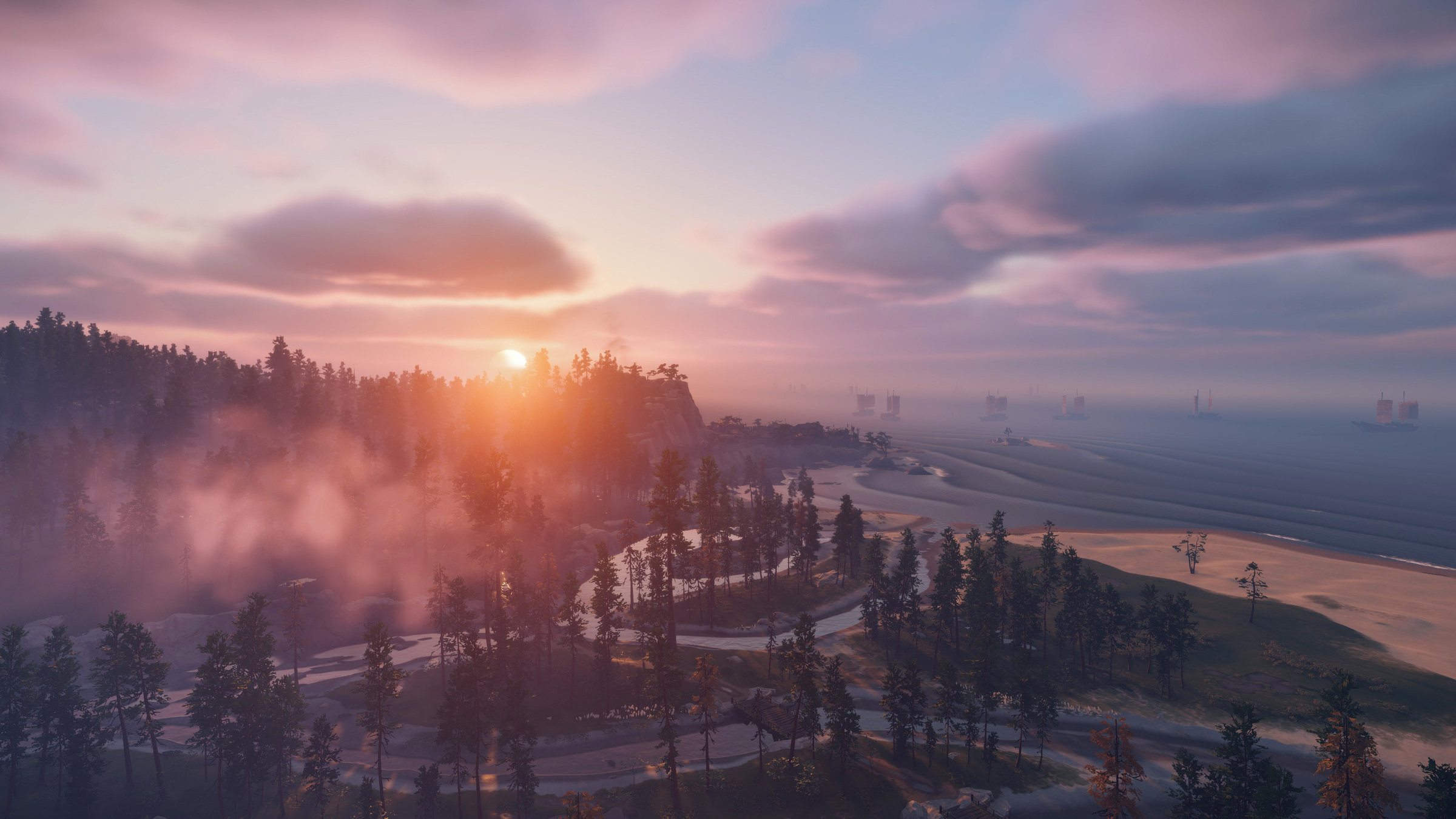

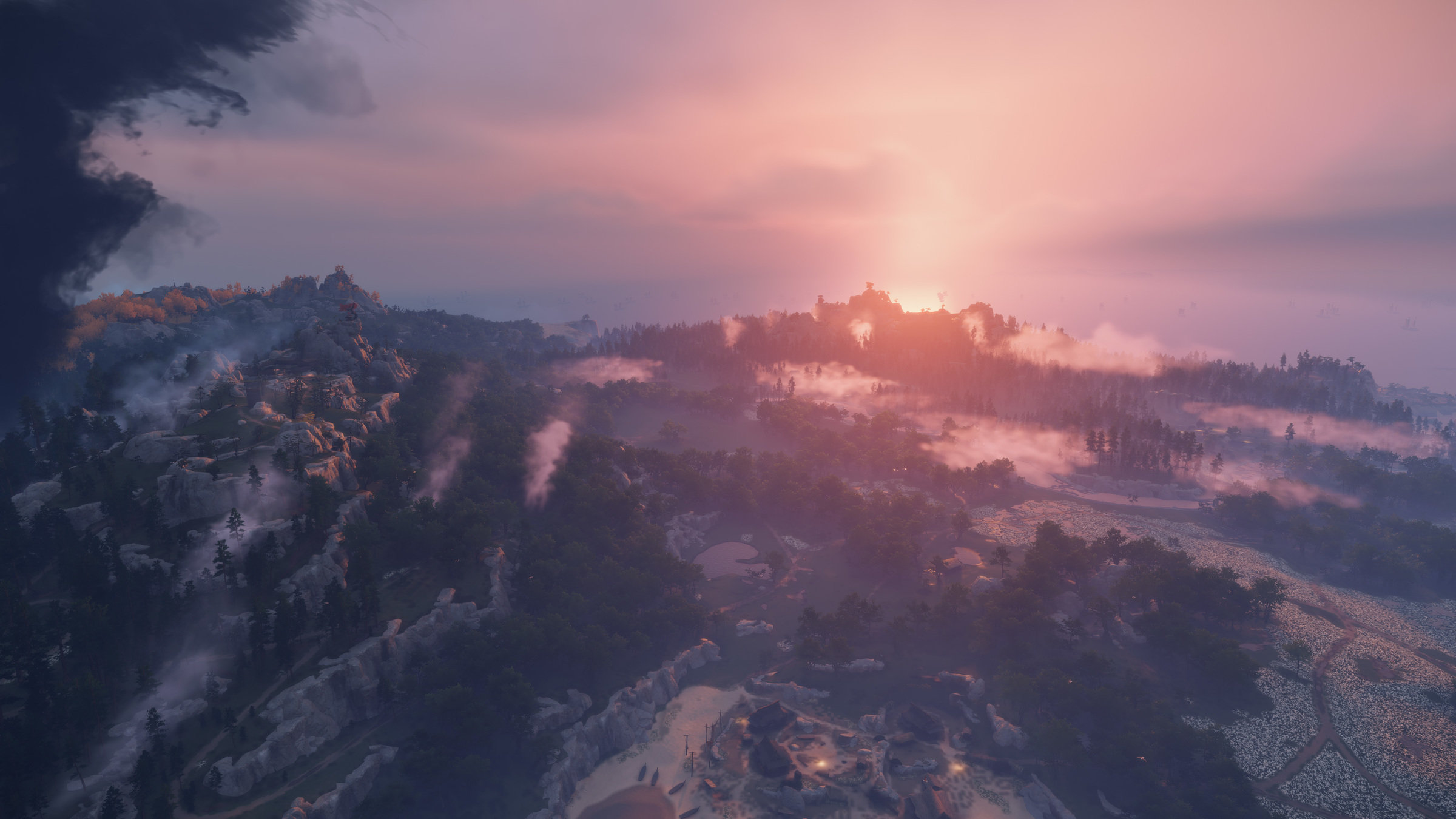

• All of our atmospheric lighting used pre-calculated 3D LUTs
  • Rayleigh and Mie inscattering (divided by phase functions)
    indexed by altitude, sun/moon polar angle, and
    view polar angle
  • Multiple scattering
  • Bruneton08, Elek09, Yusov13
  • Analytic Earth shadow term
• Precision issues when using this LUT to light clouds, haze, and fog
  • Extended with parallel LUT to store radiance divided by phase function
  • I.e., average irradiance

• Apply shadowing to the Mie irradiance, and ambient occlusion to the Rayleigh irradiance
  • Mie phase function is strongly forward-scattering
  • Rayleigh scattering is closer to uniform
• Haze uses average sky visibility for AO
  • Plus rain shadow map for interiors
• Clouds render to a paraboloid texture
  • ​Rgb11f
  • Red: Mie
  • Green: Rayleigh
  • Blue: Transmittance

• Each frame, resample 3D LUTs into 2D for current sun and
  moon angles
• Upsample using cubic filtering to avoid aliasing at sunrise
  and sunset
• Makes later lookups cheaper

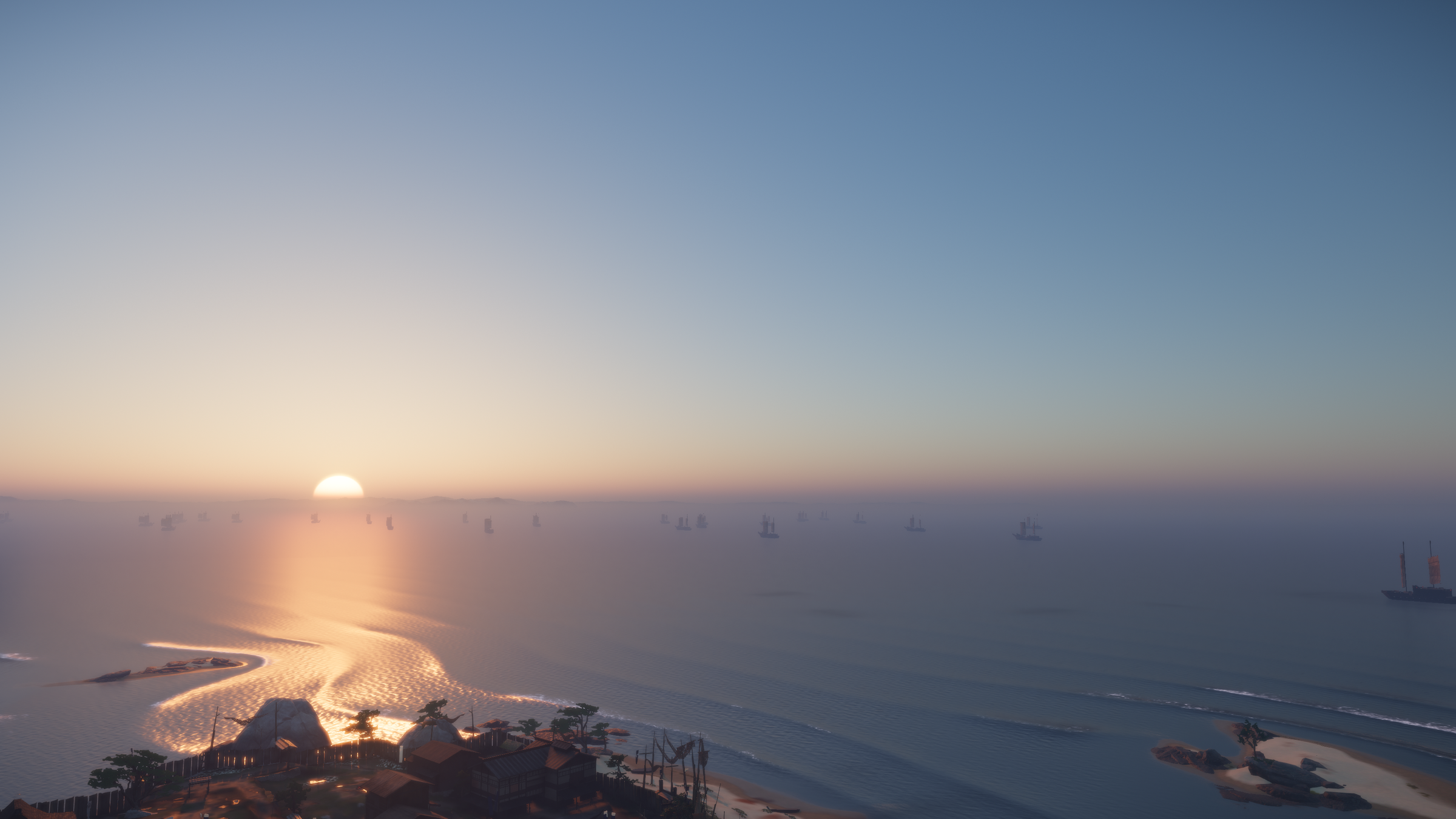

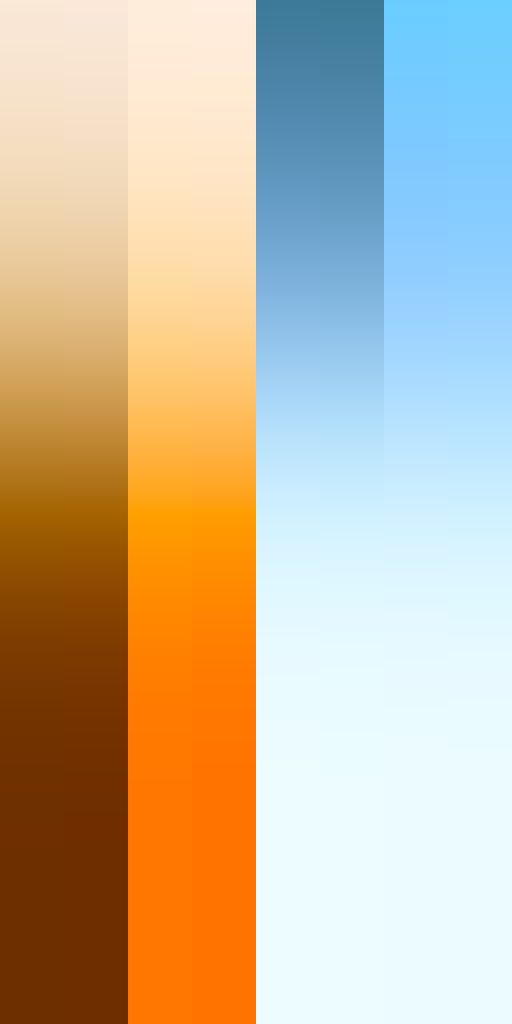

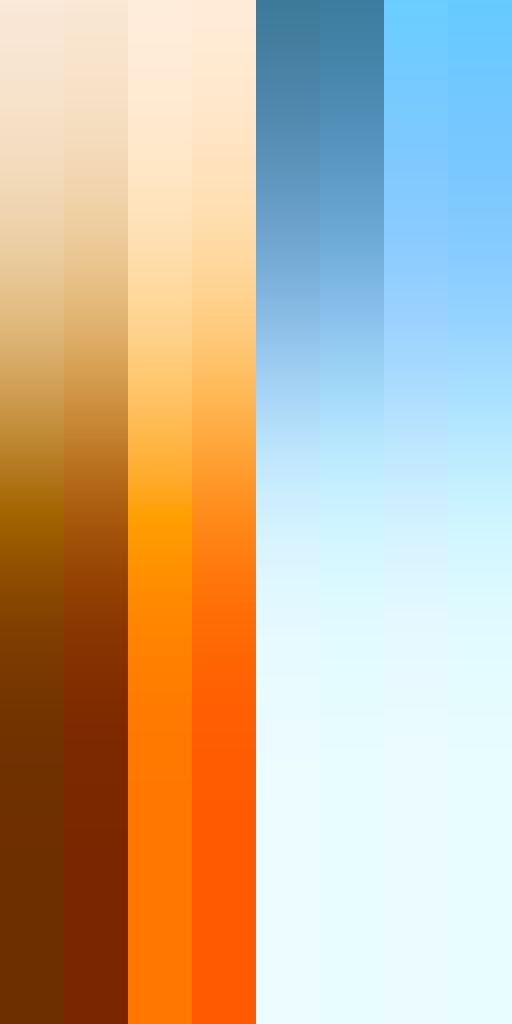

Custom Rayleigh Color Space

• The atmosphere drives most of our world lighting, so
  getting Rayleigh scattering right was important
• A blog post by Christian Schüler gave us the idea to try to find a color space that gave results closer to spectral rendering
• Minimized the error in Rayleigh transmittance in two steps:
  1. Choosing three wavelengths (LMS) for our primaries with point-sampled Rayleigh coefficients
  2. Refined the Rayleigh coefficients for the color space chosen in step 1.

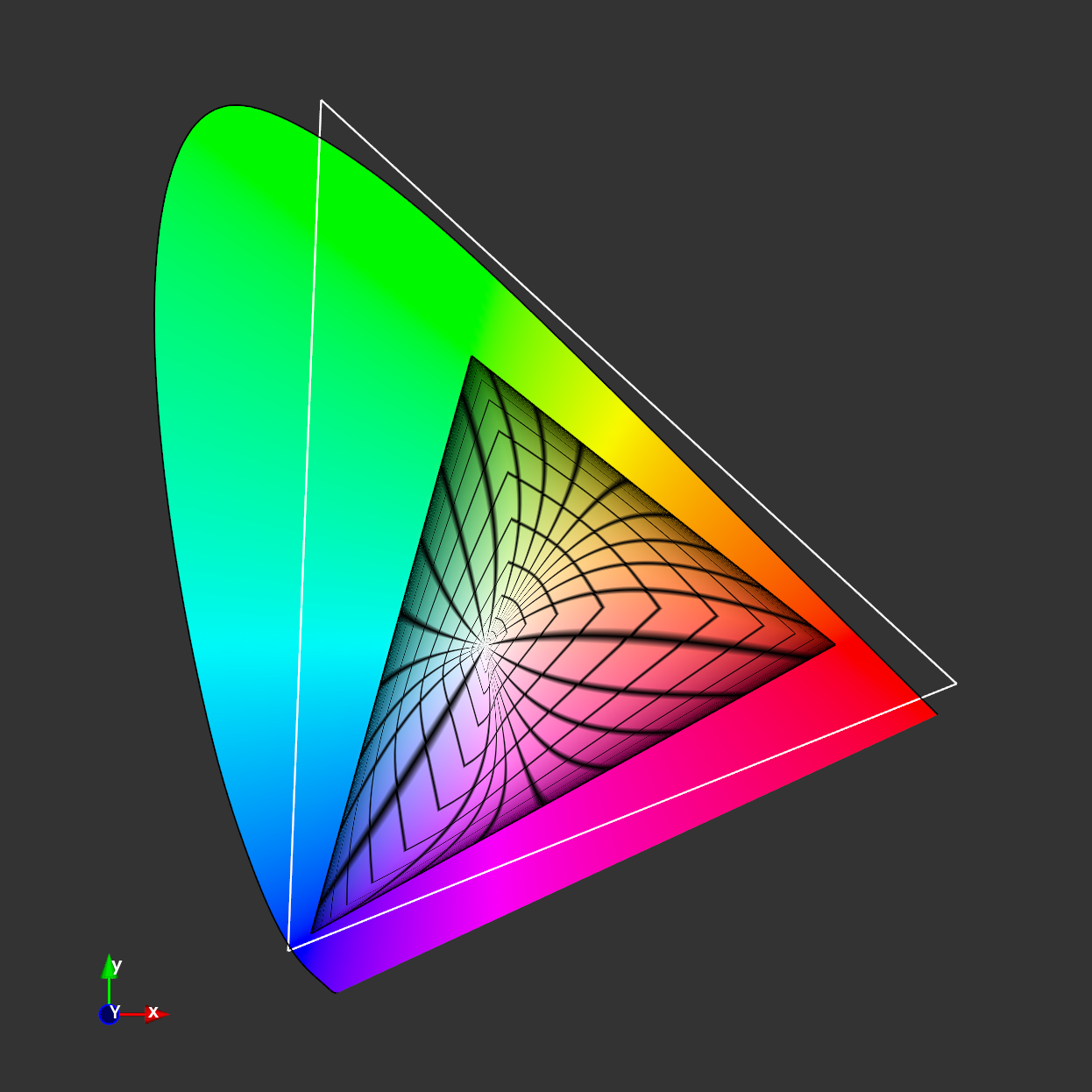

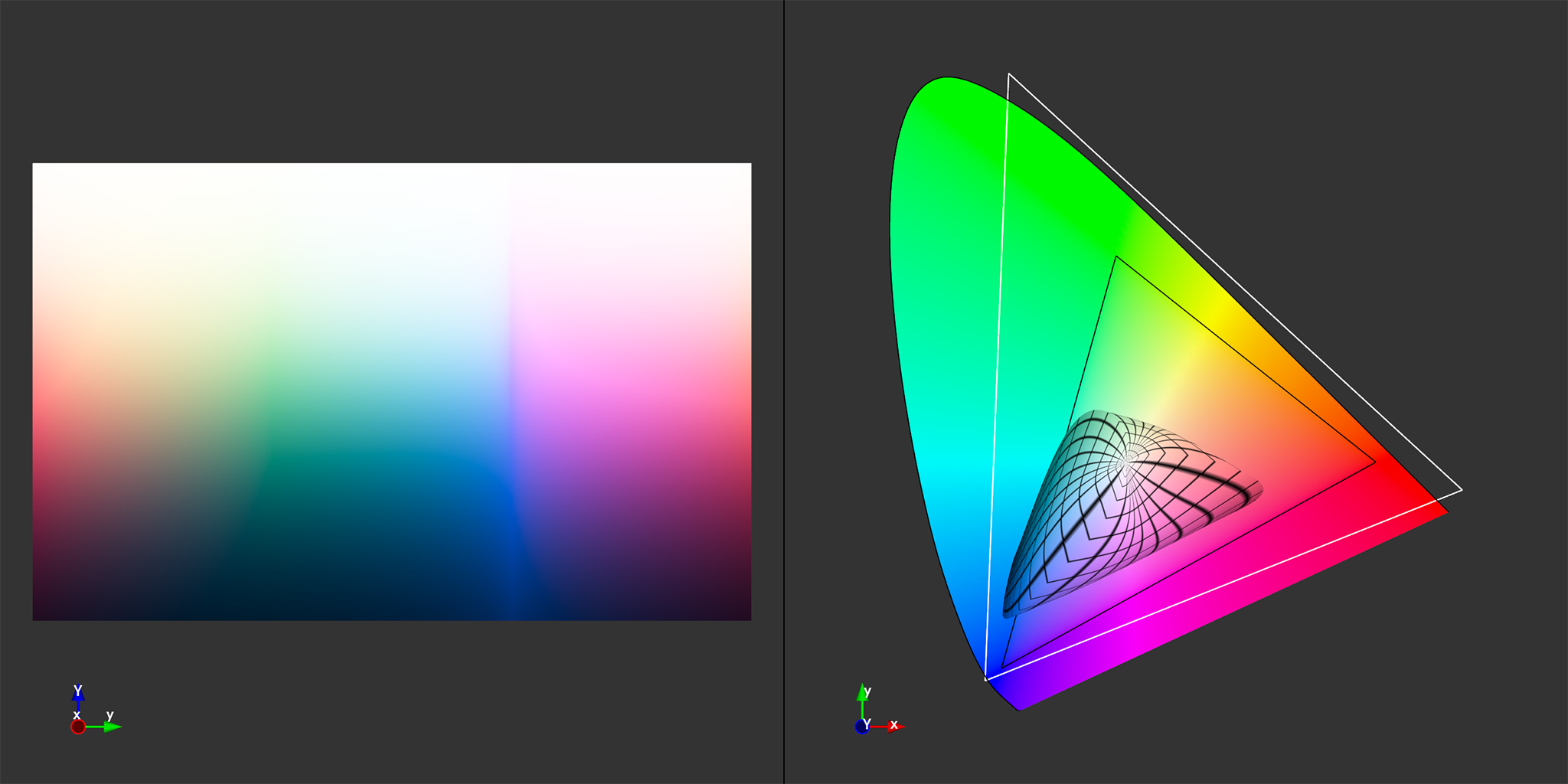

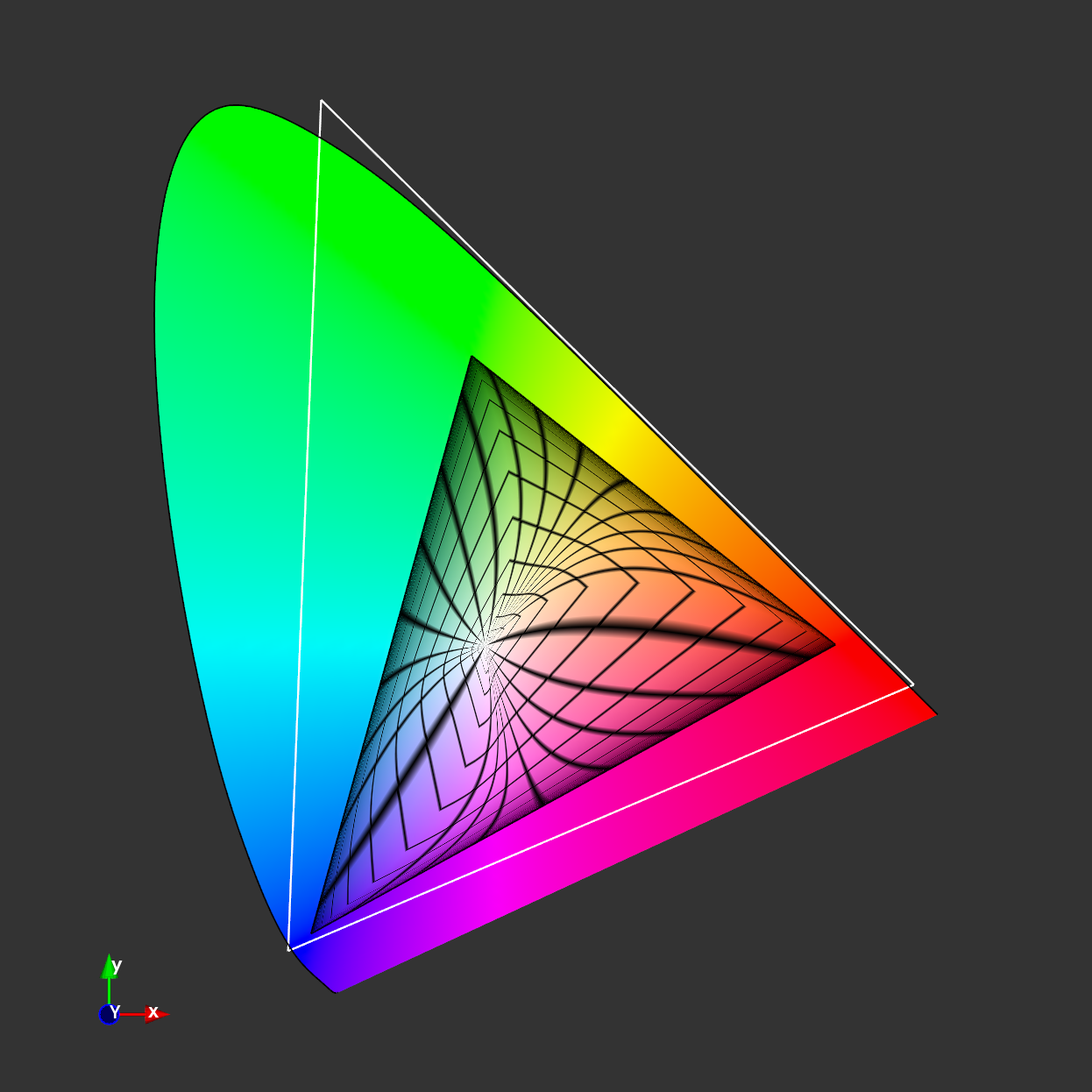

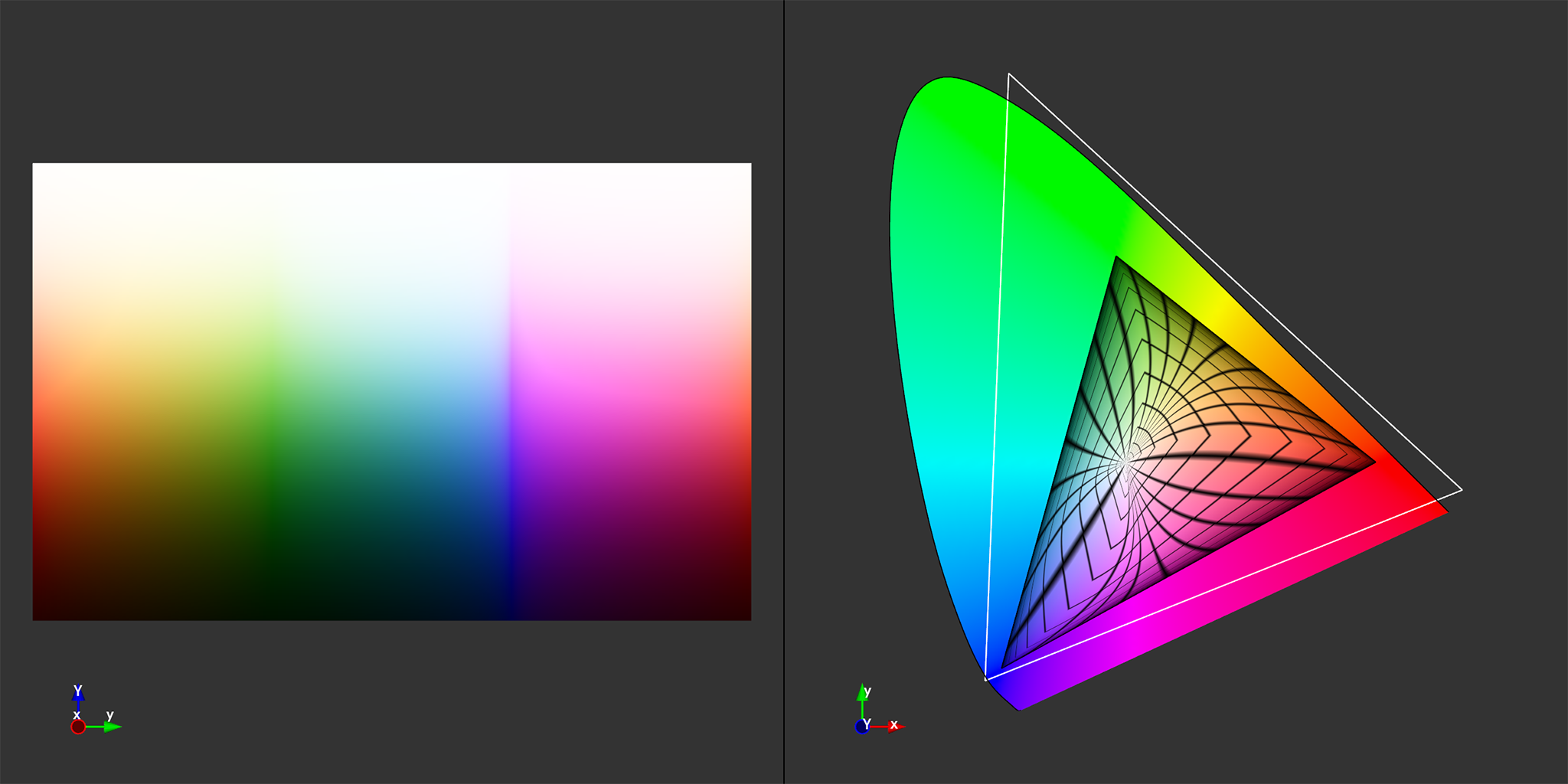

Custom LMS Rayleigh Color Space

White point (D65):

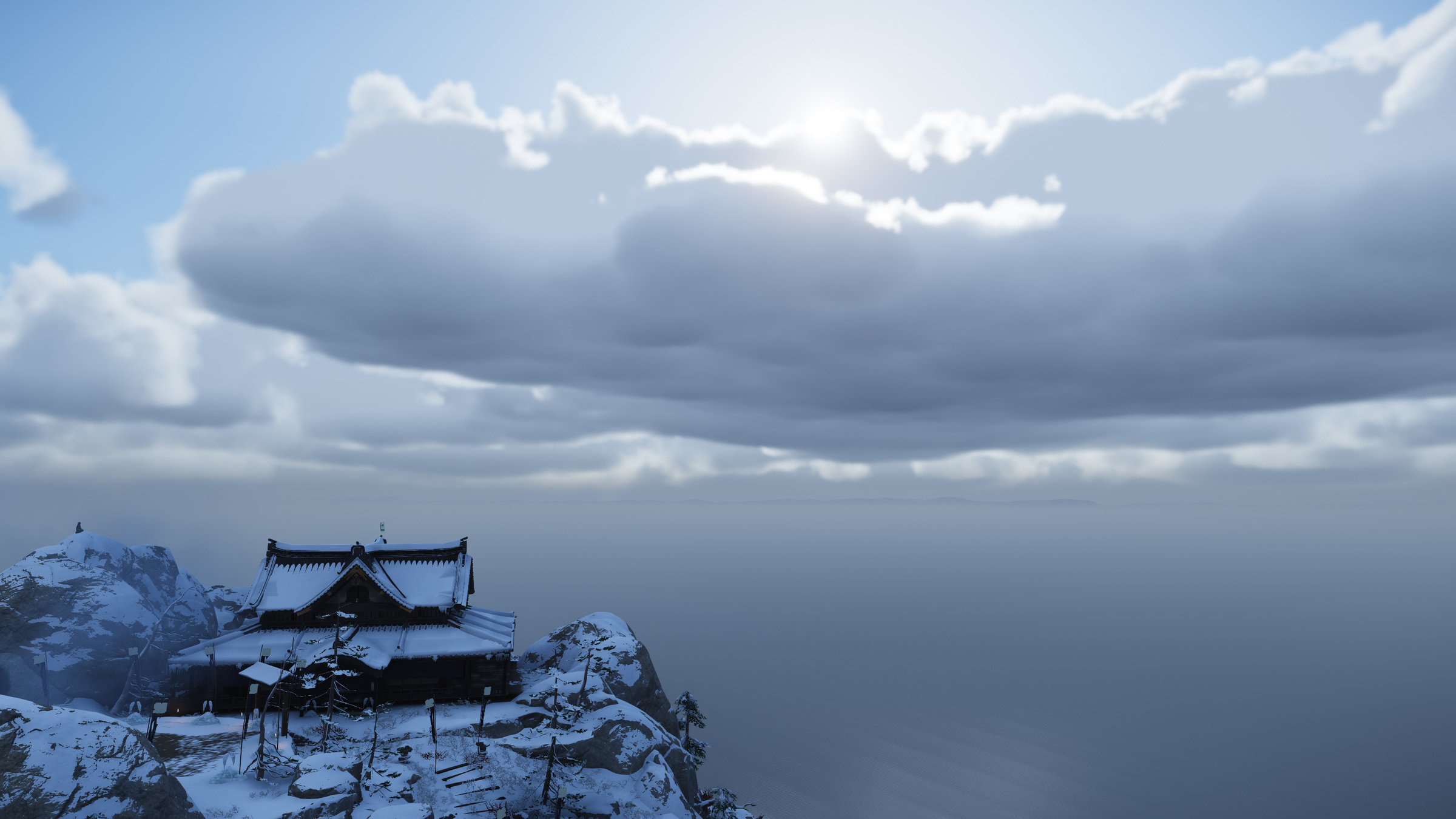

• Schneider 2015, Hillaire 2016

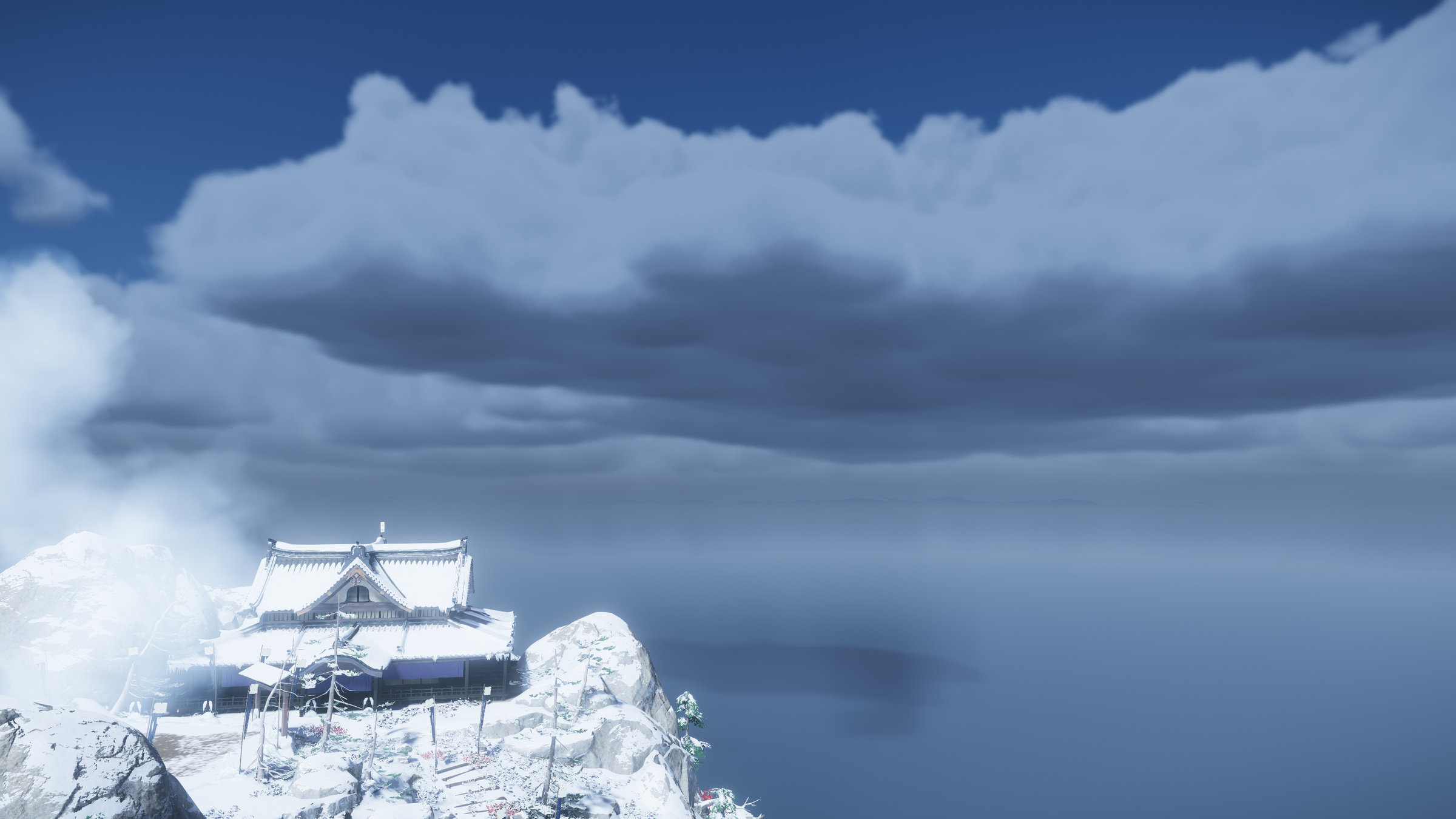

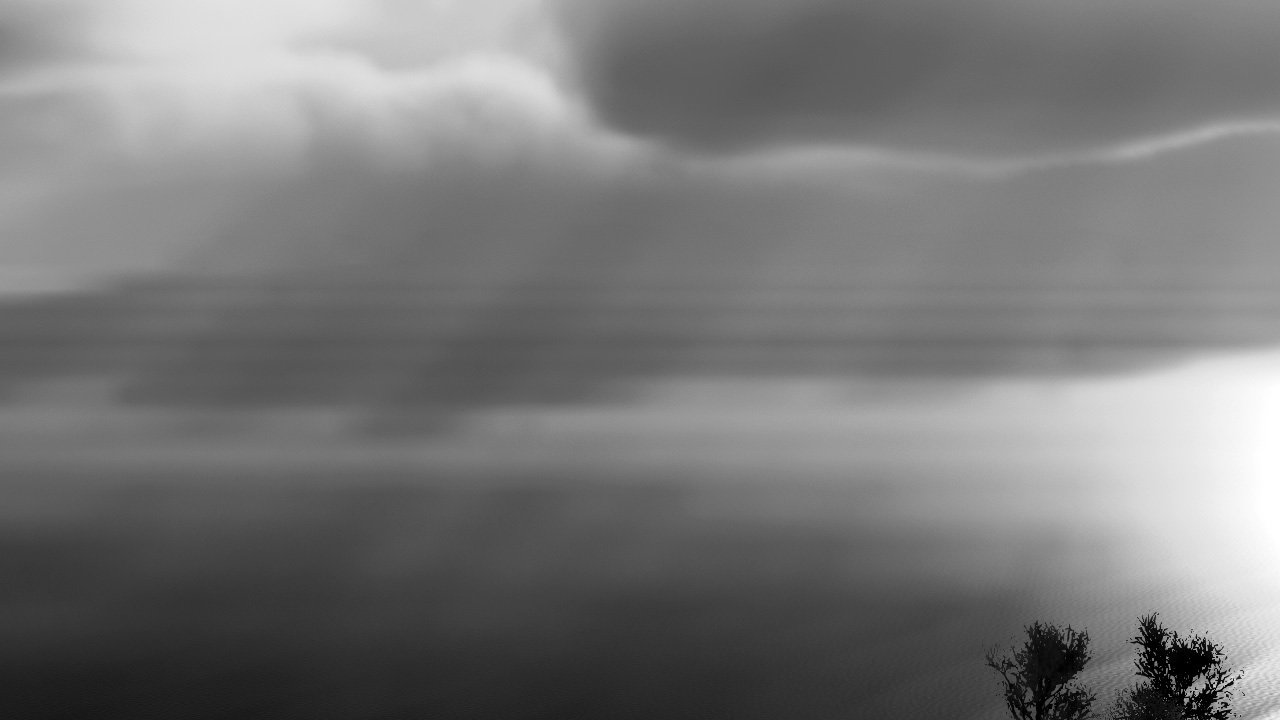

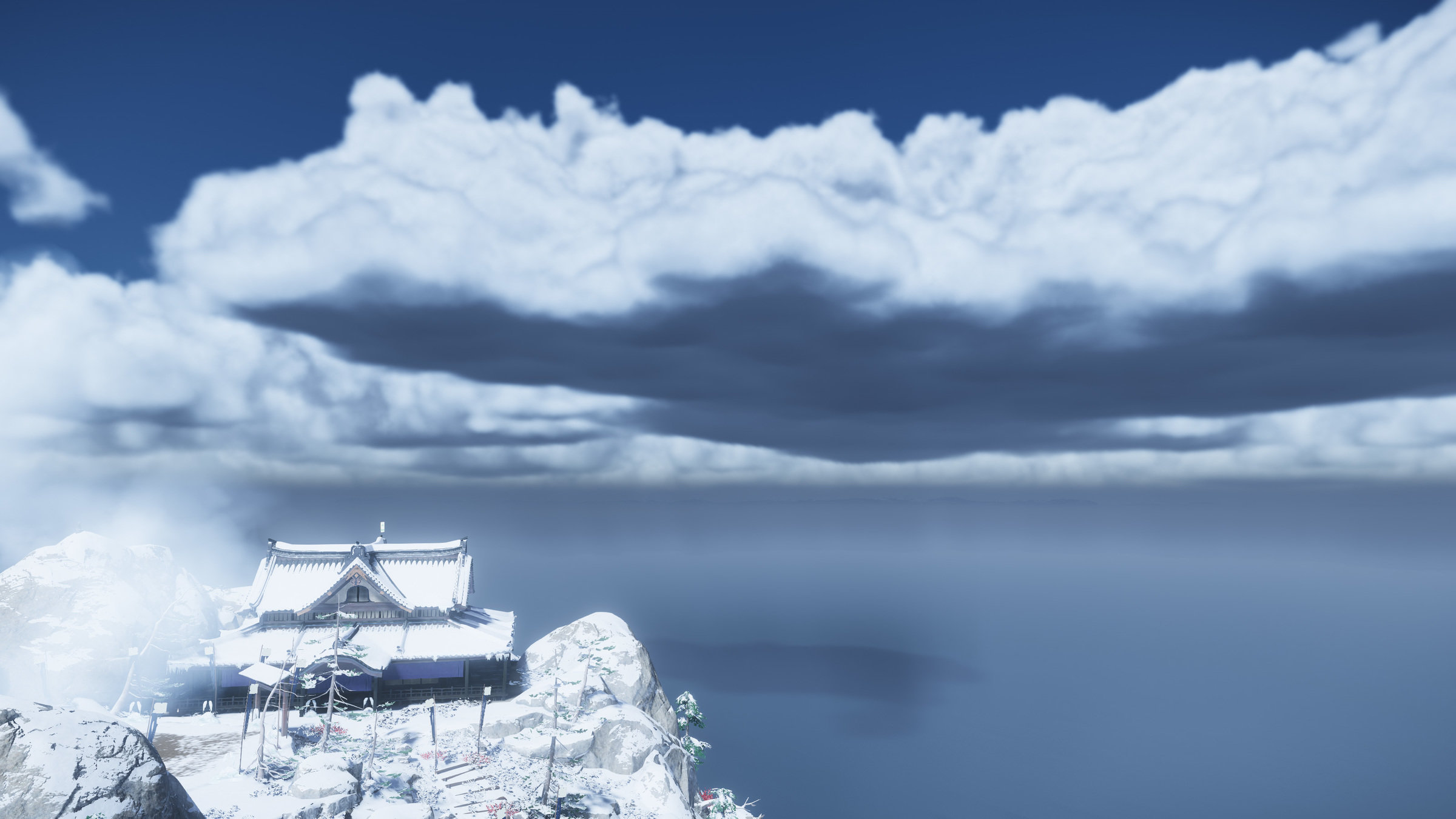

• Clouds rendered to 768x768 paraboloid texture
  • Three textures:
    • Two for scrolling & lerping
    • One for rendering (timesliced over 60 frames)

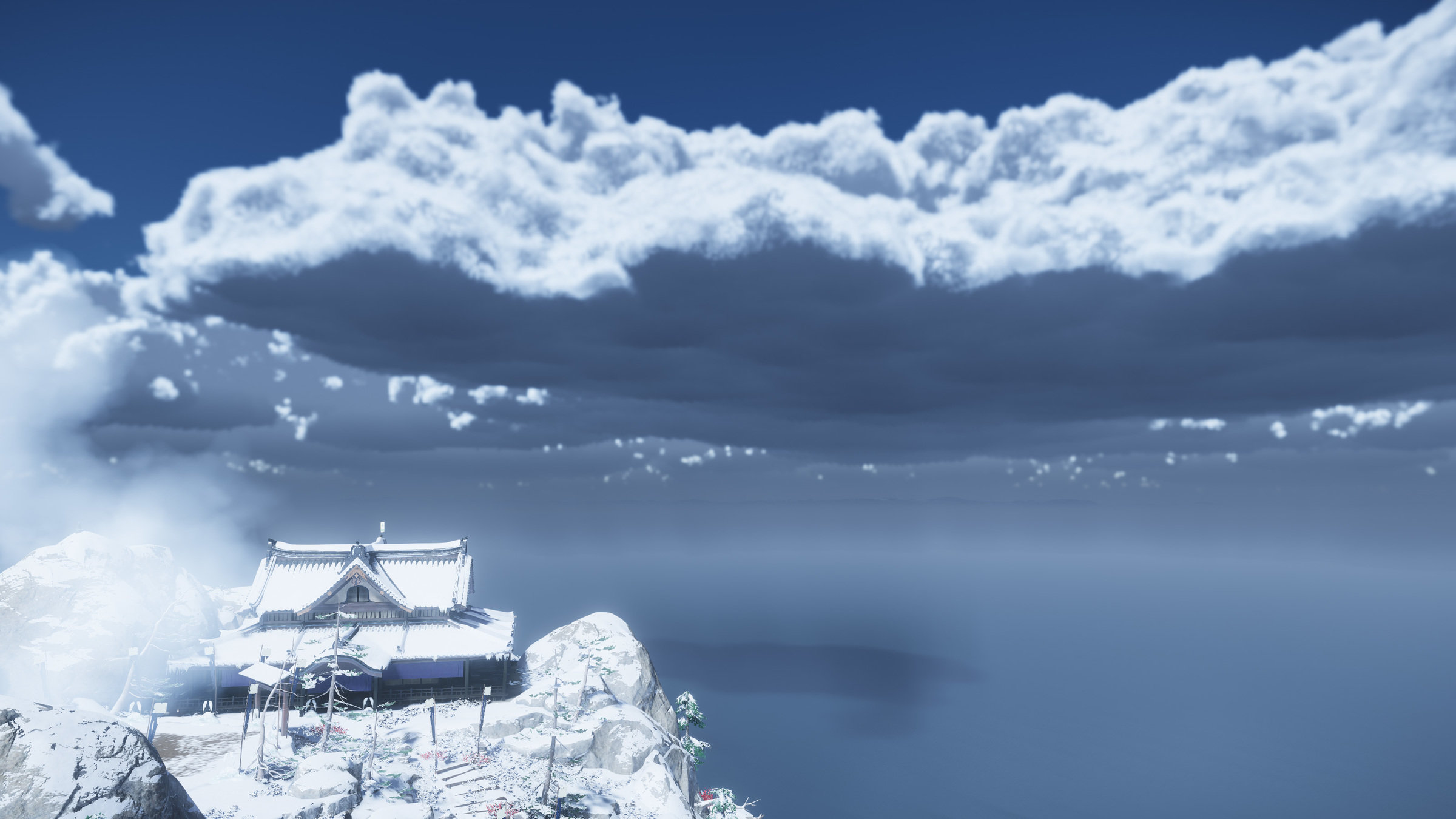

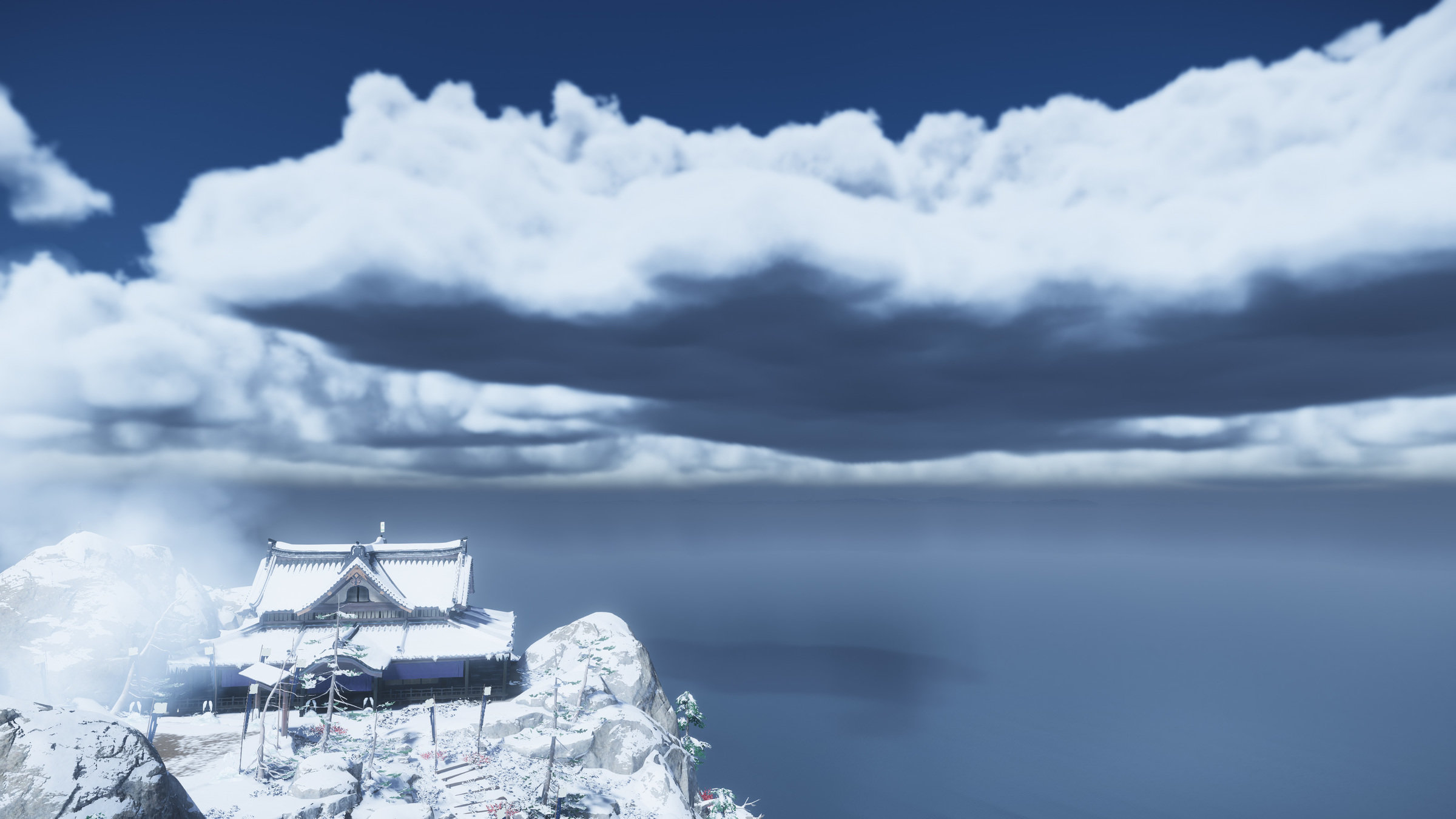

• Antialiasing for cloud density:
  • Calculate derivatives of:
    • Radial cloud position with radial texture coordinate
    • Angular cloud position with angular texture coordinate
  • Reduce cloud density when derivative is high

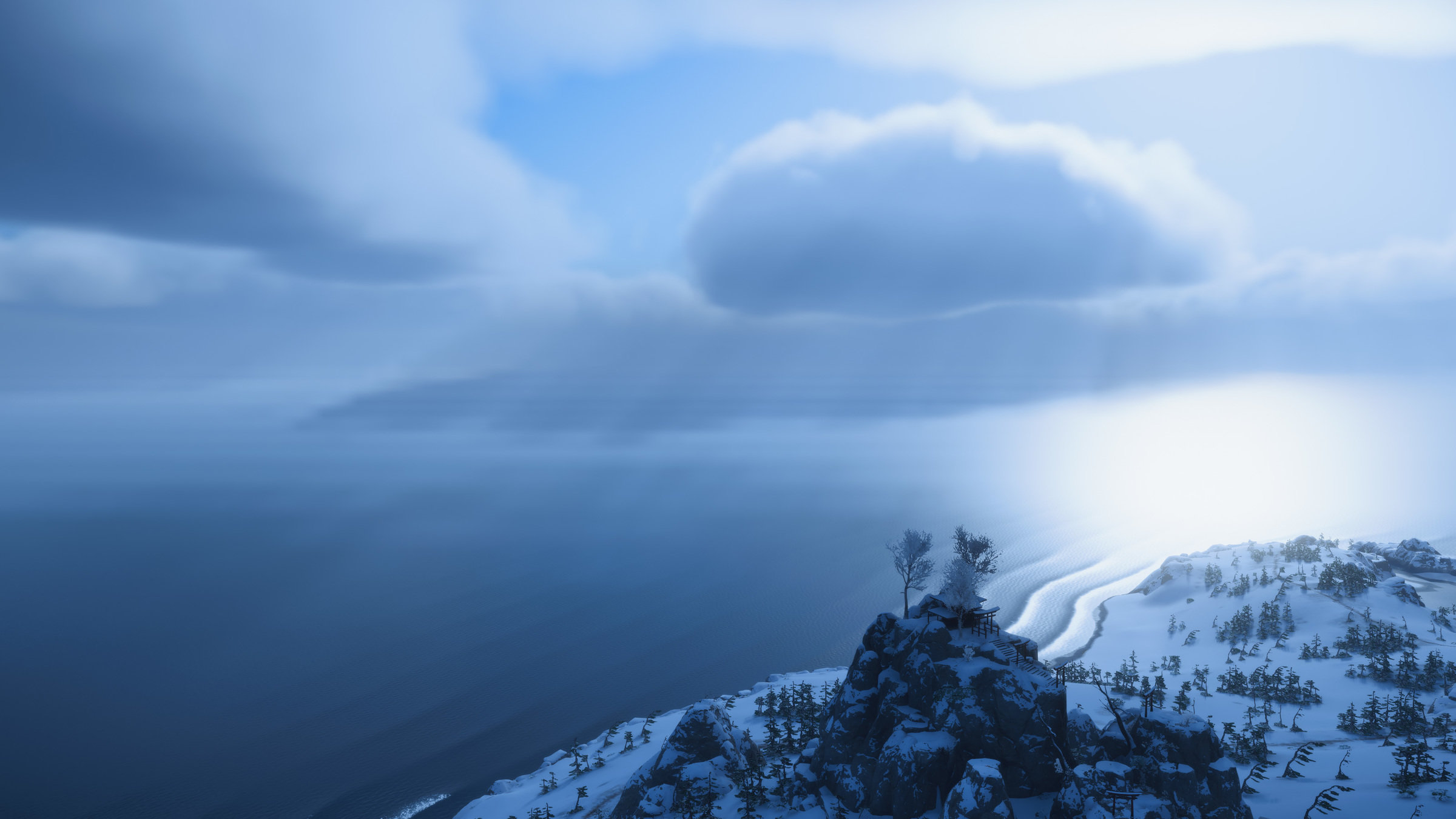

• For Mie scattering, use Henyey-Greenstein phase function
  • Asymmetry \(g\) depends on how “deep” we are in cloud
  • Estimate using product of:
    • Transmittance to light
    • Transmittance of current raymarch segment
  • 0 \(\Rightarrow\) Backscattering (\(g\approx -0.15\))
  • 1 \(\Rightarrow\) Forward Scattering (\(g\approx 0.85\))
  • Gives “silver lining” for backlit clouds, dark edges for front-lit clouds
  • Scale backscattering by ~2.16 to account for multiple scattering
    • Based on simulation with albedo of 0.9

• Wronski 2014, Drobot 2017a

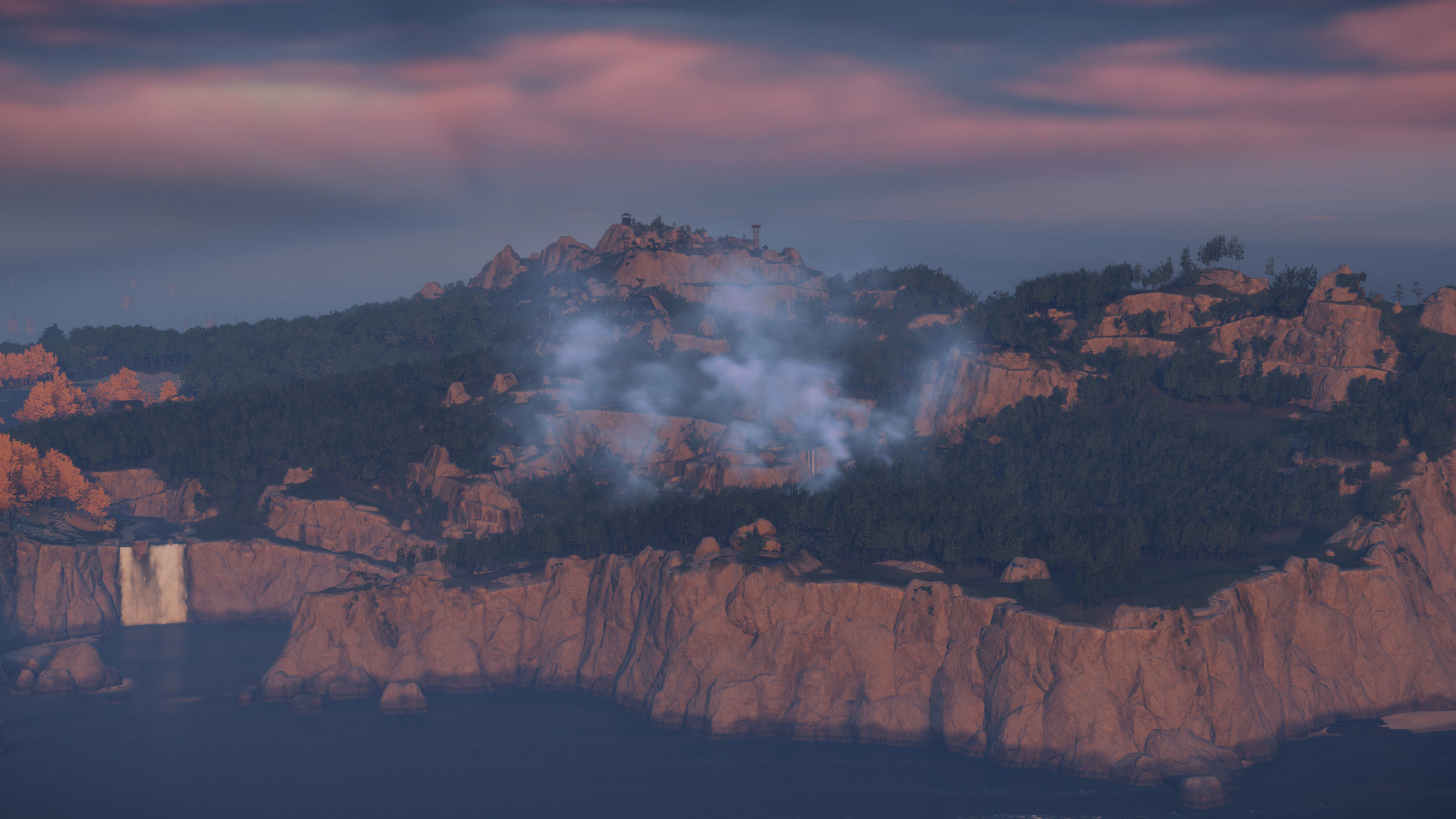

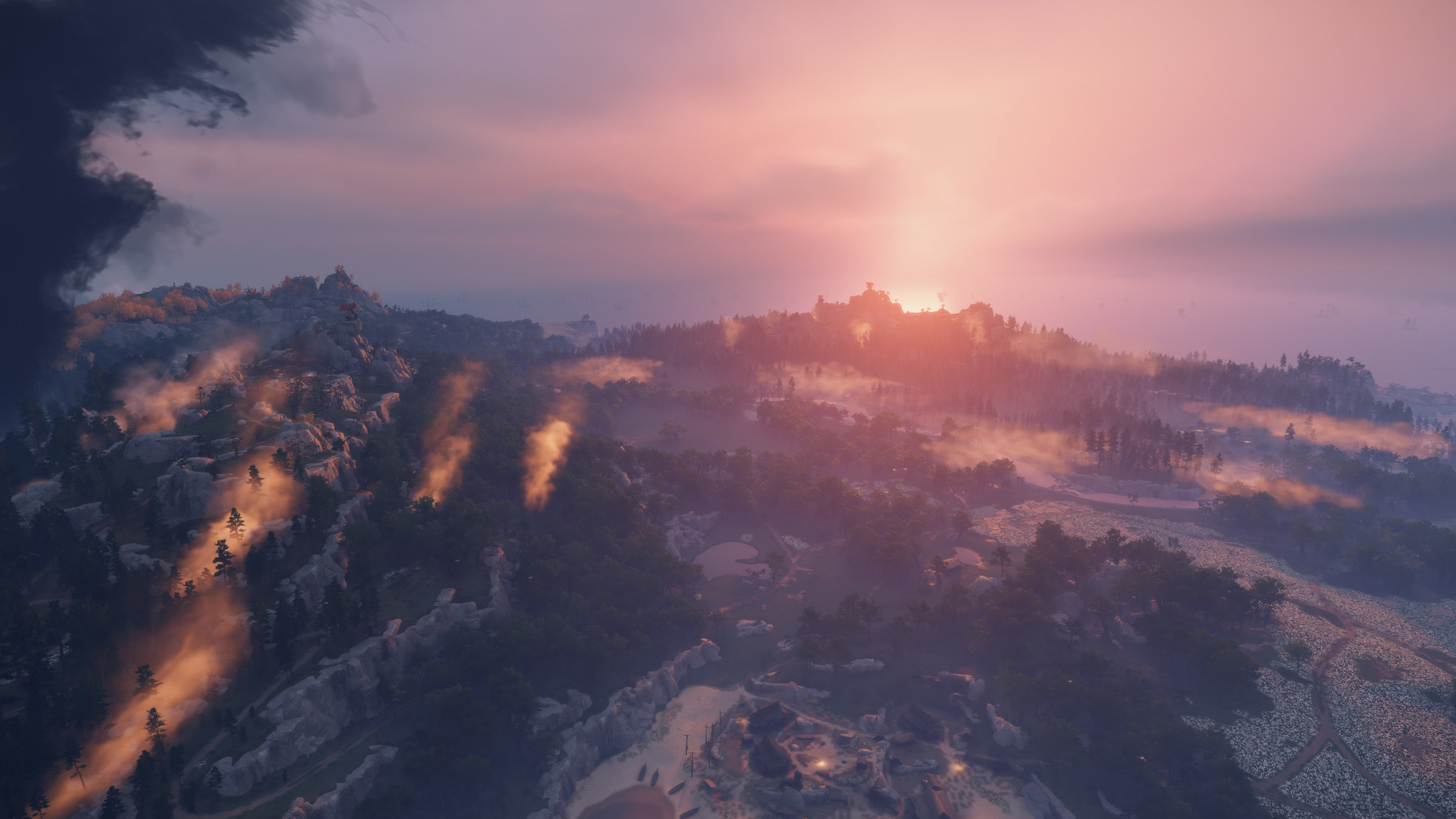

• Froxel grid, 128 W x 64 H x 64 D
• Covers entire depth range (10 cm to 100 km)
• Exponential depth distribution: \(\Delta z_{i+1} = 1.2 \Delta z_i\)
• Uses only analytic and integrable density functions
  1. Exponential height falloff: \(d(z) = d_e e^{\frac{-z}{k_e}}\)
  2. Sigmoidal height falloff:


• Local variation added with particles

• Single compute dispatch populates froxel grid
  • Integrate inscattering front to back with quad swizzling  using 4x4x4 threadgroups (Drobot 2017a)
  • Temporal filtering:
    • Shadow and ambient fraction (RG16f)
    • Local lighting (RGB11f)
  • Skip lighting of occluded froxels
    • Still compute shadow and ambient fraction to reduce reprojection errors
• Async compute (~0.5 ms on base PS4)

Local Lighting

• Tiled light culling compute shader also outputs lights for haze
• Light divergence between threads in haze compute shader
  hurts performance
• Using flat bit arrays (Drobot 2017b) for haze lighting was a big speedup
  • For forward-shaded materials, faster to use sorted light indices

Anti-Aliasing

• Froxel volume has very low resolution but covers entire view frustum (10 cm to 100 km)
• Using traditional approach results in bad aliasing at horizon and with thin haze layers (density aliasing)
• Solve by storing inscattered radiance divided by opacity
• Re-apply opacity per-pixel when compositing into scene

• Why does this work?
• First, assume that scattering \(\sigma_s(x)\) and extinction \(\sigma_e(x)\) are proportional, where \(c\) is the albedo:

• Start with the volume rendering equation for the inscattered radiance over distance \(d\):





• \(L_i(x)\) is the integral over the sphere of the incoming radiance times the phase function.

• Substitute for \(\sigma_s(x)\):

• Now assume that \(L_i(x)\) is relatively constant. Then

• Let \(\overline{L}_i(d)\) be the average of \(L_i(x)\) over \([0, d]\):

• This integral simplifies to:

• The term in square brackets is just the opacity \(\alpha(d)\):

• So, if we divide the inscattering \(L(d)\) by \(\alpha(d)\), we get:

• Therefore we can expect that \(L/\alpha\) is a smoother function than \(L\).

More Anti-Aliasing

• Use tricubic B-spline filtering to smooth and denoise
  • Relatively inexpensive on an Rgb11f buffer
    • Less than 50 us more than trilinear on PS4 Pro
  • See this Desmos graph (https://bit.ly/3wZ3aIs)
    for fast and accurate approximations of the
    weighting functions

Performance

• Optional “haze lighting” mode for particles
• In volumetric haze shader we also store \(L_i(x)\)
  • Sampled from LUTs, with phase functions, shadowing, and sky visibility fraction applied
  • Plus local light contribution
• Applied in particle shader by sampling froxel volume and multiplying \(L_i(x)\) times opacity
  • Sample using bicubic filtering when opacity exceeds threshold.

Multiple Scattering Approximation

• High-opacity particles are too dark when lit from the front
• Haze uses predominantly forward (Mie) scattering
• Inexpensive, approximate compensation:
  • On CPU, calculate ratio of a back-scattering phase function to haze Mie phase function for \(\mathbf{\hat{v}} = \mathbf{\hat{l}}\) and \(\mathbf{\hat{v}} = -\mathbf{\hat{l}}\)
  • In shader, lerp between these two values based on \(\mathbf{\hat{v}}\cdot\mathbf{\hat{l}}\) to get a multi-scattering scale factor \(r_\mathbf{MS}\)
  • Lerp from 1 to \(r_\mathbf{MS}\) based on opacity, scale light
  • In practice, strength of effect was reduced for back scattering
    • Too bright when lacking Mie color contribution

• In the Infamous games, we struggled to maintain physically plausible diffuse albedo values
  • Exposure \(\Leftrightarrow\) Albedo feedback loop
  • Resulted in albedo values that were too dark
• Created a diffuse color reference chart

• In the Infamous games, we struggled to maintain physically plausible diffuse albedo values
  • Exposure \(\Leftrightarrow\) Albedo feedback loop
  • Resulted in albedo values that were too dark
• Created a diffuse color reference chart
• Switched to a primarily illuminance-based exposure system
  • Use luminance only if highlight luminance exceeds threshold
    • E.g. Fire particles, bright specular highlights

Dealing with Dynamic Range

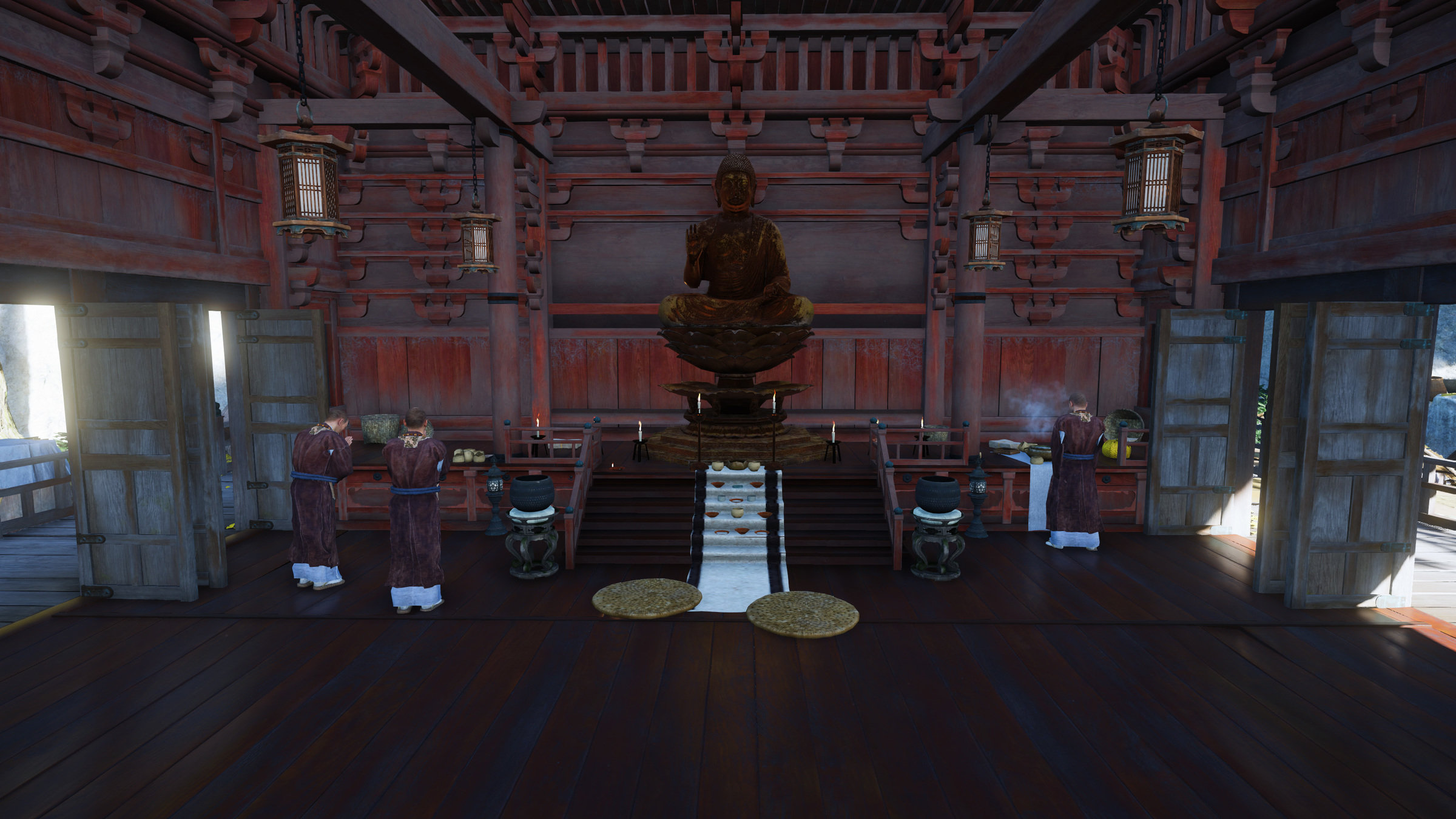

• Dim interior lighting
  • Large variation between interior and exterior luminance
  • Maintain visibility while avoiding “blow-outs”
• Skies drove most of our lighting
  • Brighter than environment
  • Wanted to avoid losing color
• See Bart Wronski's blog post for a discussion of this problem

Dealing with Dynamic Range

• In photography and cinematography:
  • Graduated filters
  • Special lighting rigs, bounce cards
  • Dodging & burning
  • Digital shadow/highlight adjustment
  • HDR photography using multiple exposures
• Human visual system capable of perceiving a very wide dynamic range

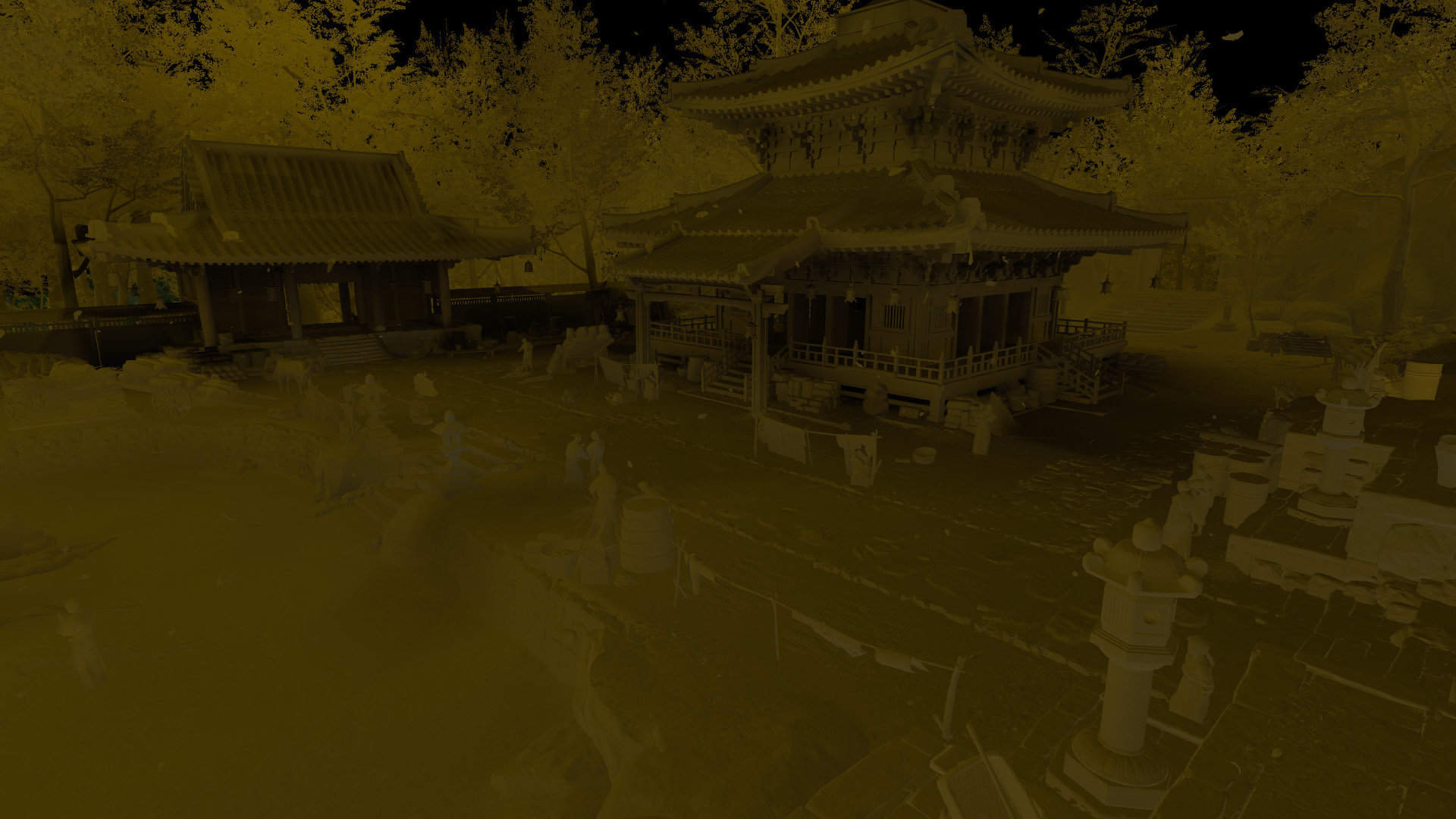

• Bilateral filter can be used to maintain image detail while reducing overall contrast

• Naïve bilateral filters are expensive
• The Bilateral Grid algorithm (Chen et al., 2007) allows efficient computation
  • Allows aggressive downsampling
    • We used 64 W x 32 H x 64 D (log luminance)
  • Naturally fits alongside luminance histogram generation
  • Overhead was ~250 us on PS4 at 1080p

• Algorithm:
  • Populate grid with homogeneous log-luminance values \((w_iV_i, w_i)\)
  • Initial weight for each sample based on linear Z weights
    • Each sample contributes to two nearest Z slices
    • Weighting in X & Y not necessary due to blurring
  • Apply Gaussian blur to grid
    • Wide blur in X & Y, smaller in Z (or can omit)
  • Bilaterally filtered value for a pixel obtained by trilinearly sampling grid and normalizing result

Detail-Preserving Contrast Adjustment

• \(I_i\): Input image log luminance
• \(I_o\): Output log luminance
• \(B\): Bilaterally filtered log luminance
• \(M\): Midpoint log luminance
• \(c\): Contrast scale
• \(d\): Detail strength

Ringing and Haloing Artifacts

• Bilaterally blurring smooth gradients can result in ringing
  • E.g., clouds, filtered shadows, specular highlights
• Can be reduced with larger luminance buckets (or wider Z blur)
  • Tends to increase halos

Eliminating Ringing Artifacts

• Blend between bilateral filter and very wide 2D Gaussian
  • We used 40% bilateral, 60% 2D Gaussian
• 2D Gaussian blur must be wide enough to avoid noticeable haloing
  • We used a radius 13 Gaussian blur on 64x32 image
  • Upsampled to 256x128 using bicubic B-spline filtering
    • Avoids bilinear artifacts
    • Adds extra blur

• Per-channel tonemapping in the rendering color space clips saturated colors to cyan, magenta, and yellow
• Here we’re just applying the per-channel “Reinhard” operator:

• Color scaled so no component exceeds 1.0

• One solution: desaturate, tonemap, invert desaturation

• Preserves hue and luminance
• Equivalent to transforming to an expanded gamut
  • Color space quickly gets weird, however
  • Results aren’t perceptually pleasing
• Choose another color space?
  • Tried several: ACES AP0, ACES AP1, Rec.2020, DCI-P3
  • ACES AP1 was the best of these, but still bent reds too much towards yellow
  • Adjusted red primary x coordinate (0.713 \(\Rightarrow\) 0.75)
  • Reduced shift to yellow at sunset without desaturating yellows too much

• Choose another color space?
  • Tried several:
    • ACES2065-1 (AP0)
    • ACEScg (AP1)
    • Rec.2020
    • DCI-P3\( \)

• Choose another color space?
  • Tried several:
    • ACES2065-1 (AP0)
    • ACEScg (AP1)
    • Rec.2020
    • DCI-P3
  • ACEScg was the best of these, but still bent reds too much towards yellow
  • Adjusted red primary x coordinate (0.713 \(\Rightarrow\) 0.75)

• Working with old-school grading tools
  • Photoshop + 32x32x32 sRGB LUTs
  • Still favored by Art Director
• Needed to be conservative to avoid introducing banding
  • Too limiting in many cases
• Before tossing our existing pipeline and LUTs, we tried adding white balance controls
  • Free, since we can roll it into the Rec.709 \(\Rightarrow\) tonemap matrix
  • Worked so well that we didn't need to change our grading approach

• Artist chose the color they wanted white to change to
  • Artists found this more intuitive than typical photographic white balance controls
• Implemented using chromatic adaptation matrix
  • Von Kries method using Bradford LMS space
• Does interesting things to the color space!

• Artist chose the color they wanted white to change to
  • Artists found this more intuitive than typical photographic white balance controls
• Implemented using chromatic adaptation matrix
  • Von Kries method using Bradford LMS space
• Does interesting things to the color space!

• Two challenges when rendering night:
  • Make night feel like night, and not just darker day
  • Increase visibility in dark areas
• Research has been done in this area
  • Dingcai Cao et al., “Rod Contributions to Color Perception: Linear with Rod Contrast”, 2008.
  • Adam G. Kirk, “Tone Mapping for Low-Light Conditions”, 2011
  • Based on measurements done on the human visual system

Human Visual System

• Receptors:
  • Long, medium, short cones (normal color vision)
  • Rods (low-light vision, monochromatic)
• Vision is 3D, not 4D
  • Rods use same neural pathways as cones
• Night vision is not “black & white”
  • Color shift introduced by rods as they take over \(\Rightarrow\) Purkinje Shift

• The Purkinje shift can be modeled as a delta in opponent color space
  • Color space believed to be used by the visual system
• Need a way to convert between HDR scene colors and cone/rod excitations
  • Cone and rod wavelength response curves are available
  • So need scene RGB \(\Rightarrow\) spectrum
  • Brian Smits, “An RGB to Spectrum Conversion for Reflectances”, 2000

• Calculate matrix from RGB to LMSR (using D65 illuminant)

• \(\mathbf{M}\): Matrix to convert from RGB to LMSR
• \(i \in \{L, M, S, R\}\)
• \(j \in \{r, g, b\}\)
• \(\lambda, \Lambda\): Wavelength & range of visible wavelengths
• \(\mathcal{E}_i(\lambda)\): Receptor response curve
• \(\mathcal{I}(\lambda)\): CIE D65 illuminant spectrum (Rec.709 white point)
• \(\mathcal{R}_j(\lambda)\): Rec.709 reflectance spectrum

• Convert from scene color \(\mathbf{c}\) to LMSR response \(\mathbf{q}\):

• Calculate multiplicative gain control \(\mathbf{g}\):

• \(i \in \{L, M, S\}\)
• \(\mathbf{m}_i\): maximal cone sensitivity (\(\mathbf{m} = \left[0.63721, 0.39242, 1.6064\right]\))
• \(\mathbf{k}_i\): rod input strength with \(\mathbf{k}_L = \mathbf{k}_M\)
  • We used \(\mathbf{k}_L = \mathbf{k}_M = 0.2, \mathbf{k}_S = 0.29\)

• For a color \(\mathbf{\hat{q}}\) in LMS space, the opponent space color \(\mathbf{o}\) is given by:



• We can now calculate the incremental effect \(\Delta\mathbf{o}\) that the rods have in opponent color space:

• \(K\): Scaling constant (\(K=45.0\))
• \(S\): Static saturation (\(S=10.0\))
• \(k_3\): Surround strength of opponent signal (\(k_3=0.6\))
• \(r_w\): Ratio of responses for white light (\(r_w=0.139\))
• \(p\): Relative weight of L cones (\(p=0.6189\))

• The RGB color change is then given by:

• \(\mathbf{\hat{M}}\): LMS 3x3 submatrix of \(\mathbf{M}\)
• Shader code is straightforward:

• Sucker Punch rendering programmers:
  • Adrian Bentley
  • Bill Rockenbeck
  • Eric Wohllaib
  • Matthew Pohlmann
  • Tom Low
• The Sucker Punch lighting team: Jeremy Forbes, Rob Simpson, Gaby Soto, and Toby Tobler
• Jason Connell for the many discussions about sky color

• Matthijs De Smedt, Dave Elder, and Roman Margold for their contributions to this work
• Joanna Wang for her assistance with assets for this talk
• Everybody at Sucker Punch for making everything awesome
• Natalya Tatarchuk for organizing this course
• My family for their endless patience, support, and love

1. [Ben14]    Adrian Bentley. Engine postmortem of inFAMOUS: Second Son. Game Developer’s Conference (video at https://www.gdcvault.com/play/1020399/Engine-Postmortem-of-inFAMOUS-Second and slides at https://www.suckerpunch.com/iss-engine-gdc2014/), 2014.
2. [BN08]    Eric Bruneton and Fabrice Neyret. Precomputed atmospheric scattering. In Special Issue: Proceedings of the 19th Eurographics Symposium on Rendering 2008, Computer Graphics Forum. Wiley, 2008.
3. [CK07]    Mark Colbert and Jařosláv Krivanek. GPU-based importance sampling. In Hubert Nguyen, editor, GPU Gems 3, chapter 20. Addison-Wesley Professional, 1st edition, 2007.
4. [CPD07]    Jiawen Chen, Sylvain Paris, and Frédo Durand. Real-time edge-aware image processing with the bilateral grid. ACM Trans. Graph., 26(3):103–es, July 2007.
5. [CPSZ08]    D. Cao, J. Pokorny, V. C. Smith, and A. J. Zele. Rod contributions to color perception: linear with rod contrast. Vision Res, 48(26):2586–2592, Nov 2008.
6. [Cup12]    Robert Cupisz. Light probe interpolation using tetrahedral tessellations. Game Developer’s Conference, 2012.
7. [DD02]    Frédo Durand and Julie Dorsey. Fast bilateral filtering for the display of high-dynamic-range images. ACM Trans. Graph., 21(3):257–266, July 2002.
8. [DFD+15]   Haarm-Pieter Duiker, Alexander Forsythe, Scott Dyer, Ray Feeney, Will McCown, Jim Houston, Andy Maltz, and Doug Walker. ACEScg: A common color encoding for visual effects applications. In Proceedings of the 2015 Symposium on Digital Production, DigiPro ’15, page 53, New York, NY, USA, 2015. Association for Computing Machinery.
9. [Dro17a]    Michal Drobot. Improved culling for tiled and clustered rendering. SIGGRAPH 2017 Advances in Real-Time Rendering in Games Course (slides available at http://advances.realtimerendering.com/s2017/2017_Sig_Improved_Culling_final.pdf), 2017.
10. [Dro17b]    Michal Drobot. Rendering of Call of Duty: Infinite Warfare. Digital Dragons (slides available at https://research.activision.com/publications/archives/rendering-of-call-of-dutyinfinite-warfare), 2017.
11. [Ele09]    Oskar Elek. Rendering parametrizable planetary atmospheres with multiple scattering in real-time. https://cgg.mff.cuni.cz/~oskar/projects/CESCG2009/Elek2009.pdf, 2009.

12. [Hil16]    Sébastien Hillaire. Physically based sky, atmosphere and cloud rendering in frostbite. SIGGRAPH 2016 (slides available at https://blog.selfshadow.com/publications/s2016-shading-course/), 2016.
13. [KO11]    Adam G. Kirk and James F. O’Brien. Perceptually based tone mapping for low-light conditions. In ACM SIGGRAPH 2011 Papers, SIGGRAPH ’11, New York, NY, USA, 2011. Association for Computing Machinery.
14. [Lin17]    Bruce Lindbloom. Chromatic adaptation. http://www.brucelindbloom.com/index.html?Eqn_ChromAdapt.html, 2017.
15. [Nar20]    Krzysztof Narkowicz. GPURealTimeBC6H. https://github.com/knarkowicz/GPURealTimeBC6H, 2020.
16. [PD09]    Sylvain Paris and Frédo Durand. A fast approximation of the bilateral filter using a signal processing approach. Int. J. Comput. Vision, 81(1):24–52, January 2009.
17. [RV11]    P. Ramachandran and G. Varoquaux. Mayavi: 3D Visualization of Scientific Data. Computing in Science & Engineering, 13(2):40–51, 2011.
18. [Sch15]    Andrew Schneider. The real-time volumetric cloudscapes of horizon: Zero dawn. SIGGRAPH 2015 (slides available at https://advances.realtimerendering.com/s2015/), 2015.
19. [Sch18]    Christian Schüler. Followup to atmospheric scattering—part 1: Overview. http://www.thetenthplanet.de/archives/4519, 2018.
20. [SH05]    Christian Sigg and Markus Hadwiger. Fast third-order texture filtering. In Matt Pharr, editor, GPU Gems 2, chapter 20. Addison-Wesley Professional, 1st edition, 2005.
21. [Slo08]    Peter-Pike Sloan. Stupid spherical harmonics (SH) tricks. Game Developer’s Conference (also available at https://ppsloan.org/publications/), 2008.
22. [Slo17]    Peter-Pike Sloan. Deringing spherical harmonics. In SIGGRAPH Asia 2017 Technical Briefs, SA ’17, New York, NY, USA, 2017. Association for Computing Machinery.
23. [Smi99]    Brian Smits. An RGB-to-spectrum conversion for reflectances. J. Graph. Tools, 4(4):11–22, December 1999.
24. [Wro14]    Bartlomiej Wronski. Volumetric fog: Unified, compute shader based solution to atmospheric scattering. SIGGRAPH 2014 (slides available at https://bartwronski.com/publications/), 2014.

25. [Wro15]    Bartlomiej Wronski. White balance and physically based rendering pipelines: Part 1 – introduction. https://bartwronski.com/2015/10/14/white-balance-and-physically-based-rendering-pipelines-part-1-introduction/, 2015.
26. [Wro16]    Bartlomiej Wronski. Localized tonemapping – is global exposure and global tonemapping operator enough for video games? https://bartwronski.com/2016/08/29/localized-tonemapping/, 2016.
27. [Yus13]    Egor Yusov. Outdoor light scattering sample update. https://software.intel.com/content/www/us/en/develop/blogs/otdoor-light-scattering-sample-update.html, 2013.

Text
