Course Description



Modern video games employ a variety of sophisticated algorithms to produce groundbreaking 3D rendering pushing the visual boundaries and interactive experience of rich environments. This course brings state-of-the-art and production-proven rendering techniques for fast, interactive rendering of complex and engaging virtual worlds of video games.



This year the course includes speakers from the makers of several innovative games and game engines, such as Sucker Punch Productions, Epic Games, Activision, EA | SEED and Unity Technologies. The course will cover a variety of topics relevant to the practitioners of real-time rendering in games and other real-time 3D applications. The topics will cover diverse subjects such as real-time global illumination, atmospheric rendering and dynamic time of day management, advances in physically-based rendering, novel skylight model, improvements for spatial upscaling, and several approaches for handling large geometric complexities in real-time scenarios.



This is the course to attend if you are in the game development industry or want to learn the latest and greatest techniques in the real-time rendering domain!



Previous years’ Advances course slides: go here



Syllabus

Advances in Real-Time Rendering in Games: Part I

Tuesday, 10 August 2021 9 am - 12 pm PDT |  Virtual Conference

Advances in Real-Time Rendering in Games: Part II

Wednesday, 11 August 2021 9 am - 12 pm PDT |  Virtual Conference



Prerequisites



Working knowledge of modern real-time graphics APIs like DirectX or Vulkan or Metal and a solid basis in commonly used graphics algorithms. Familiarity with the concepts of programmable shading and shading languages. Familiarity with shipping gaming consoles hardware and software capabilities is a plus but not required.

Intended Audience



Technical practitioners and developers of graphics engines for visualization, games, or effects rendering who are interested in interactive rendering.

Advances in Real-Time Rendering in Games: Part I

Tuesday, 10 August 2021 9 am - 12 pm PDT |  Virtual Conference



9:00 am PDT
Welcome and Introduction
Natalya Tatarchuk (Unity Technologies)

9:15 am PDT
Improved Spatial Upscaling through FidelityFX Super Resolution for Real-Time Game Engines
Timothy Lottes (Unity Technologies)
Kleber Garcia (Unity Technologies)

9:40 am PDT
Experimenting with Concurrent Binary Trees for Large Scale Terrain Rendering

Thomas Deliot (Unity Technologies)
Jonathan Dupuy (Unity Technologies)
Kees Rijnen (Unity Technologies)
Xiaoling Yao (Unity Technologies)

10:10 am PDT
A Deep Dive into Nanite Virtualized Geometry

Brian Karis (Epic Games)

Rune Stubbe (Epic Games)

Graham Wihlidal (Epic Games)

11:20 am PDT

Large-Scale Global Illumination at Activision
Ari Silvennoinen (Activision Publishing)



12:15 am PDT

Part I Closing Remarks

Natalya Tatarchuk (Unity Technologies)



12:30 pm PDT

Live Q&A

All Speakers



Advances in Real-Time Rendering in Games: Part II

Wednesday, 11 August 2021 9 am - 12 pm PDT |  Virtual Conference



9:00 am PDT
Welcome to Part II
Natalya Tatarchuk (Unity Technologies)



9:10 am PDT
Real-Time Samurai Cinema: Lighting, Atmosphere, and Tone mapping in Ghost of Tsushima
Jasmin Patry (Sucker Punch Productions)

10:10 am PDT

Radiance Caching for Real-time Global Illumination
Daniel Wright (Epic Games)

10:45 am PDT
Global Illumination Based on Surfels
Henrik Halen (SEED at Electronic Arts),
Andreas Brinck (Ripple Effect Studios at Electronic Arts),
Kyle Hayward (Frostbite at Electronic Arts),
Xiangshun Bei (Ripple Effect Studios at Electronic Arts)

11:35 am PDT
Part II Closing Remarks
Natalya Tatarchuk (Unity Technologies)

12:00 pm PDT
Live Q&A
All Speakers





Course Organizer

Natalya Tatarchuk (@mirror2mask) is a graphics engineer and a rendering enthusiast at heart, currently focusing on driving the state-of-the-art rendering technology and graphics performance for the Unity engine as a Distinguished Technical Fellow and VP, AAA and Graphics Innovation, and, prior to that, led the Graphics team at Unity. Before that she was a AAA games developer, working on innovative cross-platform rendering engine and game graphics for Bungie’s Destiny franchise, as well the Halo series, such as Halo: ODST and Halo: Reach, and AMD Graphics Products Group where she pushed parallel computing boundaries investigating advanced real-time graphics techniques, and graphics hardware design and APIs. Natalya has been encouraging sharing in the games graphics community for several decades, largely by organizing a popular series of courses such as Advances in Real-time Rendering and Open Problems in Real-Time Rendering at SIGGRAPH, and convincing people to speak there. It seems to be working.




Improved Spatial Upscaling through FidelityFX Super Resolution for Real-Time Game Engines

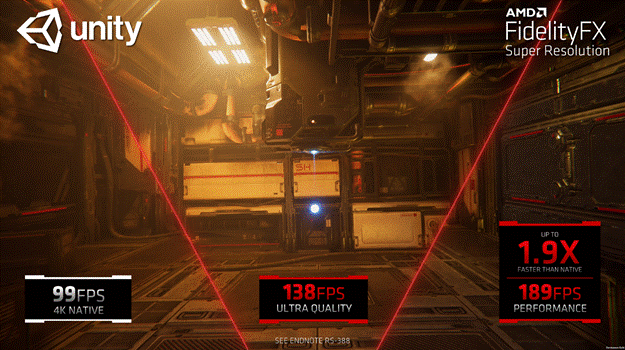

Abstract: A two-part talk, illustrated with diagrams, images, and performance numbers. First part dives into the details and inner workings of AMD's FSR1 scaling algorithm. With a focus on teaching the optimization principles used in its design, and to leave the viewer with some creative thoughts on image processing. Second part covers integration into a modern physically-based deferred and forward rendering pipeline.




Bios:

Timothy Lottes specializes in GPU algorithms and optimization with a background in photography. Currently focusing on new graphics technology at Unity as part of the Graphics Innovation Group. Prior work included authoring FidelityFX shaders like CAS and LPM at AMD, working on TAA and mobile post processing at Epic, and authoring FXAA/TXAA at NVIDIA.

Kleber Garcia has a M. Sc. in Computer Science from the Florida Institute of Technology. He led the rendering team for the Madden franchise during the first drop of Xbox One and PS4. He later joined the Frostbite rendering team in Stockholm where he implemented shadow systems, character material and lighting models, and post process effects. He architected and led the development of an open world GPU probe system currently shipping in Battlefield 6 and Need for Speed HEAT. Kleber has joined the frontlines at Unity Technologies where he has delivered the DLSS integration. He is an avid coffee drinker, foodie, and has a passion for all things GPU and work pranks.



Materials (Updated August 10th, 2021):  Slides (PPTX - 23 MB, PDF 3.5 MB)



Experimenting With Concurrent Binary Trees for Large-scale Terrain Rendering

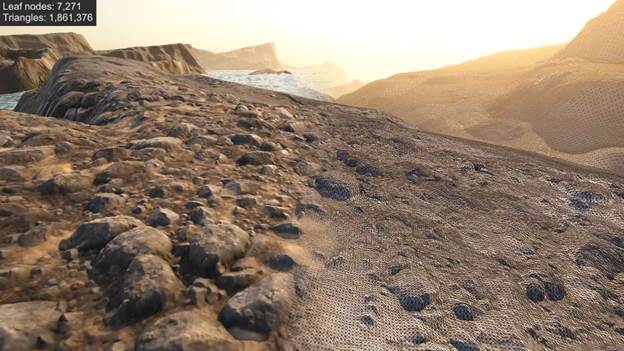

Abstract: In this talk, we share results of our novel technique using concurrent binary trees for large-scale terrain rendering. First, we will review the foundations of concurrent binary trees and provide intuition about their benefits for computing adaptive tessellations for large-scale terrain geometries. Next, the presentation will share the results of the original 2020 paper, followed by the deep dive into latest efforts to integrate the original technique into the Unity game engine. The speakers will share further optimizations found over the original implementation and showcase early integration results.




Bios:

Thomas Deliot is a senior research engineer working at Unity Technologies. His work focuses on computer graphics topics and improving real-time rendering of 3D content, by bringing new papers into rendering engines and bridging the gap from research to production. This includes GPU/parallel programming, post-processing, level-of-detail, materials, lighting and machine learning.



Jonathan Dupuy is a senior research scientist working at Unity Technologies. His research interests are primarily oriented towards high quality real-time rendering. This encompasses a wide range of topics including antialiasing, level-of-detail, analytic models for both materials and lighting, and GPU/parallel programming.



Kees Rijnen is an engineering manager working at Unity Technologies. His work focuses on helping his team research and develop new environment technologies and workflows.



Xiaoling Yao is a senior graphics programmer working at Unity Technologies. His work mainly focuses on improving the terrain system, integrating with new artist workflows and adding graphics features like instancing and virtual texturing.







Materials (Updated August 10th, 2021):  Slides (PDF 5 MB)



A Deep Dive into Nanite Virtualized Geometry

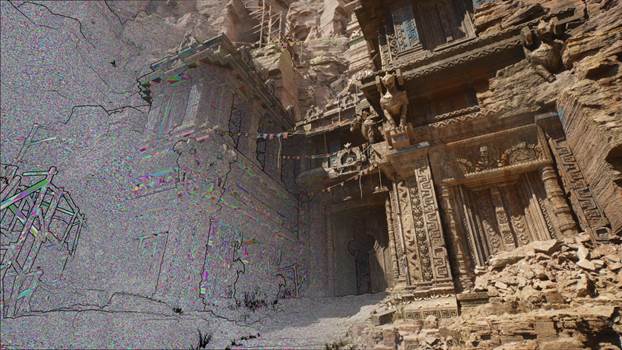

Abstract: Nanite, Unreal Engine 5's new virtual geometry system, enables the rendering of trillion triangle scenes at real-time framerates. This lecture will take a deep dive into how Nanite works, from mesh import all the way to final rendered pixels. We will explain how the mesh-based data structure is built, streamed, decompressed, culled, rasterized, and finally shaded.




Bios:

Brian Karis is an Engineering Fellow in graphics at Epic Games. Most recently he has led the development of Nanite for UE5. He is most known for work on physically based shading and temporal anti-aliasing although has touched most areas of real-time computer graphics throughout his career. Prior to Epic he worked at Human Head Studios.

Rune Stubbe is a Principal Rendering Programmer at Epic Games, where he focuses on Nanite development and optimization. He has previously worked on rendering technology at IO Interactive and Unity. Rune has also been active in the demoscene (as Mentor/TBC), where he has contributed widely used compression tools and several award-winning releases.

Graham Wihlidal is a Principal Rendering Programmer at Epic Games, primarily working on Nanite and other UE5 initiatives. Previously, Graham worked at Electronic Arts (SEED, Frostbite, BioWare), implementing and supporting technology used in many hit games like Battlefield, Dragon Age: Inquisition, Plants vs. Zombies, FIFA, Star Wars: Battlefront, and others. While at BioWare, Graham shipped numerous titles including the Mass Effect and Dragon Age trilogies, and Star Wars: The Old Republic. Graham is also a published author and has presented at several conferences.



Materials (Updated: August 10th, 2021):  Slides (PDF, 16 MB)





Large-Scale Global Illumination at Activision

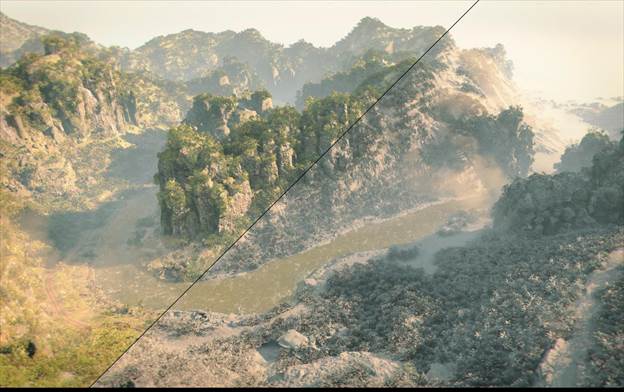

Abstract: : In this talk, we’ll describe the key techniques behind the large-scale global illumination system in Activision. We present a new precomputed lighting compression technique that enables high-performance and seamless reconstruction directly from the compressed lighting data. In addition, we’ll discuss visibility-based sampling of precomputed volumetric lighting and describe a practical method for computing constrained spherical harmonics representations.




Bio:

Ari Silvennoinen is a Fellow Software Engineer at Activision, where he works on graphics technology research and development. Prior to Activision, he obtained a master’s degree from the University of Helsinki and worked on graphics technology at Umbra Software and Remedy Entertainment. His main interests are in global illumination, visibility algorithms and real-time rendering and he has contributions in graphics conferences and journals, including SIGGRAPH, I3D, CGF and EGSR.



Materials (Updated August 10th, 2021):  Slides (PPTX – 237 MB)





Real-Time Samurai Cinema: Lighting, Atmosphere, and Tonemapping in Ghost of Tsushima

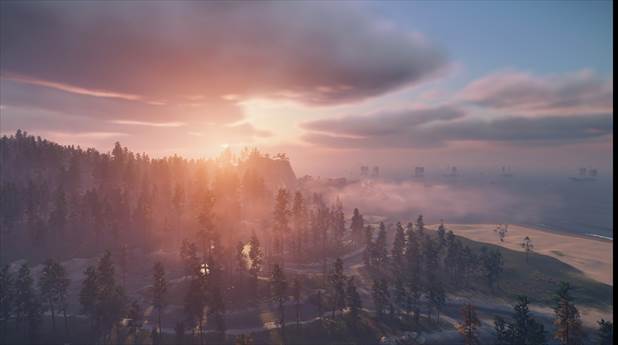

Abstract:  In this talk, we describe some of the graphics techniques used in the production of Ghost of Tsushima. Set in 13th century Japan, Ghost of Tsushima pays homage to classic samurai cinema with dramatic lighting, wind, clouds, haze, and fog, and features a beautiful open-world version of the island of Tsushima during the first Mongol invasion. In this talk, we will cover the diffuse and specular indirect lighting techniques used in the game including methods of computing SH irradiance probes from sky visibility data, including plausible sky and sun/moon bounce light. Next, we present our atmospheric lighting and rendering techniques, including how we lit our haze, clouds, and particles with multiple scattering. We show how to improve the accuracy of Rayleigh scattering to approach that of spectral rendering by using a custom color space for atmospheric lighting calculations. Finally, we discuss some of the tone mapping techniques we used to recreate the samurai cinema experience in-game.




Bio:

Jasmin Patry is a Lead Rendering Engineer at Sucker Punch Productions, where he has worked on Infamous 2, Infamous Second Son, Infamous First Light, and Ghost of Tsushima. Prior to that, he was at Radical Entertainment and contributed to their Hulk, Scarface, and Prototype titles. As a graduate student in the Computer Graphics Lab at the University of Waterloo, he created the popular Linux game Tux Racer, which was named “Best Free Software” by PC Magazine and has downloads numbering in the millions. His interests include physically based rendering, scientific computing, and performance optimization — and anything that makes games look better and run faster.



Materials (Updated August 11th, 2021):  Slides (PDF - 66 MB, HTML)



Radiance Caching for Real-Time Global Illumination

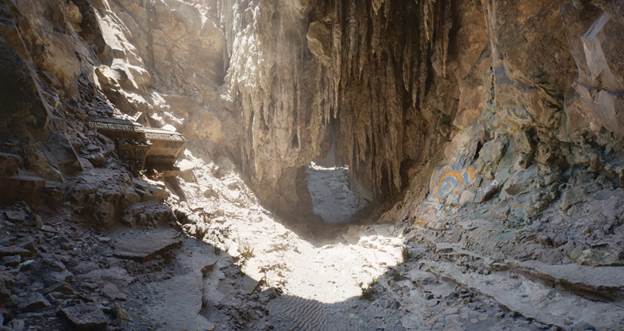

Abstract:  This talk will present an efficient and high-quality Final Gather for fully dynamic Global Illumination with ray tracing, targeted at next generation consoles and shipping in Unreal Engine 5.  Hardware Ray Tracing provides a new and powerful tool for real-time graphics, but current hardware can barely afford 1 ray per pixel for diffuse indirect, while Global Illumination needs hundreds of effective samples for high quality indoor lighting.  Existing approaches that rely on Irradiance Fields cannot scale up in quality, while approaches relying on a Screen Space denoiser have exorbitant costs at high resolutions.  This talk will present practical applications of Radiance Caching along with effective techniques to reduce noise and leaking.




Bio:

Daniel Wright is an Engineering Fellow in graphics at Epic Games, and Technical Director of the 'Lumen' dynamic Global Illumination and Reflections system in Unreal Engine 5.  Prior to that, he developed lighting and shadowing techniques for Unreal Engine 3 and 4 which shipped in Gears of War, Fortnite and a multitude of games licensing Unreal Engine technology.  Daniel's main passion is real-time Global Illumination.


Materials
(Updated August 18th, 2021):  Slides (PPTX – 122 MB)





Global Illumination Based on Surfels

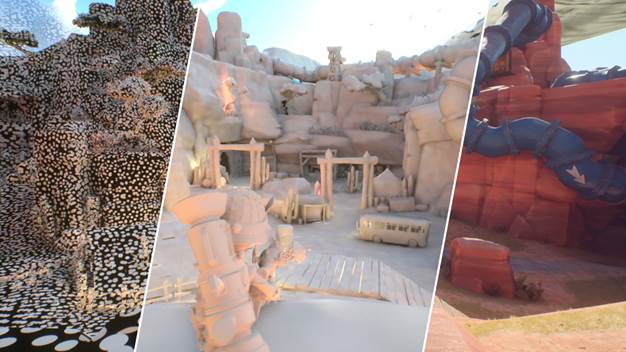

Abstract: Global Illumination Based on Surfels (GIBS) is a solution for calculating indirect diffuse illumination in real-time. The solution combines hardware ray tracing with a discretization of scene geometry to cache and amortize lighting calculations across time and space. It requires no pre-computation, no special meshes, and no special UV sets, freeing artists from tedious and time-consuming processes required by traditional solutions. GIBS enables new possibilities in the runtime, allowing for high fidelity lighting in dynamic environments and for user created content, while accommodating content of arbitrary scale. The algorithm is part of the suite of tools available to developers and teams throughout EA as part of the Frostbite engine.



This talk will detail the GIBS algorithm and how surfels are used to enable real-time ray traced global illumination. We will describe how the scene is discretized into surfels on the fly, and why we think this discretization is a good fit for caching lighting operations. The talk will describe the acceleration structure used to enable efficient access to surfel data, and how this structure allows us to cover environments of arbitrary size, while keeping a predictable performance and memory footprint. We will detail how the algorithm handles dynamic objects, skinned characters, and transparency. Several techniques have been developed to efficiently integrate irradiance on surfels. We will describe our use of ray guiding, ray binning, spatial filters, and how we handle scenes with large numbers of lights.




 Bios:

Henrik Halen joined Electronic Art's SEED research division as a Senior Rendering Engineer in 2017. His work at SEED is focused on real-time graphics algorithms, lighting and characters. Henrik's experience as a rendering engineer prior to joining SEED includes a decade of contributions to franchises such as Gears of War, Battlefield, Medal of Honor and Mirror's Edge.

Andreas Brinck has worked as a rendering engineer for more than two decades. He joined Electronic Arts in 2011 to help start Ghost Games and was later the rendering lead on NFS Rivals, NFS 2015, NFS Payback, and NFS Heat. In 2019 he joined DICE LA where he is currently working on the Battlefield franchise.

Kyle Hayward has worked as a rendering engineer since 2010. He has focused on multiple areas in graphics, from animation compression to global illumination, working on both offline and real-time solutions. He joined EA in 2012, and later became the NBA rendering lead from 2014 onwards. In 2019 he joined Frostbite, where he has been working on global illumination and raytracing.

Xiangshun Bei has been a rendering engineer within DICE LA at EA since 2019, focusing on real-time rendering and ray tracing. He currently works on the Battlefield franchise. Prior to DICE, he contributed to graphics drivers for Adreno GPU on Snapdragon SoC at Qualcomm. He received his master’s degree in computer science from University of Southern California in 2017.



Materials (Updated August 11th, 2021):  Slides (PPTX – 315 MB, PDF – 16 MB)
